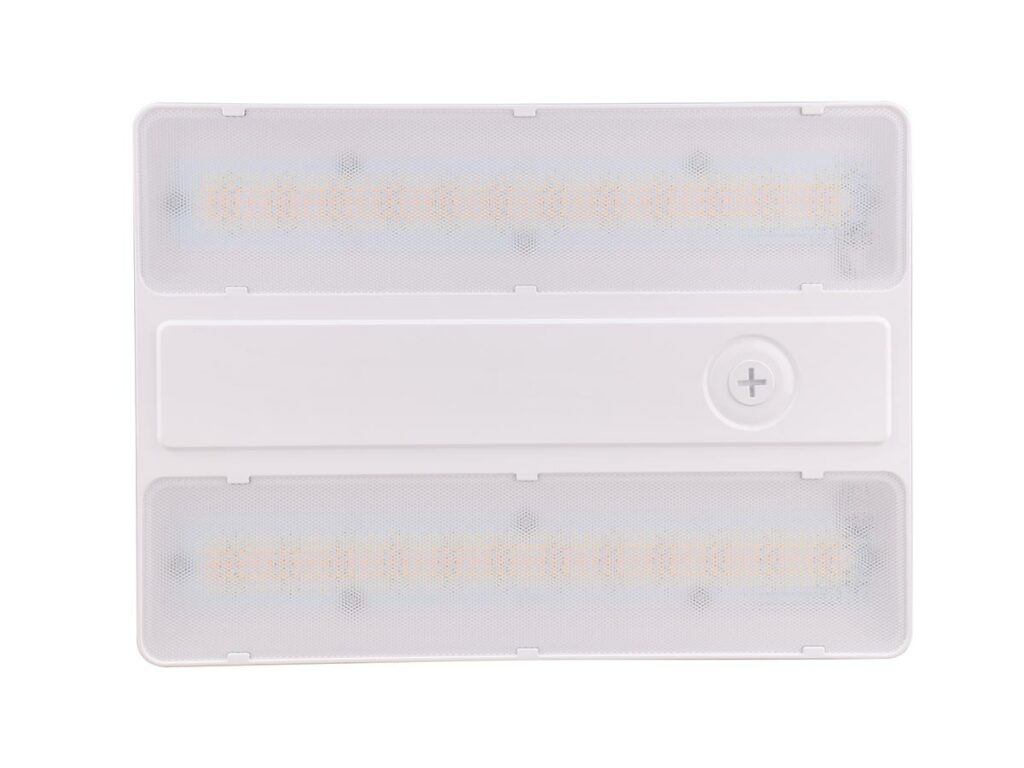

The new Ace LED High Bay (AH1) is a cost-effective solution for high bay lighting. It features a flicker-free, low-glare light output making it comfortable and suitable for all indoor applications.
This high bay features an aluminum die-cast housing and cast aluminum heat sink, achieving great heat dissipation and structural rigidity. The long-life LEDs give you great energy efficiency in all applications.
It has a knockout for optional Plug & Play PIR sensors that can be installed on the field. The ON/OFF/Dim sensor comes pre-programmed for occupancy sensing and it can be re-programmed with a remote controller to adjust daylight sensing, brightness, dimming levels, and timers. Another option is the UltraLink PIR sensor for Bluetooth mesh network controls.
Additional options and accessories include mounting brackets, emergency battery backup, WINSTA connector and wire guards.
Applications: Automotive Lighting, Commercial Lighting, Industrial Lighting, Warehouse Lighting.
Modern Aesthetics
Clean, modern, minimalistic design that creates an all new look for high bay lighting and transforms a work place.
Superior Heat Dissipation
Die-cast aluminum housing and heat sink improve thermal transfer, keeping LEDs cool to increase performance and life.
Plug & Play Controls
Unscrew the receptacle cap and twist the 3-Pin Plug & Play PIR sensor or UltraLink Bluetooth® wireless controls into the socket.
Performance
| Size | Lumen Output | Watts | Efficacy | Part Number |
|---|---|---|---|---|
| SM | 12,150 | 85 | 143 | AH10S-A2-12K-SM-50-80-FR-LV-CRM-10CW-S-10V |
| SM | 15,600 | 110 | 142 | AH10S-A2-15K-SM-50-80-FR-LV-CRM-10CW-S-10V |
| SM | 18,460 | 130 | 142 | AH10S-A2-18K-SM-50-80-FR-LV-CRM-10CW-S-10V |
| MD | 24,255 | 165 | 147 | AH10S-A2-24K-MD-50-80-FR-LV-CRM-10CW-S-10V |
| MD | 30,800 | 220 | 140 | AH10S-A2-30K-MD-50-80-FR-LV-CRM-10CW-S-10V |
| LG | 36,000 | 240 | 150 | AH10S-A2-36K-LG-50-80-FR-LV-CRM-10CW-S-10V |
| LG | 40,710 | 295 | 138 | AH10S-A2-40K-LG-50-80-FR-LV-CRM-10CW-S-10V |
| LG | 48,000 | 320 | 150 | AH10S-A2-48K-LG-50-80-FR-LV-CRM-10CW-S-10V |
| XL | 71,000 | 500 | 142 | AH10S-A2-71K-XL-50-80-FR-LV-CRM-10CW-S-10V |
Technical Specs
- Housing: Aluminum die-cast.
- Wireway Cover: Steel.
- Heat Sink: Cast aluminum.
- Wire Guards: Field installed wire guards available, upgrades to IK07.
- Power Input: 120-277V (50/60Hz).
- Power Factor: Greater than 0.9.
- Total Harmonic Distortion: Less than 20%.
- Flicker: Less than 0.3% (flicker-free).
- Surge Protection: 6kV.
- Emergency Battery Backup: EMB produces ~2,200 lumens for a minimum of 90 minutes. EMB has 16 watts output. It can be ordered as an option (factory installed) or as an accessory (field installed).
- Environment: Dry/Damp, for interior applications (IP20).
- Ambient Range Operation: -30°C up to 50°C (-22°F up to 122°F).
- CCT: 5000K standard, 3500K and 4000K available as a special order with extended lead time .
- CRI: 80+ standard.
- Lens: Frosted.
- Suspension Mounting: Fixture is cable ready (CRM). Includes (2) 3 ft. chains and V-clips (standard). Other suspension mounting options available (see accessories).
- Pendant Mounting (Stem): 3/4” conduit stem mounting requires purchase of mounting bracket (see accessories).
- Dimming: 0-10V standard. Dimming range 100% to Off.
- Occupancy Sensors: Plug & Play field installed PIR occupancy sensor, On/Off/Dim.
- UltraLink Bluetooth® Controls: Advanced wireless controls available.
- Standard: 5-year product warranty.
- cUL.
- UL 1598.
- RoHS compliant.
- DesignLights™ Consortium Premium.
