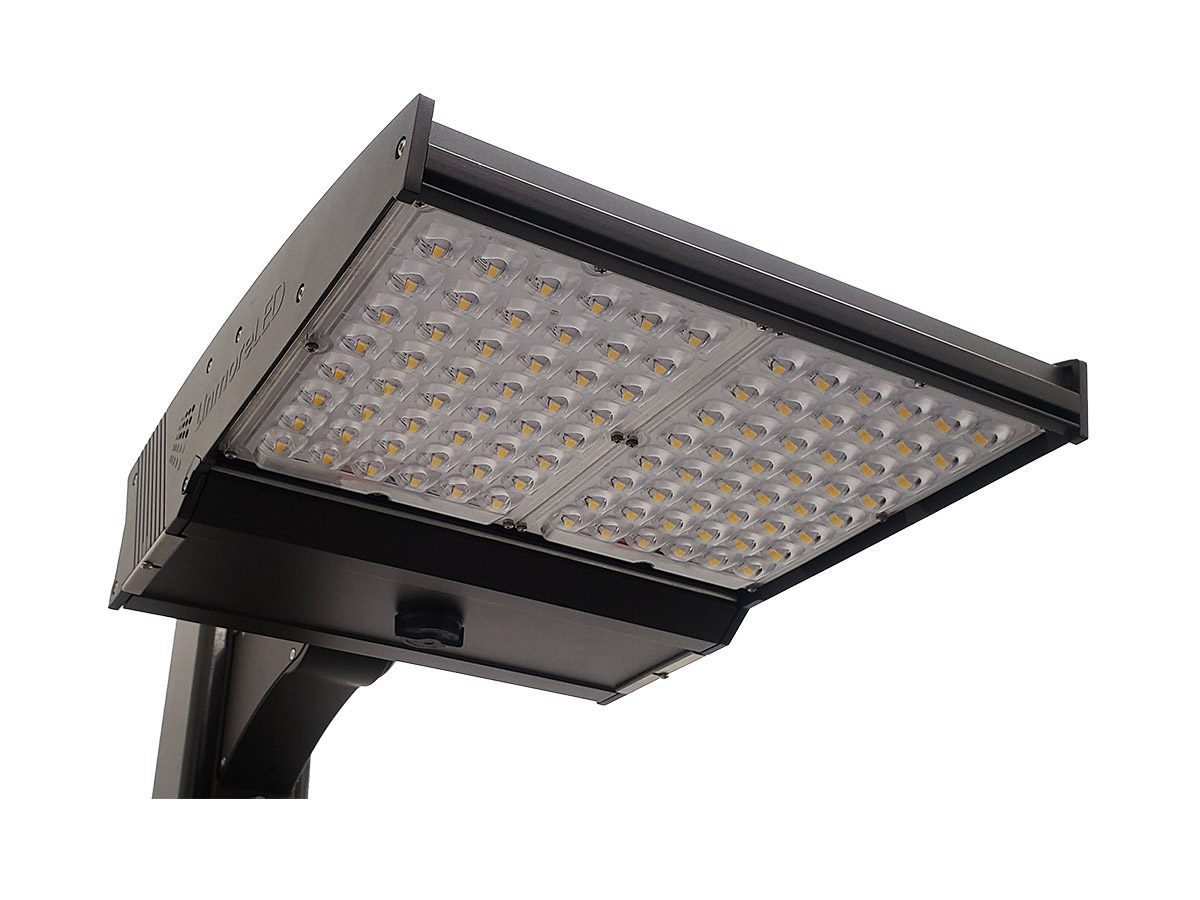

The Site Lighter Area Light (SL2) delivers an exceptional blend of performance, efficiency, and sleek design. Unlike conventional cast or welded housings, the SL2 features a precision-engineered extruded aluminum body, maximizing thermal management for superior longevity and performance.
Available with a versatile selection of HiOptiX™ lenses tailored to each application, SL2 area light fixtures deliver precise light distribution, exceptional efficiency, and uniformity, maximizing performance and energy savings.
Its EZ-Connect™ receptacle provides the option to add motion sensors, photocells and UltraLink Bluetooth controls to the fixture any time after installation with a Twist and Lock System.
Built for durability, the Site Lighter ensures years of reliable, energy-efficient operation. For exterior lighting that prioritizes power, savings, and aesthetics, the Linmore Site Lighter is the ultimate choice.
Applications: Automotive Lighting, Outdoor Lighting.
Guaranteed Performance
Performance of the light fixture is guaranteed for 10 years, including lumen output (L70), color temperature, and LED driver.
HiOptiX™ Lens
Proprietary HiOptiX™ lens technology delivers light precisely where needed for superior illumination efficiency and uniformity.
EZ-Connect™ Receptacle
The simplest and fastest way to add sensors and UltraLink wireless controls at any time in the field. Twist Lock system, no tools or wiring needed.
Interactive Product Overview
HiOptiX™ Lenses
Proprietary lens technology to deliver the light precisely where it’s needed, for superior illumination efficiency and uniformity.

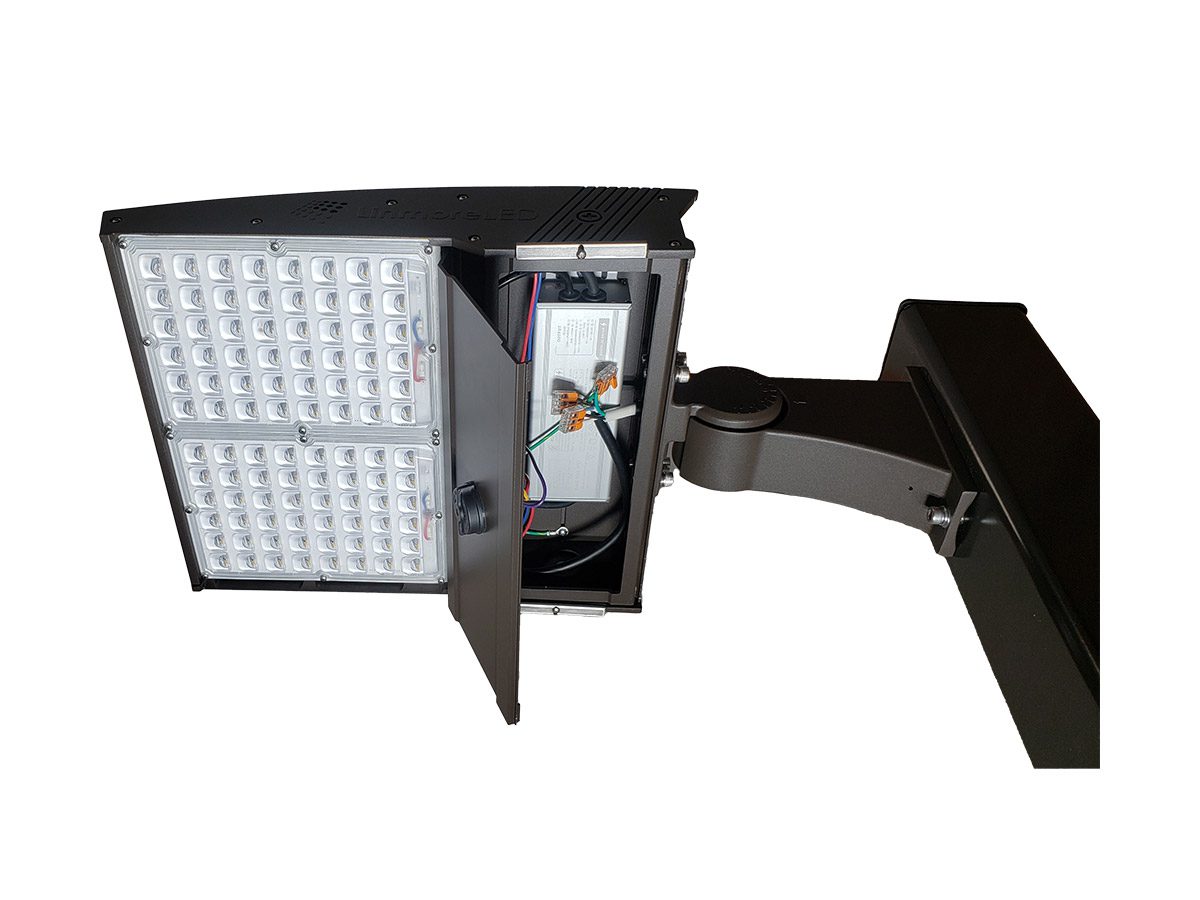

Easy Access to LED Driver
Wireway cover allows easy access to driver
and wiring for quick maintenance and fixture upgrades in the field
EZ-Connect™ Receptacle (EZ10)
The simplest and fastest way to add sensors and wireless controls at any time on the field. Twist and Lock system, no tools or wiring needed.

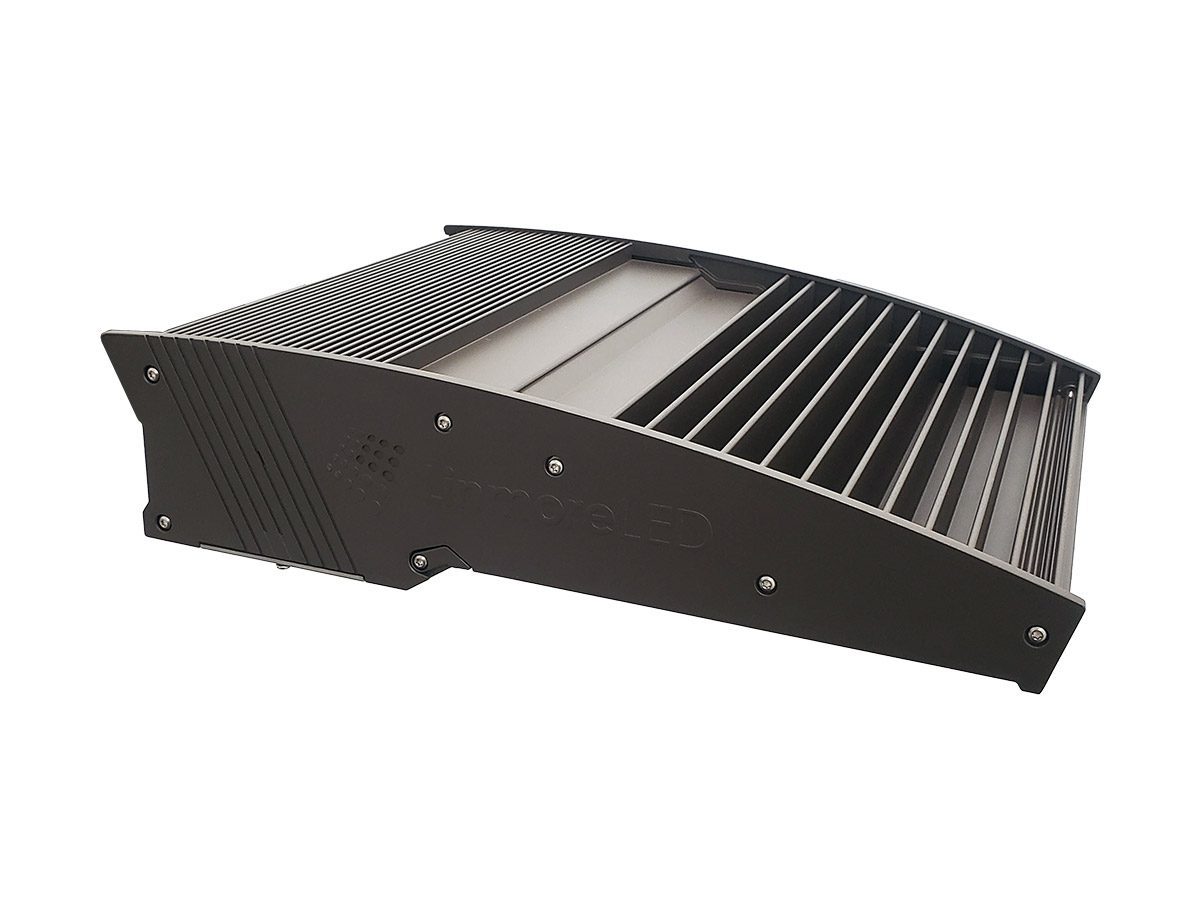

Extruded Aluminum Heat Sink
Improves heat dissipation for longer life
Heavy-Duty Powder Coating
Bronze, white and black standard. Custom color options available.
Bronze, white and black standard. Custom color options available.
Technical Specs
CONSTRUCTION
ELECTRICAL
OPERATION
OPTICS
CONTROLS
WARRANTY
LISTINGS & CERTIFICATIONS
CONSTRUCTION
- Extruded Aluminum Body: Improves heat dissipation for longer life.
- Heavy-Duty Powder Coating: Bronze, white and black standard. Custom color options available.
- Unified Design: Same modern design as Site Lighter Wall Pack (SLW2) for unified aesthetics.
- Power Supply Access: Wireway cover allows easy access to driver and wiring for quick maintenance and fixture upgrades in the field.
- EZ-Connect™ Receptacle: The simplest and fastest way to add sensors and wireless controls at any time on the field. Twist and Lock system, no tools or wiring needed.
ELECTRICAL
- Power Input: 120-277VAC or 277-480VAC, depending on model.
- Power Factor: 0.99 typical.
- Total Harmonic Distortion: <20%.
- Surge Protection: Standard is 6kV for drivers. Additional surge protection available as an option: SRG20 option is 20kV/20kA, SRGXT option passed ANSI C136.2-2018 surge test for extreme level surge conditions (40 strikes at 20kV/20kA for LV and 20kV/18kA for HV).
OPERATION
- Environment: IP65 rated for exterior applications.
- Ambient Range Operation: -40°C up to 55°C (-40°F up to 130°F), except XXL housing size which can withstand up to 50°C (122°F).
OPTICS
- CCT: 4000K and 5000K standard. 3500K, DarkSky options (2200K, 2700K, 3000K) available upon request (extended lead time).
- CRI: >70 standard, other CRI available (extended lead time).

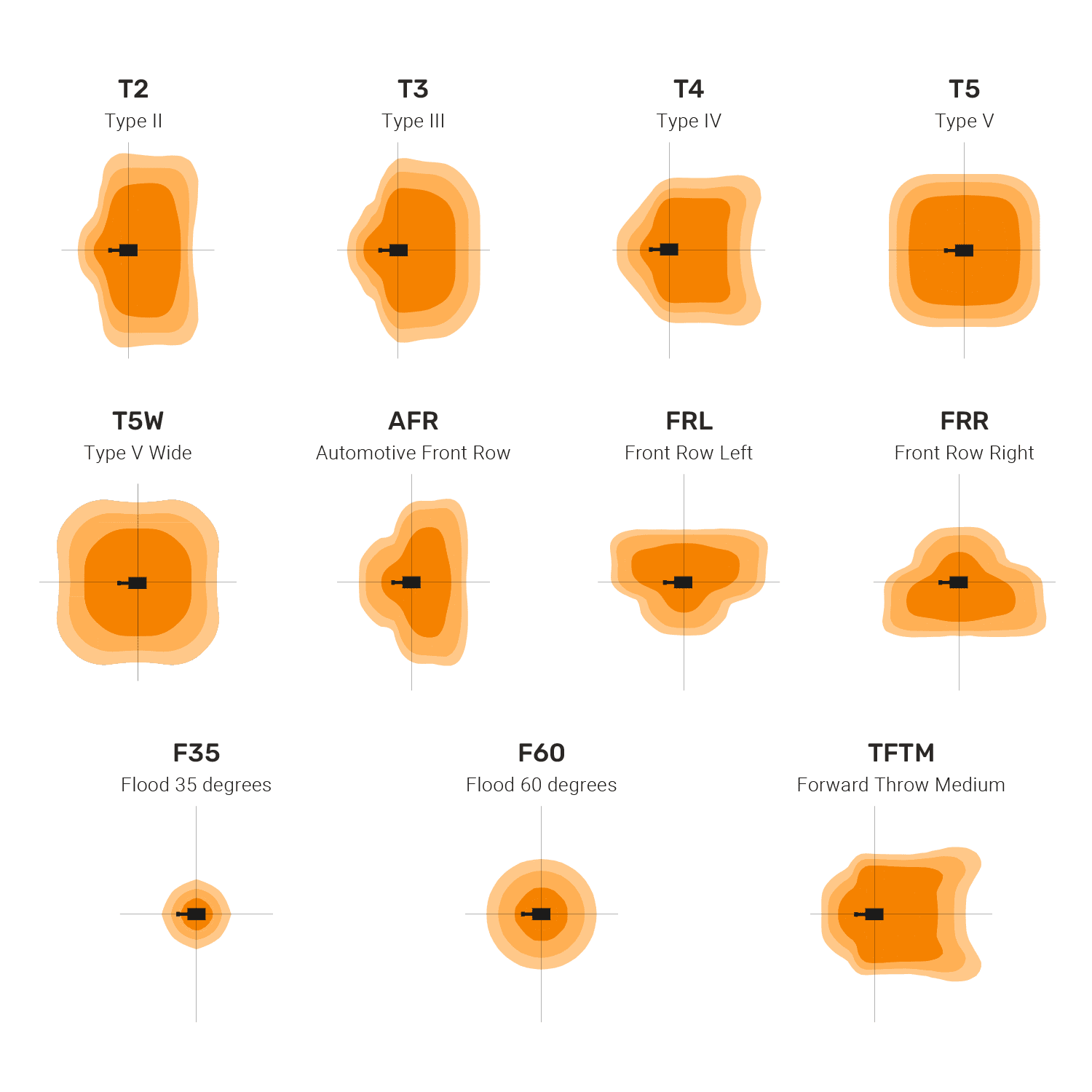

- Lenses: Polycarbonate lens with our proprietary HiOptiX™ technology, designed for superior uniformity and illumination efficiency by delivering the light precisely where it is needed. Optics available:
– Type 2, Type 3, Type 4, Type 5.
– Front Row: Automotive (AFR), Left (FRL), Right (FRR).
– Flood: 35 degrees (F35), 60 degrees (F60).
– Forward Throw Medium (TFTM).
CONTROLS
- Dimming: 0-10V standard. Dimming range 100% to 10% and then Off.
- Photocell Sensor: On/Off based on ambient light. EZ-Connect™ Twist Lock system for field installation.
- Occupancy Sensors: PIR and Microwave occupancy sensors, On/Off/Dim. EZ-Connect™ Twist Lock system for field installation.
- Networked Lighting Controls: UltraLink Wireless Controls with Bluetooth® NLC Mesh technology. EZ-Connect™ Twist Lock system for field installation.
WARRANTY
- 10 Year Performance Warranty: Fixture is guaranteed for 10 years, including lumen maintenance (L70), color temperature, and LED driver. “Defective” is considered if ten percent (10%) or more of the LEDs, per product, are non‐operating LEDs, total lumen depreciation exceeds 30% (L70), or color temperature has shifted more than 500° Kelvin within the warranty period. See terms and conditions at https://linmoreled.com/warranty
LISTINGS & CERTIFICATIONS
- Intertek UL 1598.
- IP65.
- RoHS Compliant.
- BAA/TAA Compliant.
- FCC CFR 47 Part 15.
- ANSI C136.2-2018 Extreme Surge Exposure Level for Roadway and Area Lighting Equipment.
- ANSI C136.31-2023 5G Vibration Rated for Roadway and Area Lighting Equipment.
- DarkSky Compliant.
- DesignLights™ Consortium Premium.
Proprietary HiOptiX™ lens technology delivers light precisely where needed, for superior illumination efficiency and uniformity.
Fixture Performance
Lumen output for each optic
| Part Number | Watts | T2 | T3 | T4 | T5 | AFR | FRL | FRR | F35 | F60 | TFTM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SL2-A1-08K-SM | 56 | 9,133 | 8,288 | 8,934 | 9,390 | 8,992 | 8,934 | 8,918 | 9,291 | 8,371 | 8,868 |
| SL2-A1-12K-SM | 84 | 13,592 | 12,334 | 13,296 | 13,974 | 13,382 | 13,296 | 13,271 | 13,826 | 12,457 | 13,197 |
| SL2-A1-15K-SM | 108 | 16,680 | 15,136 | 16,317 | 17,149 | 16,423 | 16,317 | 16,286 | 16,967 | 15,287 | 16,196 |
| SL2-A1-18K-SM | 133 | 19,872 | 18,033 | 19,440 | 20,431 | 19,566 | 19,440 | 19,404 | 20,215 | 18,213 | 19,295 |
| SL2-A1-21K-MD | 143 | 23,464 | 21,292 | 22,953 | 24,124 | 23,102 | 22,953 | 22,910 | 23,868 | 21,505 | 22,782 |
| SL2-A1-24K-MD | 161 | 26,712 | 24,240 | 26,131 | 27,464 | 26,300 | 26,131 | 26,082 | 27,173 | 24,482 | 25,937 |
| SL2-A1-30K-MD | 209 | 33,277 | 30,197 | 32,552 | 34,213 | 32,764 | 32,552 | 32,492 | 33,851 | 30,499 | 32,311 |
| SL2-A1-32K-MD | 226 | 34,917 | 31,685 | 34,156 | 35,899 | 34,378 | 34,156 | 34,093 | 35,519 | 32,002 | 33,903 |
| SL2-A1-38K-LG | 255 | 42,014 | 38,125 | 41,099 | 43,196 | 41,366 | 41,099 | 41,023 | 42,738 | 38,506 | 40,794 |
| SL2-A1-46K-LG | 322 | 50,919 | 46,206 | 49,810 | 52,351 | 50,134 | 49,810 | 49,718 | 51,797 | 46,668 | 49,440 |
| SL2-A1-52K-LG | 374 | 58,099 | 52,721 | 56,833 | 59,733 | 57,202 | 56,833 | 56,728 | 59,100 | 53,248 | 56,411 |
| SL2-A1-62K-XL | 435 | 68,689 | 62,331 | 67,193 | 70,621 | 67,629 | 67,193 | 67,068 | 69,873 | 62,954 | 66,694 |
| SL2-A1-71K-XL | 510 | 78,997 | 71,685 | 77,276 | 81,219 | 77,778 | 77,276 | 77,133 | 80,359 | 72,402 | 76,703 |
| SL2-A1-105K-XXL | 765 | 117,577 | 106,694 | 115,016 | 120,884 | 115,763 | 115,016 | 114,803 | 119,604 | 107,761 | 114,163 |
Mounting Brackets
RMB

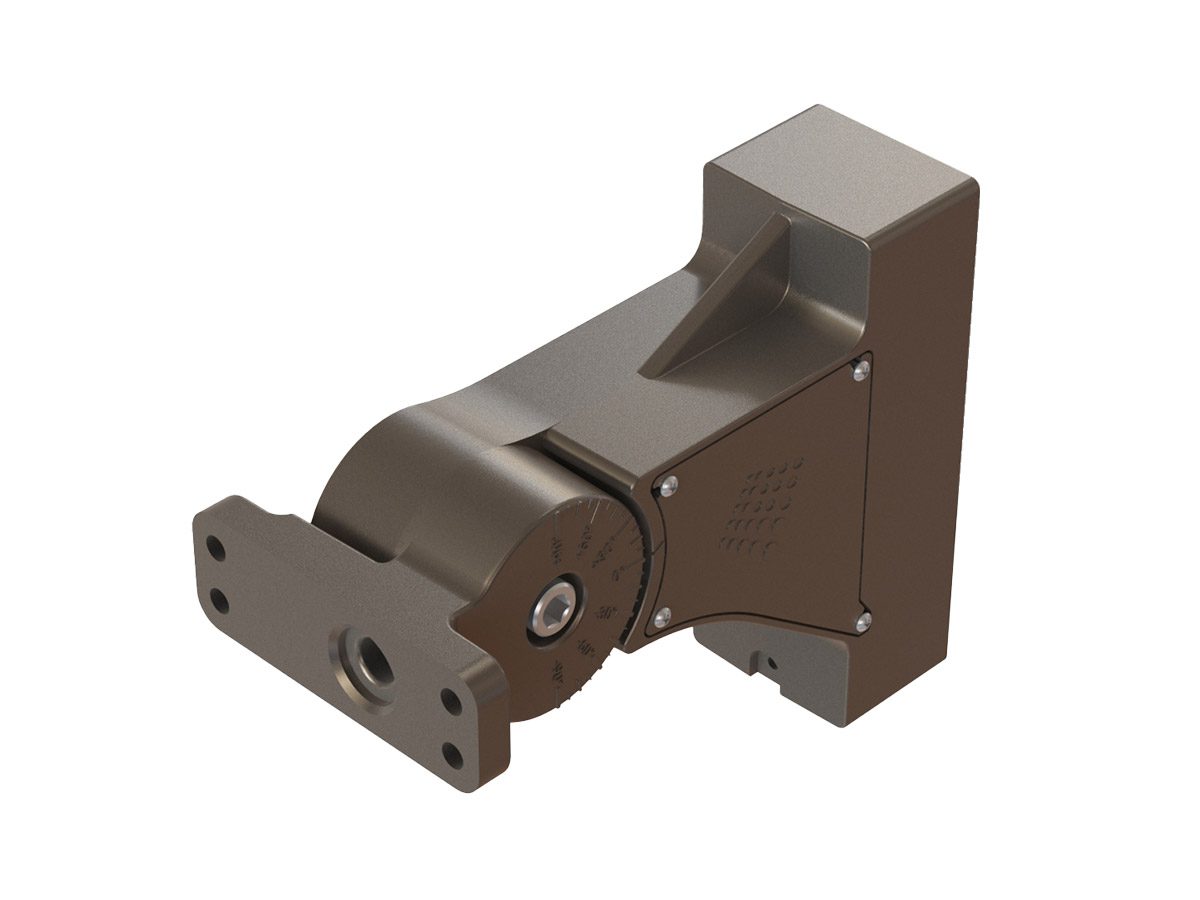

Rapid Mount Bracket
Universal bracket to install SL2 fixtures to round or square poles without having to drill new holes in most cases, cutting installation time in half. Accommodates a single fixture.
SF

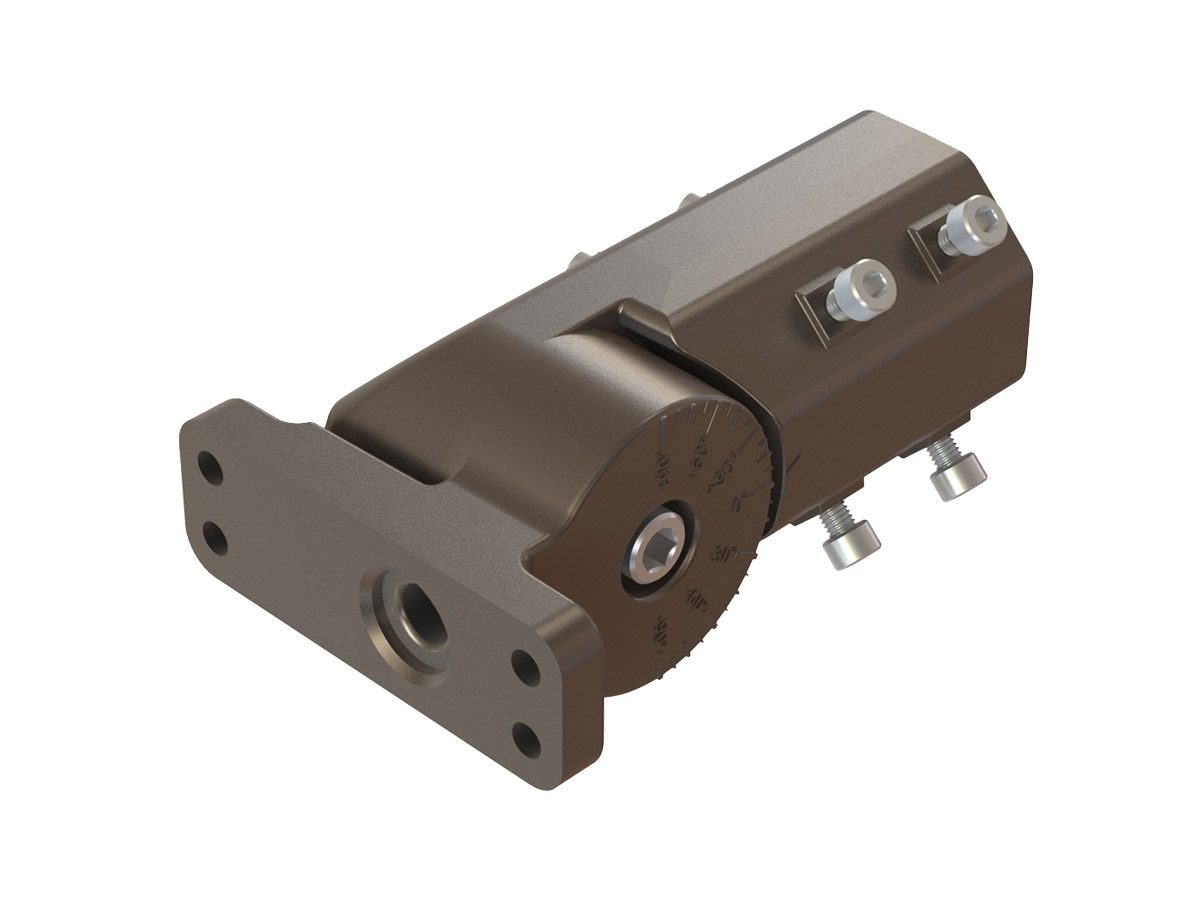

Slip Fitter Bracket
Adapter with adjustable angle for vertical and horizontal applications. Accommodates a single fixture to round pipes with no greater than 2.5” outer diameter.
SA

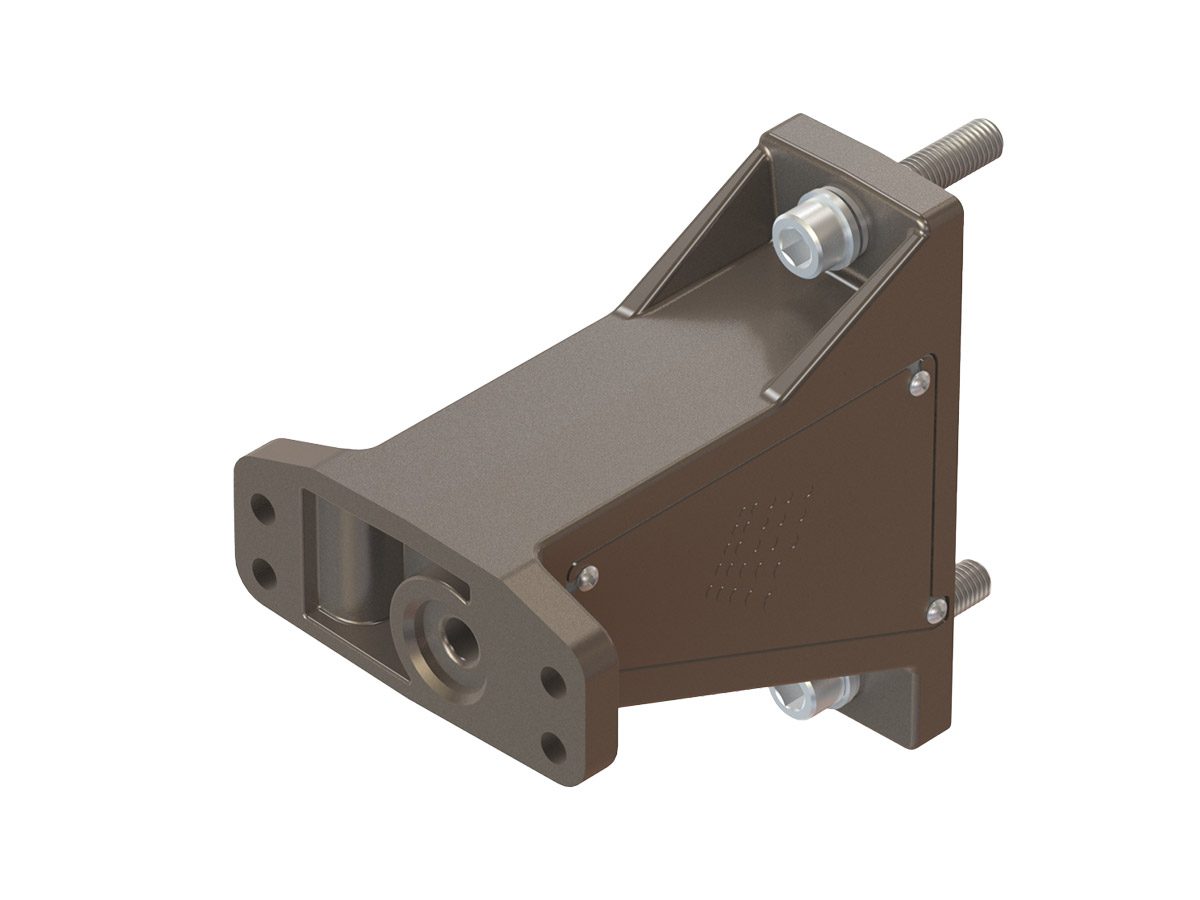

Straight Arm Bracket
For fixed horizontal applications only. Accommodates a single fixture.
TM
Trunnion Mount Bracket
For mounting fixtures to variety of surfaces at different angles. Accommodates a single fixture. The fixture cannot be mounted an an angle greater than 60°.
WM
Wall Mount Box
For mounting fixtures to a standard 4” electrical box or directly to any exterior wall with appropriate fasteners. Accommodates a single fixture. WM is available only for SM and MD sizes.
