The LifeTime LED Linear Strip (LT10S) is engineered to last the life of your building, not just a single lighting cycle.
Available in 4 ft and 8 ft lengths as either a stand-alone fixture or retrofit kit, the LT10S delivers seamless, continuous illumination for commercial and industrial applications with linkable fixture options.
Unlike traditional LED fixtures that require complete tear-down and disposal at end of life, the LifeTime LED Linear Strip stays installed, reducing waste and helping keep fixtures out of landfills.
At the core of the system is the ReLuma® Module, a Plug & Play, replaceable light engine that can be swapped tool-free in under a minute. By integrating the LED engine and electronics into a single replaceable module, the fixture can be renewed without removing or replacing the housing.
Applications: Automotive Lighting, Commercial Lighting, Industrial Lighting, Office Lighting, Parking Garage Lighting, Warehouse Lighting.
Selectable Wattage
Each fixture has a switch with five output power options, allowing to select the desired lumen output and energy consumption.
CCT Adjustable
Simply use the switch directly on the fixture to select the desired color temperature for your space: 3000K, 3500K, 4000K, or 5000K.
EZ-Connect™ Receptacle
The simplest and fastest way to add sensors and UltraLink wireless controls at any time in the field. Snap-in system, no tools or wiring needed.

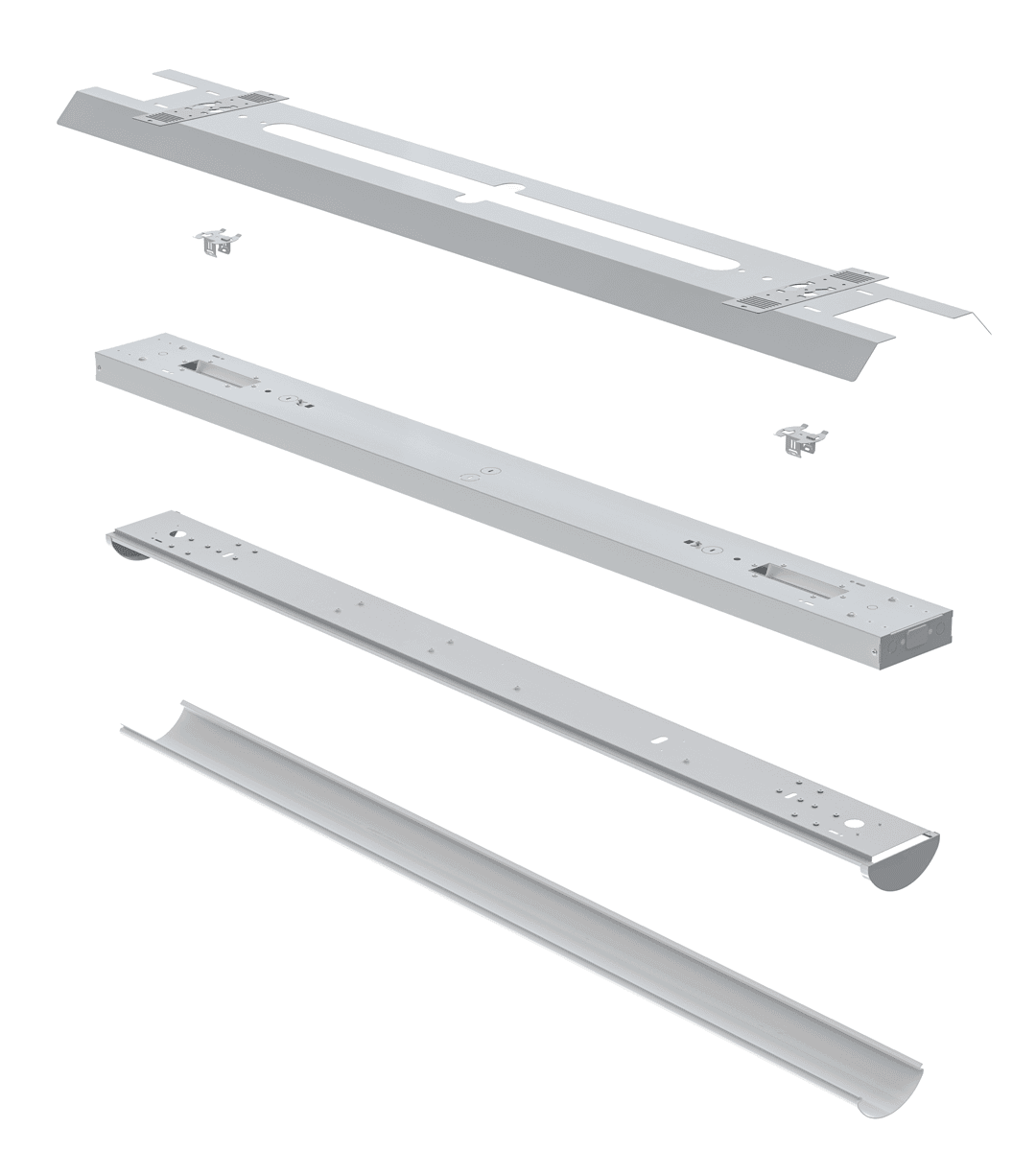

Interactive Product Overview
Reflector (Accessory)
Increases vertical foot candles. Can be used in new installations and retrofits. Required for retrofitting 5.25 existing housings (refer to installation instructions).
Mounting Bracket
Included with the Reflector
Quarter-turn Fastener
Twists into the Mounting Bracket to install the reflector onto fixture
Fixture Housing
Built to stay installed for life

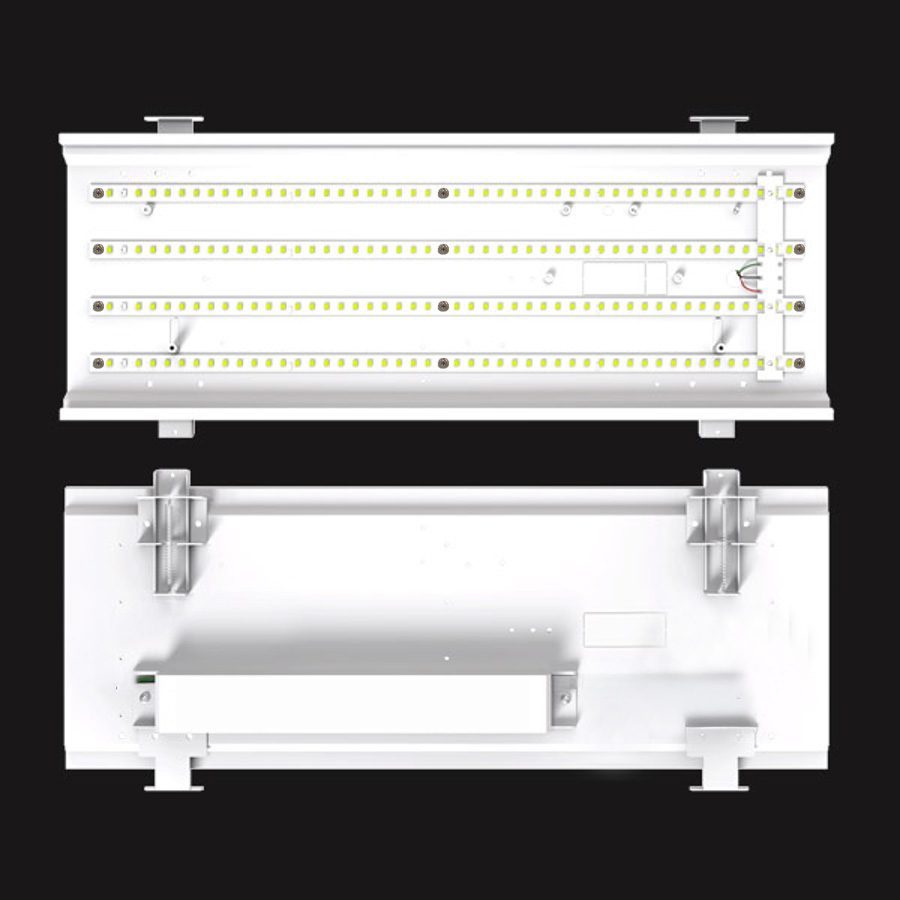

ReLuma® Module
Installs into the Fixture Housing
Lens
Snaps onto the ReLuma® Module
Technical Specs
CONSTRUCTION
ELECTRICAL
OPERATION
OPTICS
MOUNTING
CONTROLS
WARRANTY
LISTINGS & CERTIFICATIONS
CONSTRUCTION
- Housing: Steel.
- Housing Color: White.
- ReLuma® Module: Patented groundbreaking technology. All-in-one Plug & Play replaceable module integrating the LED engine and electronics to renew LifeTime LED Linear Strips in under a minute.
- EZ-Connect™ Receptacle: The simplest and fastest way to add sensors and wireless controls at any time in the field. Snap-in system, no tools or wiring needed.
ELECTRICAL
- Power Input: 120-277V (50/60Hz).
- Power Factor: Greater than 0.9.
- Total Harmonic Distortion: Less than 20%.
- Linkable: Fixtures can be linked via a single electrical connection to deliver seamless, continuous illumination.
- Emergency Battery Backup: EMB has 8 watts output, producing ~1,100 lumens for 90 minutes. Available as an option (factory-installed) or as an accessory (field installed).
OPERATION
- Environment: For interior applications, dust-resistant.
- Ambient Range Operation: -20°C up to 40°C (-4°F up to 104°F).
OPTICS
- CCT: 3000K, 3500K, 4000K, 5000K (selectable via switches).
- CRI: 80+ standard.
- Lens: PC diffuser. Frosted. 110° beam angle.
- Uplight Bar (optional): Selectable output levels of 5%, 10%, or 15% of fixture wattage via DIP switch control.
MOUNTING
- Stand-Alone Fixture: Cable Mount or Surface Mount (standard).
- Retrofit Kit: Used to upgrade traditional fluorescent lamps without removing the whole fixture. Works for both 4.25” and 5.25” wide strip fixtures. Includes mounting brackets.
CONTROLS
- Dimming: 0-10V standard. Dim to Off.
- Occupancy Sensors: PIR sensor, On/Off/Dim. EZ-Connect™ Snap-in system for field installation.
- Networked Lighting Controls: UltraLink and UltraLink+ Wireless Controls with Bluetooth® NLC Mesh technology. EZ-Connect™ Snap-in system for field installation. Other control options available upon request.
WARRANTY
- 5 Year Performance Warranty: Fixture is guaranteed for 5 years, including LEDs and driver. “Defective” is considered if ten percent (10%) or more of the LEDs, per product, are non‐operating LEDs, or color temperature has shifted more than 500° Kelvin within the warranty period. See terms and conditions at https://linmoreled.com/warranty
LISTINGS & CERTIFICATIONS
- ETL listed.
- RoHS Compliant.
- Title 24 Compliant.
- TM66.
ReLumaCycle™ Circular Program
Renew Your Light, Restore Your Investment®
Upon purchase, end users are registered with Linmore to activate their warranty.
At the end of a ReLuma® Module’s service life, the RLM is returned to Linmore for re-manufacturing. Failed components are responsibly recycled and replaced with the latest technology.
Restored RLMs are kept in stock and available for quick shipment to end users.
Built for sustainability, the ReLuma® Modules are remanufactured in the USA and returned to service with upgraded electronics. Every retired component is responsibly recycled, conserving valuable materials and minimizing waste. The ReLuma Module System supports the circular economy, reducing embodied carbon and promoting long-term environmental stewardship.
