ULTRAPIR9

UltraLink PIR Sensor with Photocell (9’)

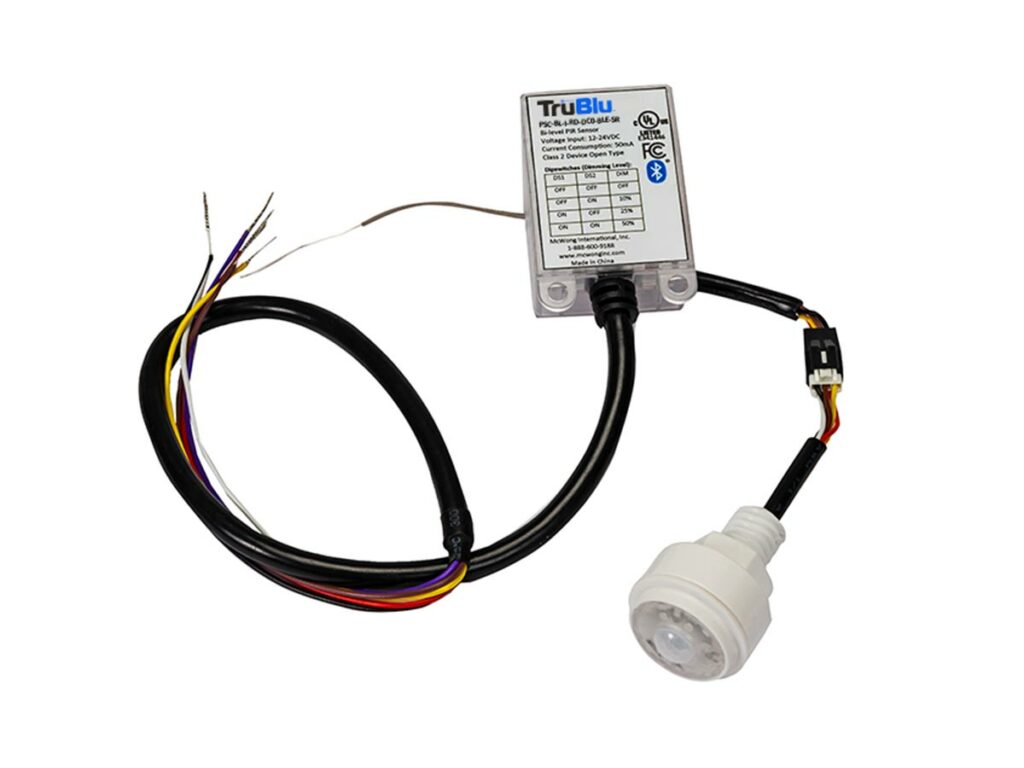

The ULTRAPIR9 is a fixture mount Bluetooth NLC controller with a remote PIR sensor suitable for 9’ mounting heights.

It uses PIR motion detector architecture and passive infrared (PIR) technology for improved detection coverage in indoor applications.

Ideal for fixtures installed in open offices, schools, cafeterias, and corridors to maximize granular energy savings.

It connects to a Bluetooth mesh network and it can be accessed with the UltraLink web portal or iOS app for initial design, setup, and configuration.

ULTRAPIR9 - UltraLink PIR Sensor with Photocell (9’)

Product Information

TECHNICAL SPECS
  • Construction: White polycarbonate.
  • Sensing Technology: Passive infrared (PIR).
  • Input voltage: 12-24 VDC.
  • Current consumption: 50 mA.
  • 0-10V Output: 100 mA.
  • Operating Temperature Range: -30°C to +70°C (-22°F to +158°F).
  • Max Mounting Height: 9 ft (2.7 m).
  • Max Sensor Range: 8 ft (1.8 m) radius.
  • Max Bluetooth Range: 100’ (30.4 m) line of sight.

    Range is highly dependent on the integration of fixtures, environment, and conditions. It is recommended to conduct testing for range accuracy.

FEATURES
  • Bluetooth NLC (Networked Lighting Control).
  • LED motion indicator.
  • Turns lights on automatically when motion is detected and turns lights off automatically after the area is vacated.
  • Programmable settings include time delays and brightness and can be set through the UltraLink iOS app.
  • PIR detection is 360° coverage pattern, best suited for areas with a clear line of sight and good air circulation.
  • Advanced functionality such as energy monitoring, and demand response is available with the optional UltraLink Dashboard.
  • The sensor can operate with a driver that has an auxiliary output (12V).
  • Suitable for indoor use only.
  • Technology partner Silvair.
LISTINGS
  • FCC
  • UL
  • UL 924
  • DLC
  • Bluetooth Declaration ID: D062134
  • Conforms with DLC NLC5 Cybersecurity Standards
