Parking Garage Fixture (PGF)

Parking Garage

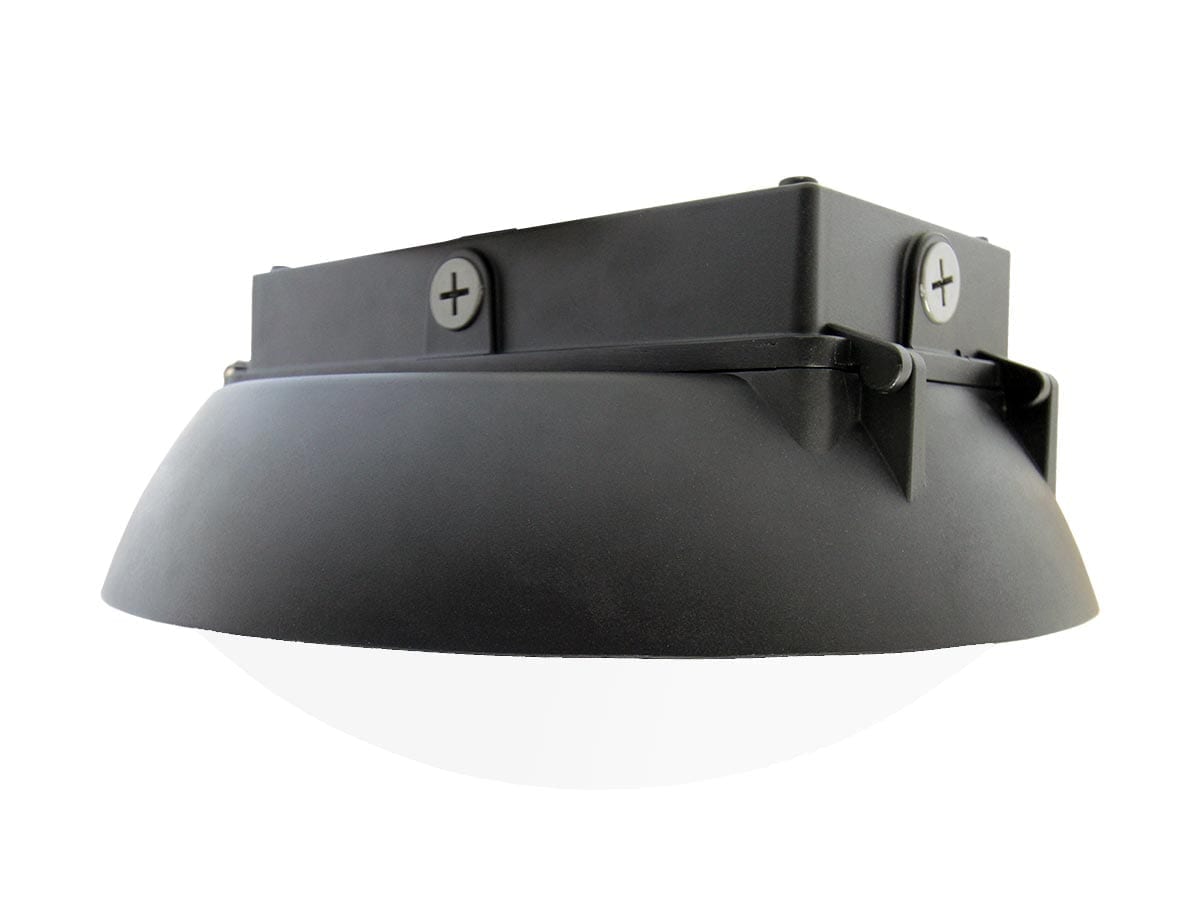

The Parking Garage Fixture (PGF) is a round, modern approach to low level lighting applications like parking garages. The IP65 rated housing is made of aluminum for optimal heat dissipation and hinges open for internal access. The fixture comes with knock-outs on all 4 sides for conduit connections and can be surface or pendant mounted as well.

The lens features a domed, conical design which spreads light incredibly well. High efficacy LEDs provide ample, soft lighting with even distribution and glare reduction. When the objective is to utilize a modern, effective fixture in low applications, the Linmore PGF is the clear choice.

Applications: Automotive Lighting, Outdoor Lighting, Parking Garage Lighting.

Aluminum Construction

The housing made of aluminum provides ample heat dissipation to ensure longer life and higher performance.

Unique High-Quality Lens

Domed, conical design creates a wide distribution of light, ideal for parking garages and applications where fixtures are spaced farther apart.

Multiple Mounting Options

The fixture comes with knock-outs on all 4 sides for conduit connections and can be surface or pendant mounted as well.

Performance

Lumen Output Efficacy Watts Part Number
5,446 133 41 LL-PGF-50K-40W
7,768 125 62 LL-PGF-50K-60W
10,930 133 82 LL-PGF-50K-80W

Technical Specs

  • Housing: IP65 rated housing made of aluminum for optimal heat dissipation.

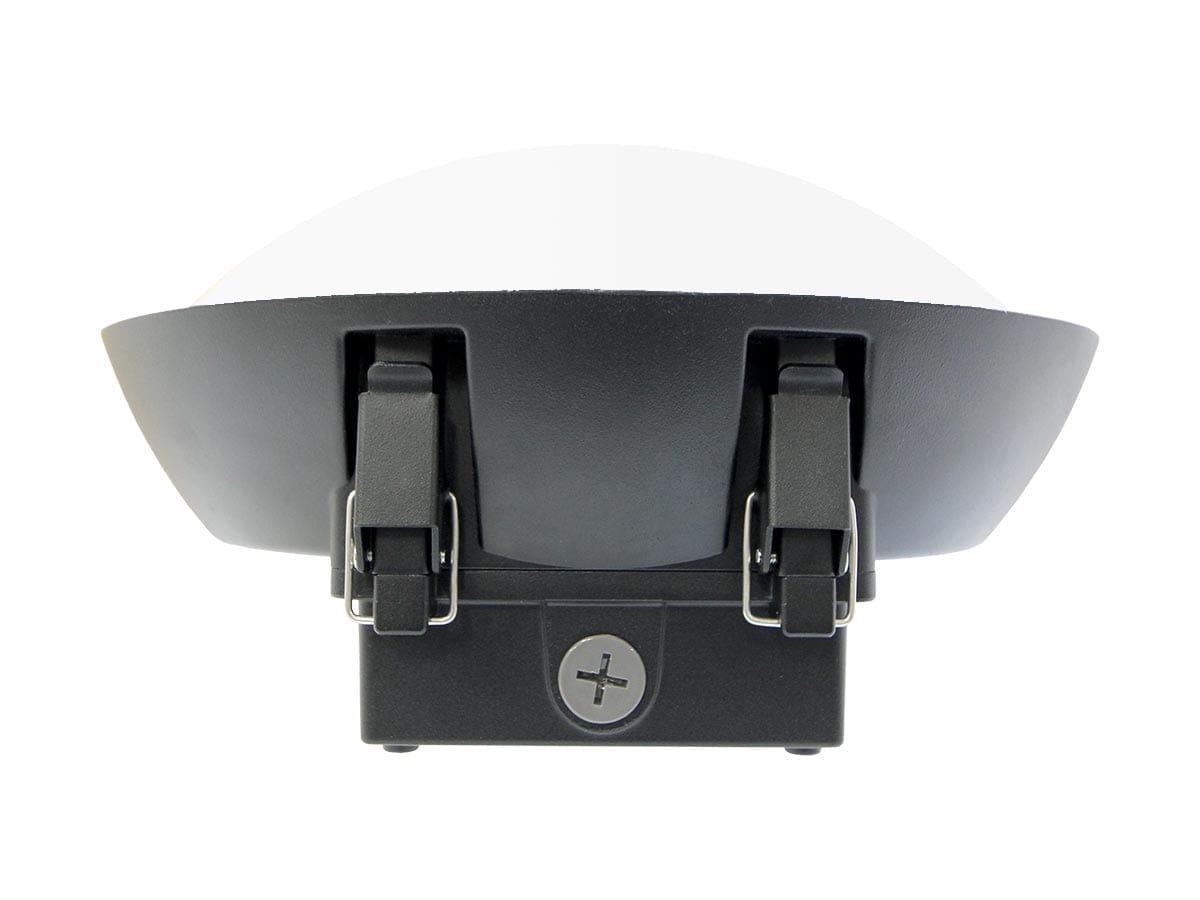

  • Hinges: Open for easy internal access.
  • Knock-outs: Knock-outs on all 4 sides for conduit connections.
  • LEDs: Only high quality LEDs are used to deliver maximum light output and longevity.
  • Power Input: 120-277V (50/60Hz).
  • Power Factor: Greater than 0.9 (0.99 typical).
  • Total Harmonic Distortion: Less than 10%.
  • Environment: IP65 and IK08 rated, ideal for parking garages and canopies.
  • Ambient Range Operation: -40°C up to 50°C (-40°F up to 120°F).
  • CCT: 4000K and 5000K standard, other CCT available (extended lead time).
  • CRI: >80, (84 typical). Other CRI available (extended lead time).

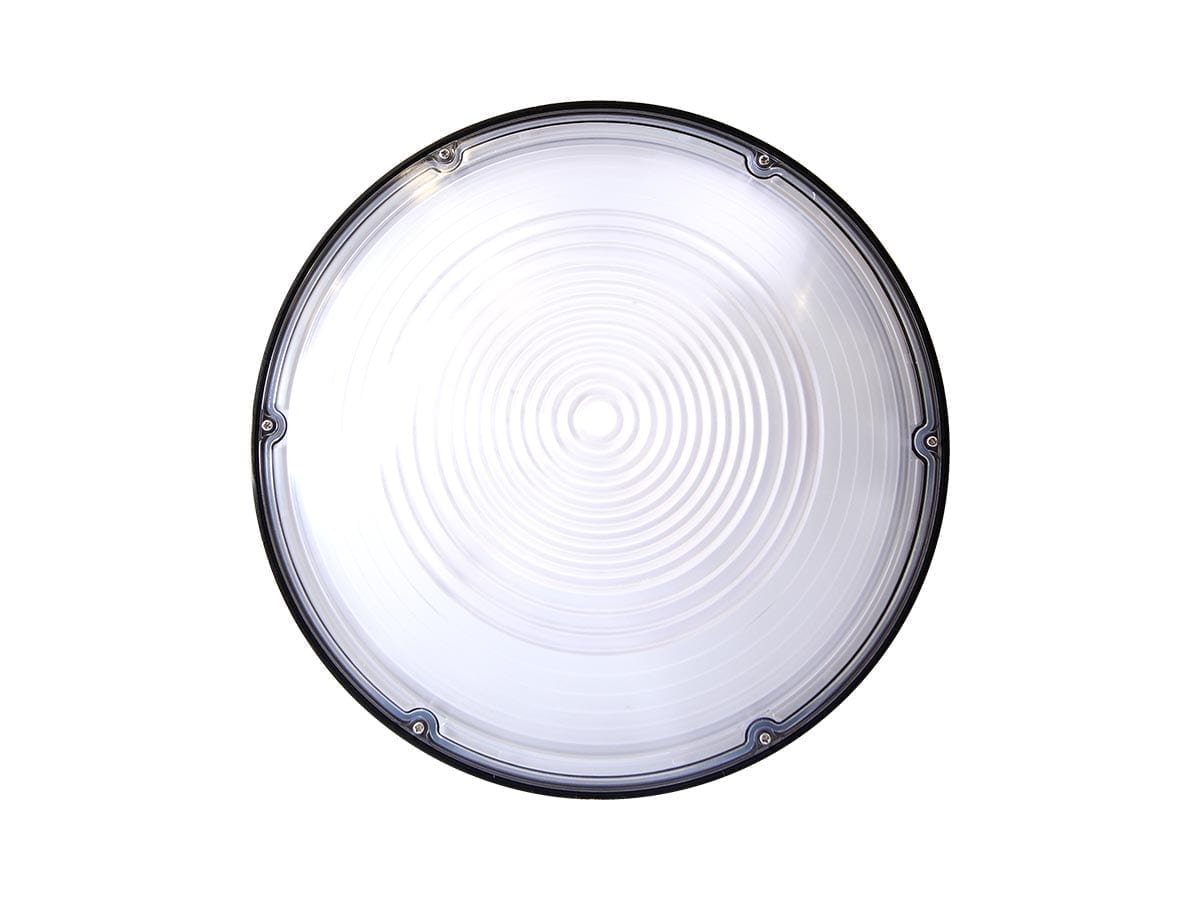

  • Lens: Frosted with a domed, conical design made with a high transmissive plastic to ensure maximum light output. 180° beam angle creates a wide distribution of light.
  • Knock-outs on all 4 sides for conduit connections. Other options include cable suspension, pendant mount, hook mount or J-Box mount.
  • Dimming: 0-10V standard. Dim to OFF.
  • Sensors: Compatible with Enocean switches.
  • Networked Control Options: Compatible with Avi-on networked controls and UltraLink SIG Bluetooth® with Mesh Networked controls.
  • Standard: 5-year product warranty covers fixture and LED driver.
  • ETL listed (UL 1598), CSA 22.2.
  • RoHS compliant.
  • DesignLights™ Consortium Premium.
  • IP65 ​​
  • IK08 ​​
  • EMI: Title 47 CFR 15 Class A, ICES-005. ​​
  • LM-79, LM 80 and TM-21 tests and reports are performed in accordance to IESNA standards, per TM-21​​.
