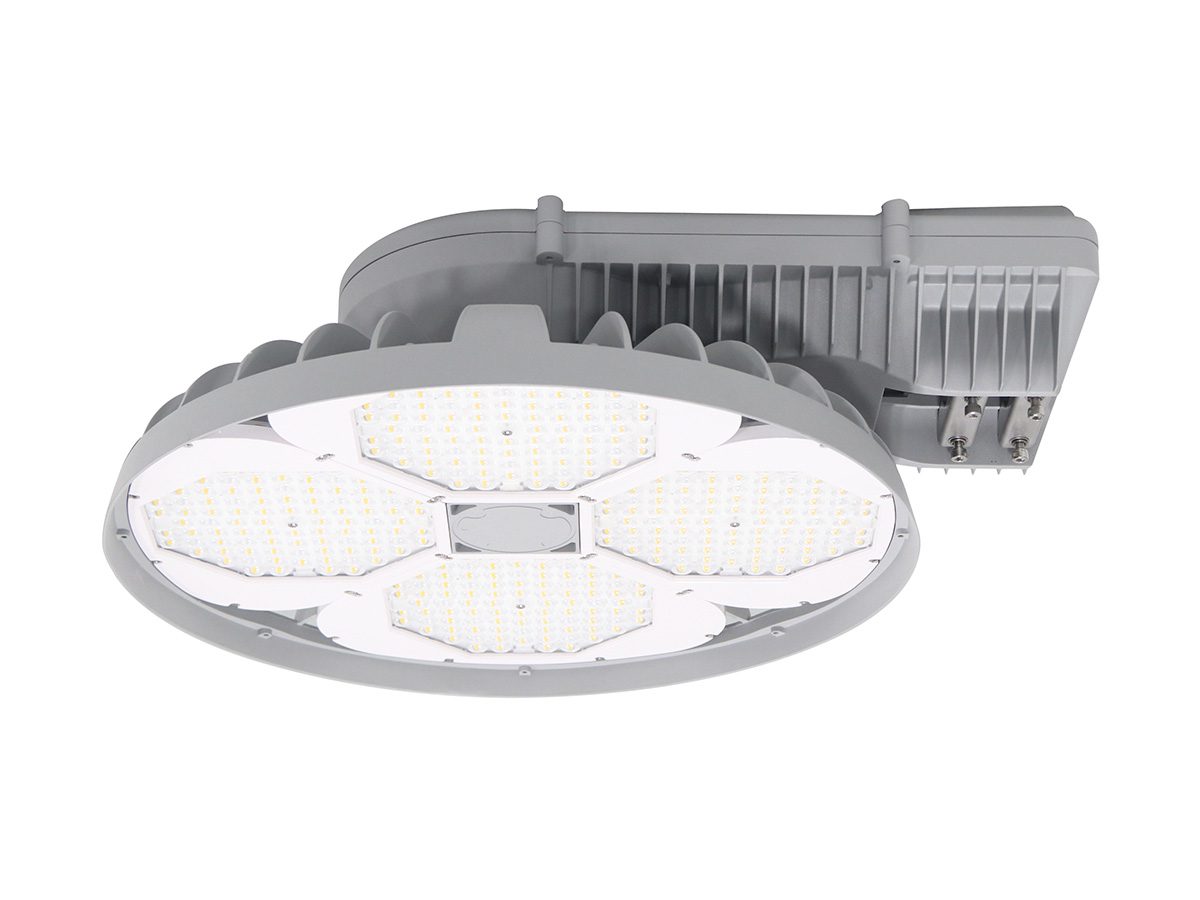

The High Mast fixture (HM1) delivers powerful, reliable illumination for large outdoor environments, with high-output performance ranging from 29,000 to 108,000 lumens to maximize visibility, safety, and operational efficiency.
Built to withstand harsh weather and corrosive conditions, the HM1 features a rugged die-cast aluminum housing, advanced thermal management, and a 3G vibration rating for dependable performance in demanding applications. Precision optical distributions provide uniform coverage with reduced glare and light spill, directing light exactly where it is needed while minimizing maintenance and downtime.
For added flexibility and energy savings, the HM1 includes standard 0–10V dimming and a NEMA receptacle for easy field installation of photocell and wireless control sensors, enabling automated lighting control and future-ready smart functionality.
Applications: Automotive Lighting, Hangar Lighting, Industrial Lighting, Outdoor Lighting, Parking Garage Lighting, Sports Lighting.

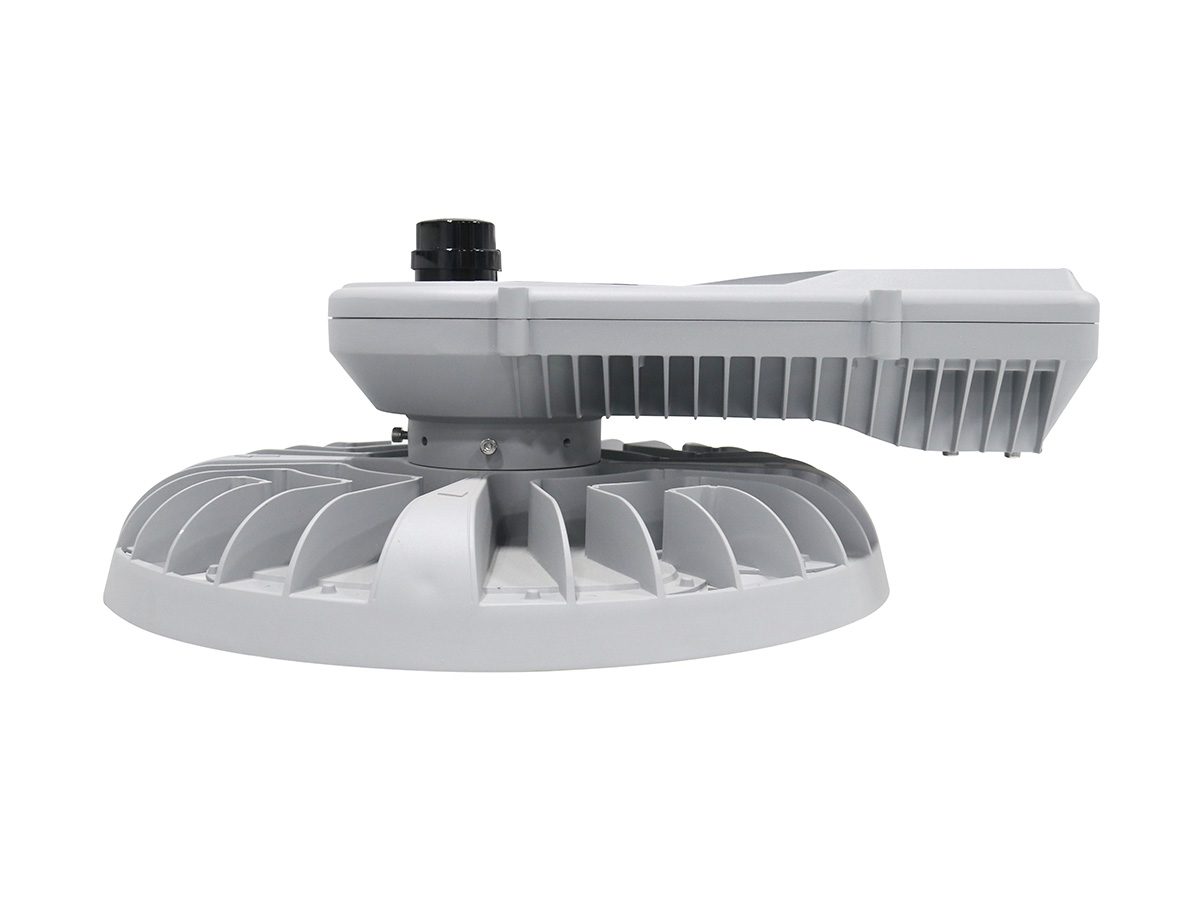

Superior Heat Dissipation
Die-cast aluminum housing and heat sink improve thermal transfer, keeping LEDs cool to increase performance and life.
Wet Location Rated (IP65)
The fixture withstands extreme outdoor weather conditions and it is protected against dust, water, and contaminants.

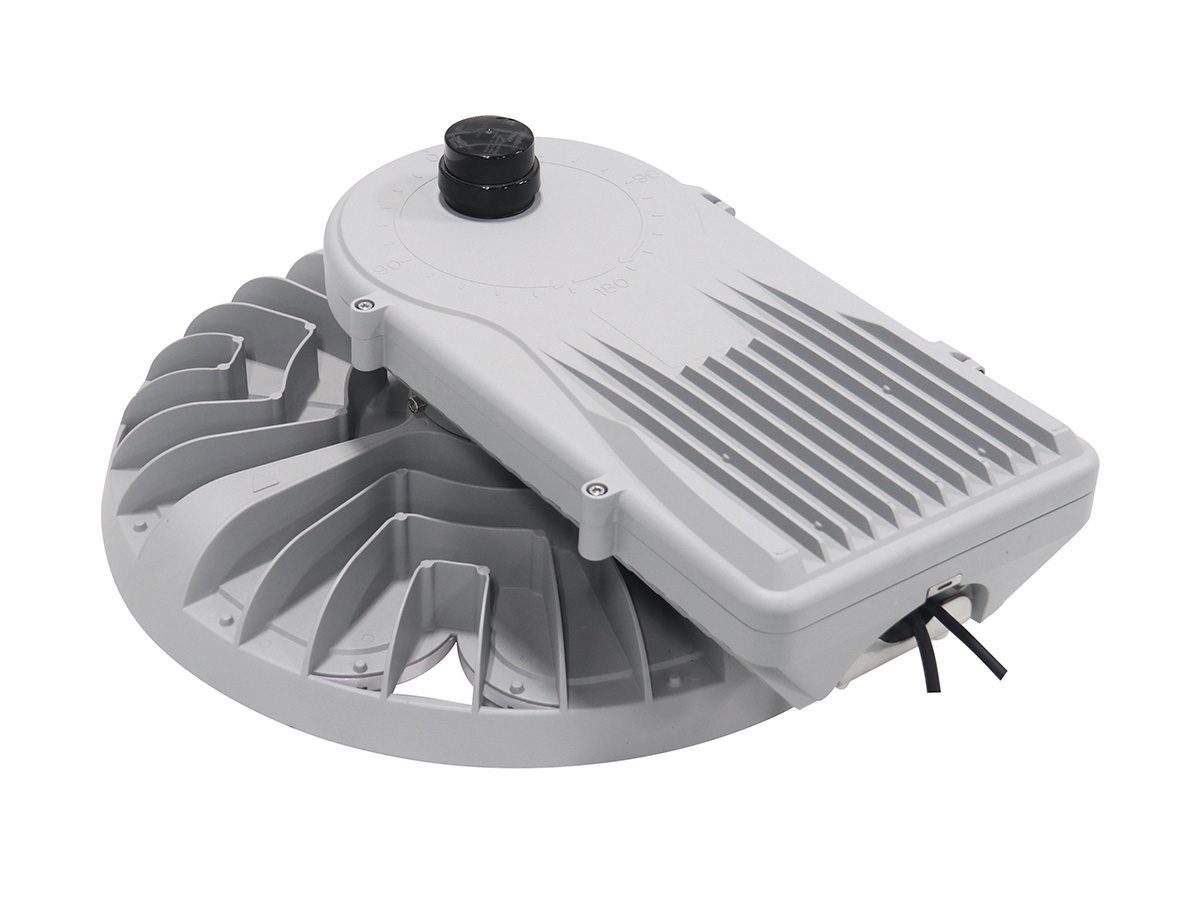

NEMA Receptacle
Add a photocell sensor or an additional surge protector device at any time in the field. Twist Lock system, no tools or wiring needed.
Fixture Performance
| Size | Lumen Output | Watts | Efficacy | Lens | Part Number |
|---|---|---|---|---|---|
| LG | 29,000 | 200 | 145 | N77 | HM10S-A2-29K-LG-50-70-N77-LV-GRY-ISF-10V |
| LG | 43,000 | 300 | 143 | N77 | HM10S-A2-43K-LG-50-70-N77-LV-GRY-ISF-10V |
| LG | 72,000 | 500 | 144 | N77 | HM10S-A2-72K-LG-50-70-N77-LV-GRY-ISF-10V |
| LG | 87,000 | 600 | 145 | N77 | HM10S-A2-87K-LG-50-70-N77-LV-GRY-ISF-10V |
| LG | 108,000 | 750 | 144 | N77 | HM10S-A2-108K-LG-50-70-N77-LV-GRY-ISF-10V |
Technical Specs
CONSTRUCTION
ELECTRICAL
OPERATION
OPTICS
MOUNTING
CONTROLS
WARRANTY
LISTINGS & CERTIFICATIONS
CONSTRUCTION
- Housing: Aluminum die-cast.
- Housing Color: Gray. Other colors available upon request.
- Heat Sink: Cast aluminum.
- Corrosion Resistance: Scribe creepage rating of 8 per ASTM D1654 after 500-hour salt fog exposure (ASTM B117-2019). Test Conditions: Temperature: 23.7°C; Humidity: 56% RH; Saline concentration: 5% NaCl; PH value: 7.0; Salt buckets temperature: 35°C; Pressure buckets temperature: 47°C; Spray volume: 1.5 ml/ 80cm2/h.
ELECTRICAL
- Power Input: 120-277V or 277-480V (50/60Hz).
- Power Factor: Greater than 0.9.
- Total Harmonic Distortion: Less than 20%.
- Surge Protection: 20kV/10kA, standard.
OPERATION
- Environment: Wet location for exterior applications. IP65 rated.
- Ambient Range Operation: -40°C up to 45°C (-40°F up to 113°F).
OPTICS
- CCT: 3000K, 4000K, 4500K, 5000K, or 5700K.
- CRI: 70+ standard.
- Lens: NEMA symmetric and asymmetric distribution patterns available. N77 lens with 155° x 155° beam angle and N75 lens with 150° x 80° beam angle.
- Glare Shields: Available as an accessory. Field installed.
MOUNTING
- Mounting Options: Integrated Slip Fitter (standard).
CONTROLS
- Dimming: 0-10V standard (dimming range 100% to 10%).
- Photocell Sensor: On/Off based on ambient light. Twist Lock NEMA
receptacle for field installation sensors. Requires NEMA3
WARRANTY
- 5 Year Performance Warranty: Fixture is guaranteed for 5 years, including LEDs and driver. “Defective” is considered if ten percent (10%) or more of the LEDs, per product, are non‐operating LEDs, or color temperature has shifted more than 500° Kelvin within the warranty period. See terms and conditions at https://linmoreled.com/warranty
LISTINGS & CERTIFICATIONS
- cUL.
- UL 1598.
- RoHS compliant.
- IP65 rated.
- IK08 rated.
- 3G vibration rated as per ANSI C136.31-2023.
- Compliant with ANSI C82.77:2002 for THD requirements.
- 20kV/10kA surge protection as per ANSI/IEEE C62.41.
