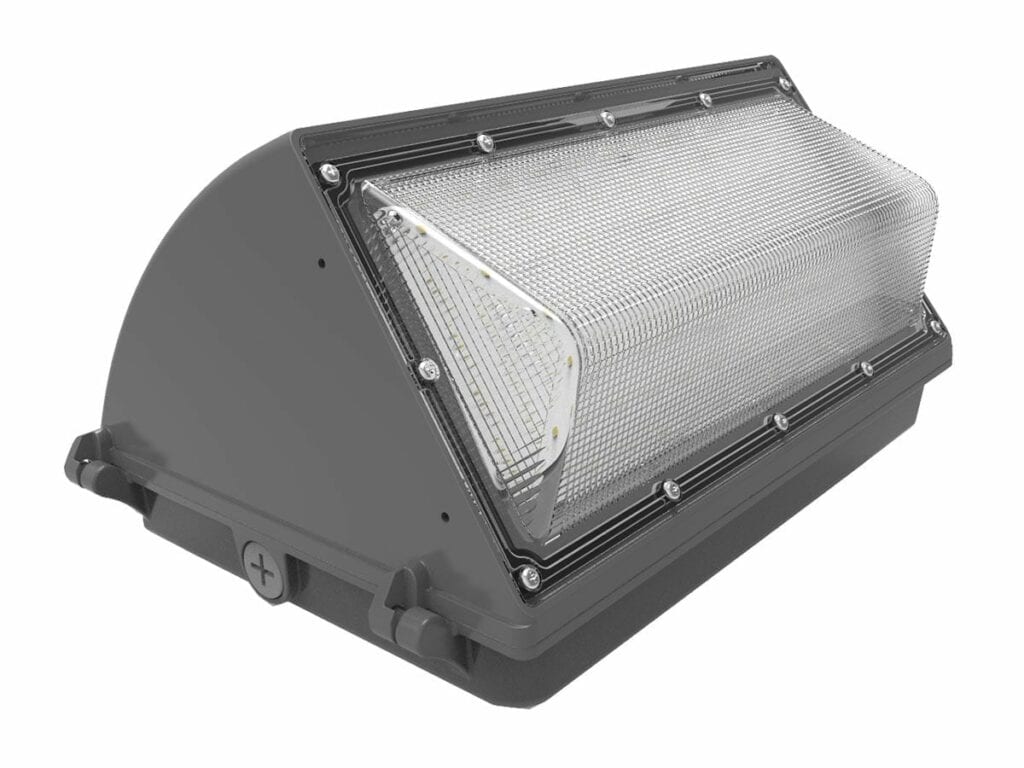

Ace LED Wall Pack (WP1)

LED Wall Pack

The Ace LED Wall Pack (WP1) provides traditional architectural style with high performance energy efficient illumination. Rugged die-cast aluminum construction, hinged removable door, stainless steel hardware along with sealed gasket make the LED Wall Pack virtually impenetrable to contaminants.

The Ace Wall Pack is ideal for pathways, building entrances, vehicle ramps, tunnels, stairways, loading docks, and more.

Applications: Automotive Lighting, Outdoor Lighting, Parking Garage Lighting.

Impenetrable Design

Rugged die-cast aluminum construction, stainless steel hardware, and sealed gasket make it virtually impenetrable to contaminants.

Superior Thermal Design

Featuring high efficacy LEDs and aluminum LED boards to deliver the maximum lumen output for its size with optimal heat dissipation.

Rapid Installation

Two-piece housing with hinged door allowing for quick installation, saving you time and money.


Lumen Output Efficacy Watts Part Number
5,603 140 40 AL-WP1-40W-50K-F-UNV-PC
8,096 135 60 AL-WP1-60W-50K-F-UNV-PC
10,465 131 80 AL-WP1-80W-50K-F-UNV-PC

Technical Specs

  • Housing: Rugged die-cast aluminum construction, hinged removable door, stainless steel hardware along with sealed gasket make the LED wall pack virtually impenetrable to contaminants. IP65 rated.
  • Design: Modular design for easy installation and maintenance
  • Impact resistant.
  • LED Boards: Made of aluminum core to maximize thermal dissipation of the LEDs.
  • LEDs: Only high quality LEDs are used to deliver maximum light output and longevity.
  • Power Input: 120-277V (50/60Hz).
  • Power Factor: Greater than 0.9 (0.99 typical).
  • Total Harmonic Distortion: Less than 10%.
  • Environment: IP65 rated for wet locations.
  • Ambient Range Operation: -40°C up to 50°C (-40°F up to 122°F).
  • CCT: 3500K, 4000K and 5000K standard, other CCT available (extended lead time).
  • CRI: >80 standard, other CRI available (extended lead time).
  • Lenses: Frosted lens with 120° light distribution.
  • Fixture designed for wall mounting.
  • Photocell: Linmore LED proprietary photocell only.
  • Standard: 5-year product warranty covers fixture and LED driver.
  • ETL listed (UL 1598), CSA 22.2.
  • RoHS compliant.
  • DesignLights™ Consortium Premium.
  • EMI: Title 47 CFR 15 Class A, ICES-005. ​​
  • LM-79, LM 80 and TM-21 tests and reports are performed in accordance to IESNA standards, per TM-21​​.
