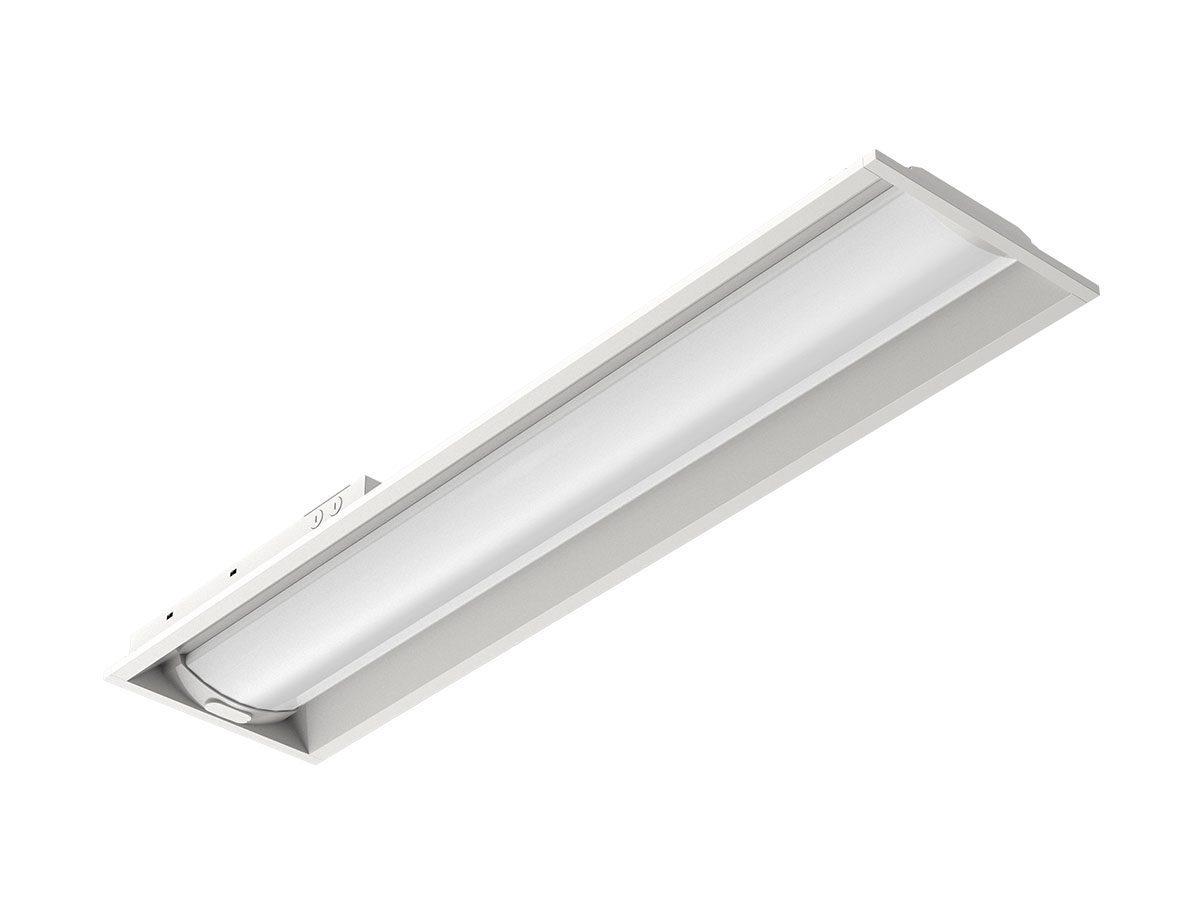

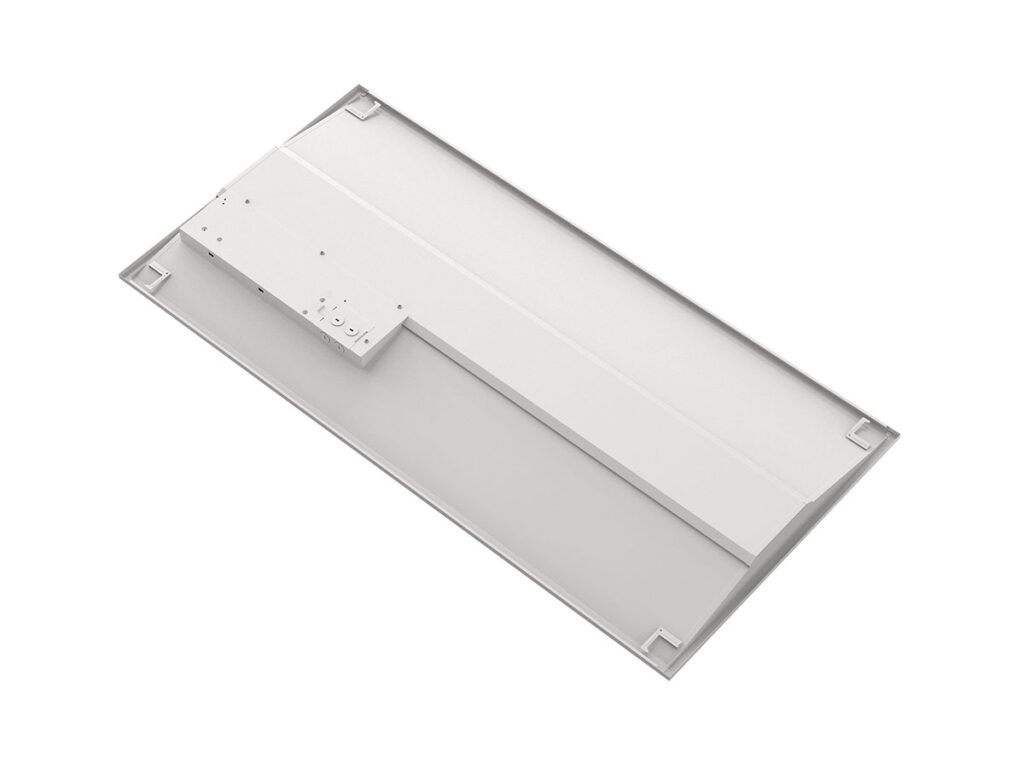

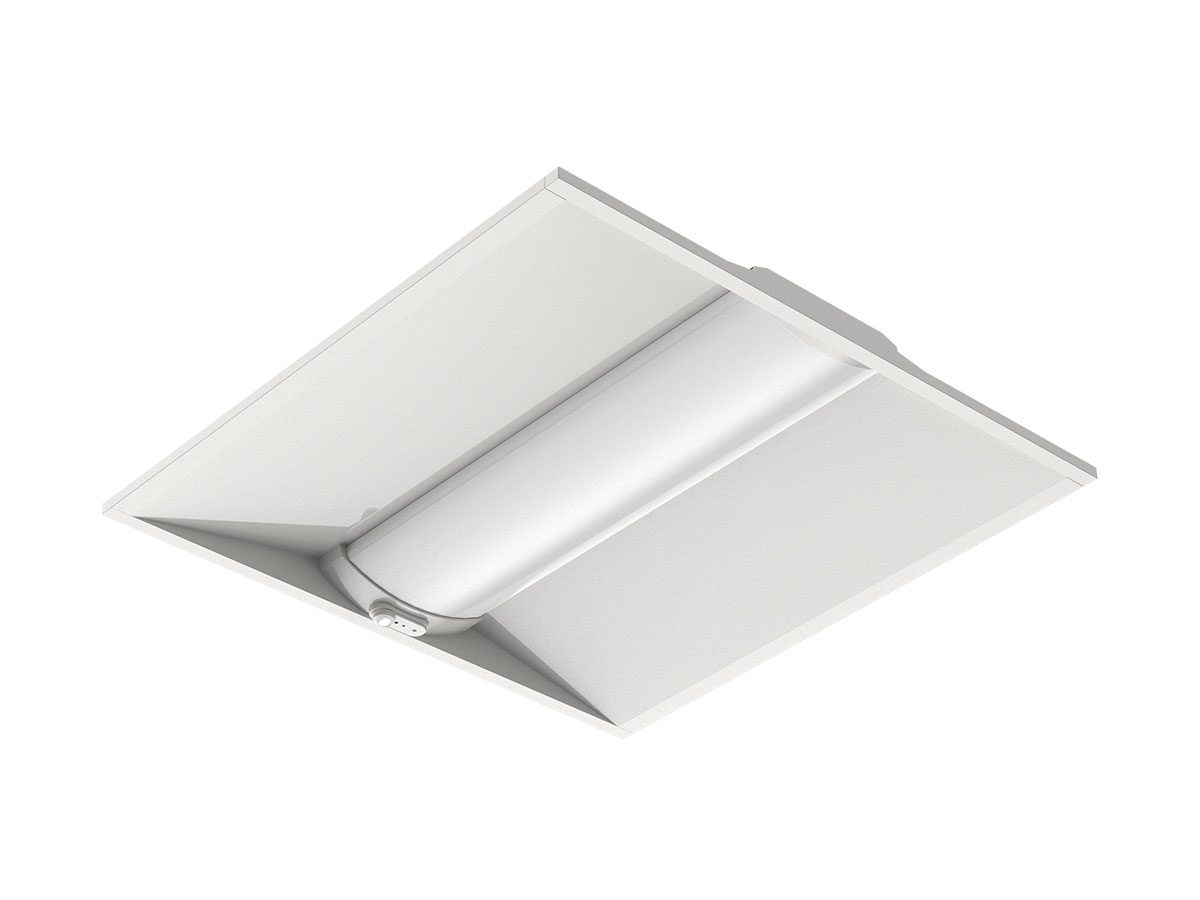

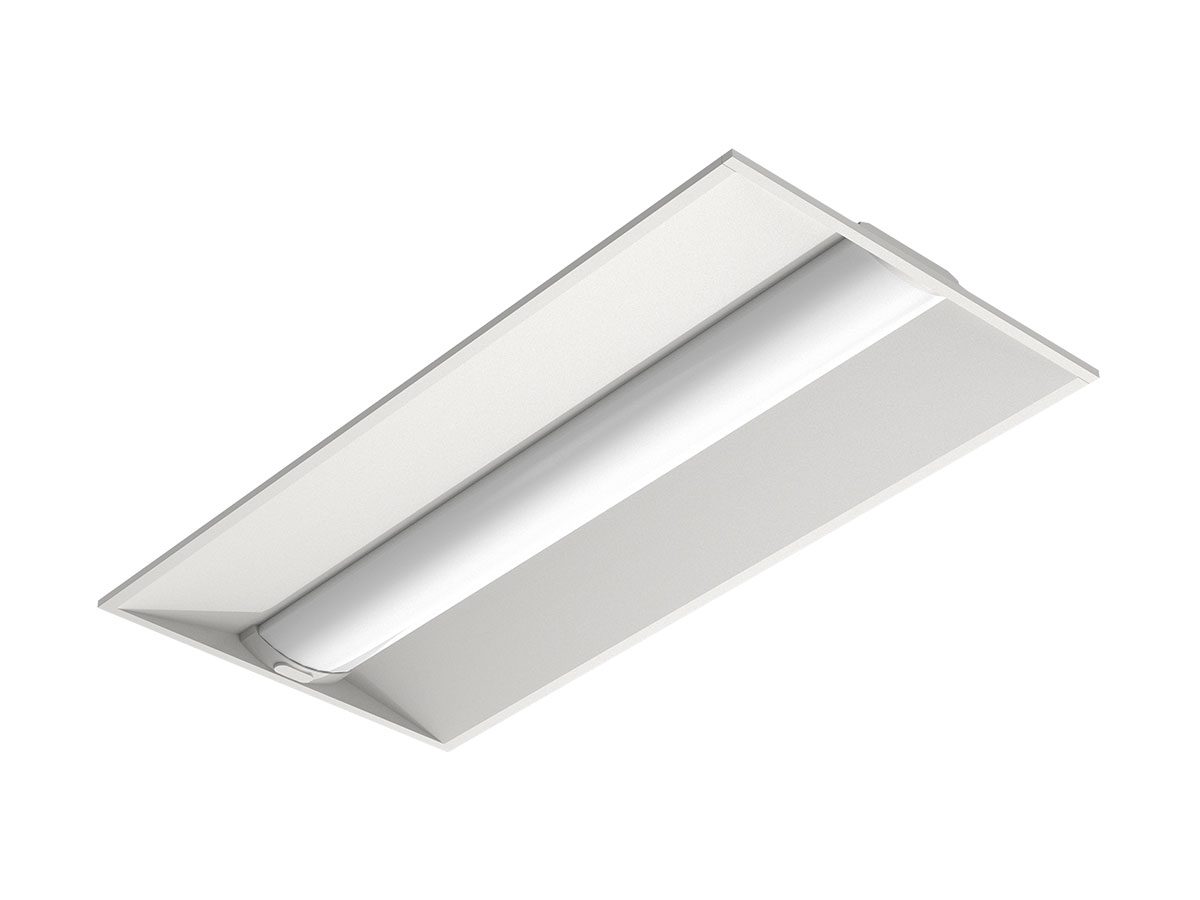

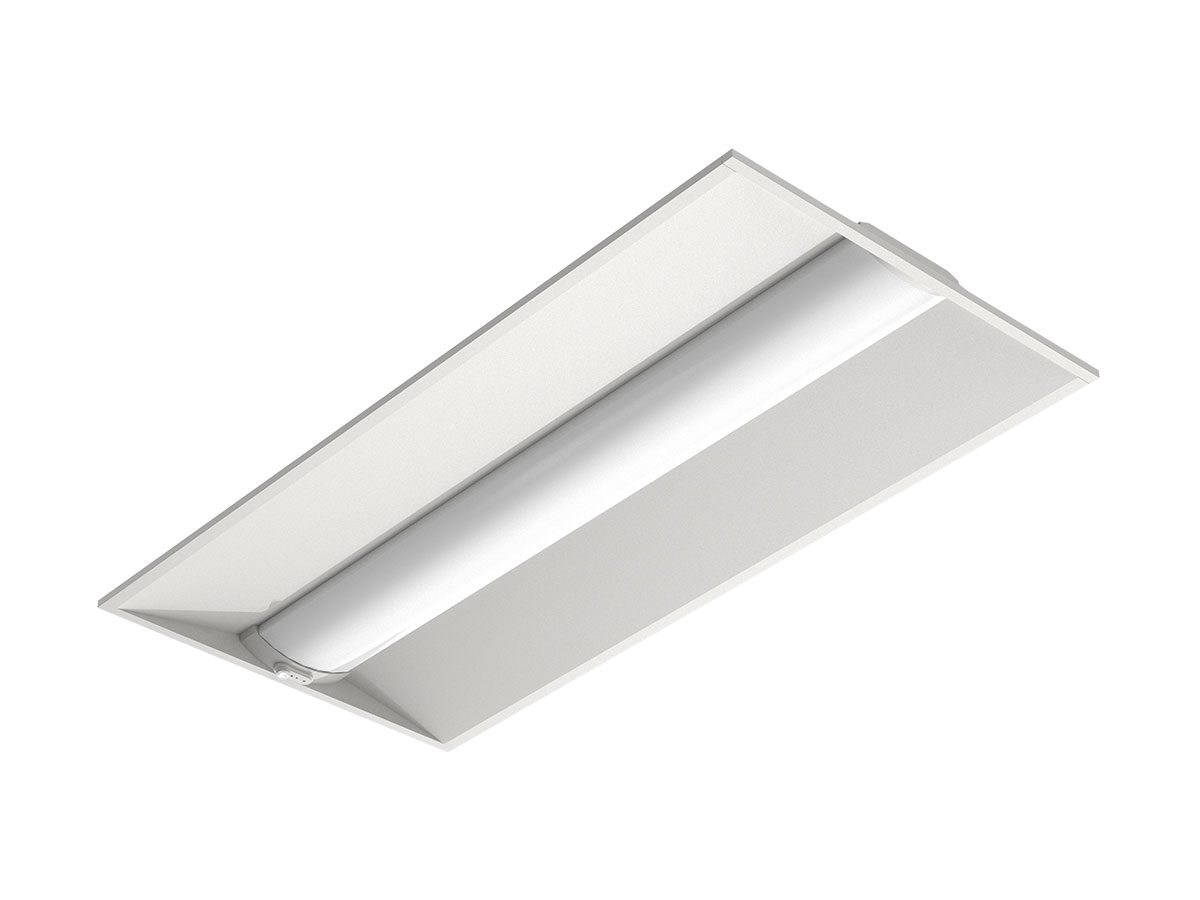

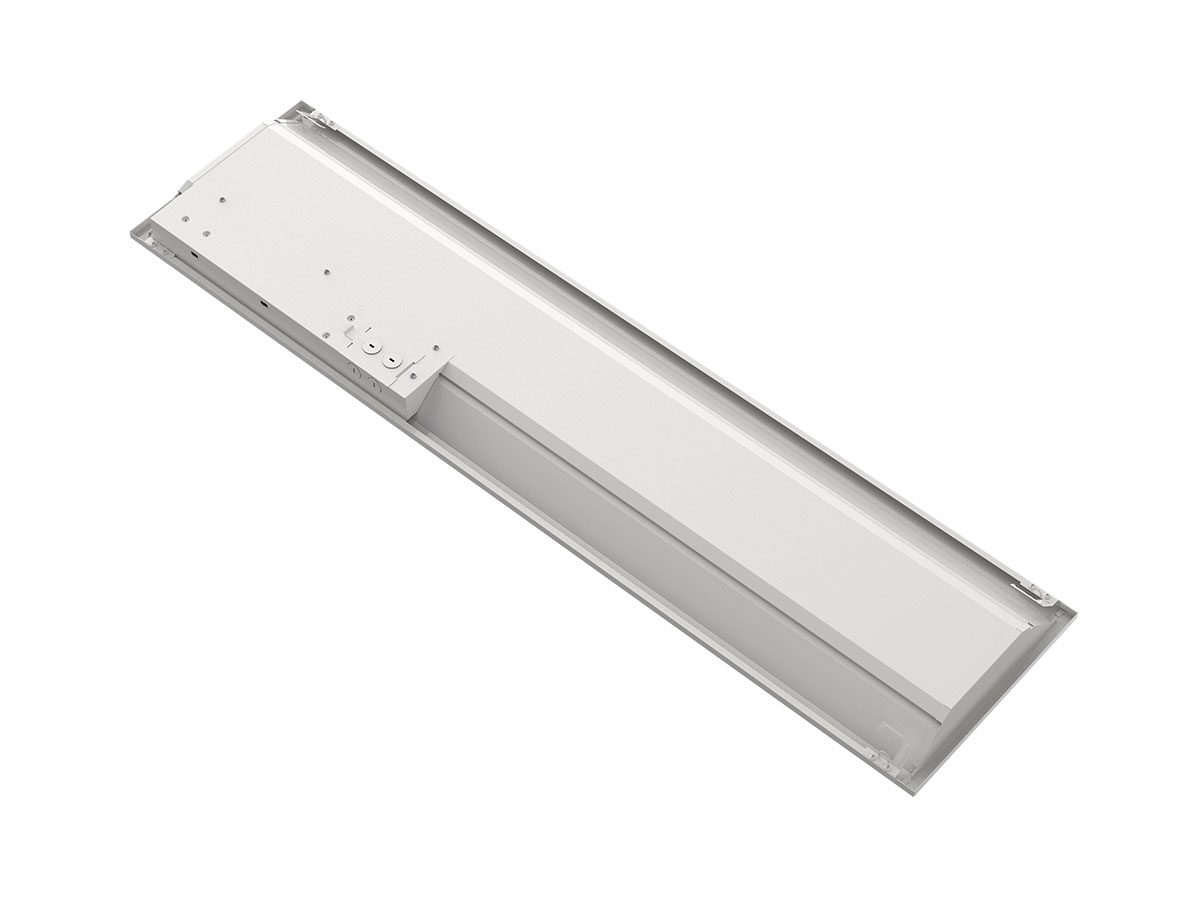

The new Ace LED Troffer (AT2) combines flexibility, performance, and ease of installation, making it the right choice for modern indoor lighting needs.
Built with a durable metal housing the AT2 offers superior heat dissipation and structural integrity. Its low-glare lens and long-lasting LEDs deliver comfortable lighting with exceptional energy efficiency, reducing operational costs over time. The troffer is easy to install and is compatible with T-grid ceiling systems.
The AT2 features adjustable color temperature (CCT), allowing users to choose between 3500K, 4000K, and 5000K to suit various lighting environments. It is available in three sizes: 1×4, 2×2, and 2×4, with adjustable wattage options of 20, 30, and 40 watts for the 1×4 and 2×2 models, and 30, 40, and 50 watts for the 2×4 model.
Its EZ-Connect™ receptacle with a Snap-in system, allows users to easily add compatible motion sensors and UltraLink Bluetooth controls to the fixture at any time.
Applications: Automotive Lighting, Commercial Lighting, Office Lighting.
Selectable Wattage
Each troffer has a switch with three output power options, allowing to select the desired lumen output and energy consumption.
CCT Adjustable
Simply use the switch directly on the fixture to select the desired color temperature for your space: 3500K, 4000K, or 5000K.
EZ-Connect™ Receptacle
The simplest and fastest way to add sensors and UltraLink wireless controls at any time in the field. Snap-in system, no tools or wiring needed.
Performance
| Size | Lumen Output | Efficacy | Watts | Part Number |
|---|---|---|---|---|
| 1x4 | 2,500/3,750/5,000 | 125 | 20/30/40W | AT20S-A2-ADJ-14-ADJ-80-FR-LV-GRID-EZ40-10V |
| 2x2 | 2,500/3,750/5,000 | 125 | 20/30/40W | AT20S-A2-ADJ-22-ADJ-80-FR-LV-GRID-EZ40-10V |
| 2x4 | 3,750/5,000/6,250 | 125 | 30/40/50W | AT20S-A2-ADJ-24-ADJ-80-FR-LV-GRID-EZ40-10V |
Technical Specs
- Housing: Galvanized sheet. Ultra slim design.
- Housing Color: White.
- EZ-Connect™ Receptacle: The simplest and fastest way to add sensors and wireless controls at any tim on the field. Snap-in system, no tools or wiring needed.
- Power Input: 120-277V (50/60Hz).
- Power Factor: Greater than 0.9.
- Total Harmonic Distortion: Less than 20%.
- Emergency Battery Backup: 9 Watts output (~1,100 lumens) for >90 minutes. Simple wiring, metal conduit. Field installed. Available as
an accessory, sold separately.
- Environment: For interior applications, dust-resistant, listed for damp locations.
- Ambient Range Operation: -20°C up to 35°C
(-4°F up to 95°F).
- CCT: 3500K, 4000K, 5000K (selectable via switches).
- CRI: 80+ standard.
- Lens: Polycarbonate, Frosted. 120° beam angle.
- Recessed: In T-bar grid ceiling with integral earthquake clips for secure attachment enclosure.
- Surface Mount: Surface mount kit available as an accessory.
- Dimming: 0-10V standard. Dim to Off. Dimming range 100% to 5%.
- Occupancy Sensors: PIR sensor, On/Off/Dim. EZ-Connect™ Snap-in system for field installation.
- Networked Lighting Controls: UltraLink Wireless Controls with Bluetooth® NLC Mesh technology. EZ Connect™ Snap-in system for field installation.
- 5 Year Warranty: The fixture is guaranteed for 5 years free of defects in materials and workmanship, including LEDs and driver. “Defective” is considered if ten percent (10%) or more of the LEDs, per product, are non‐operating LEDs, or color temperature has shifted more than 500° Kelvin within the warranty period. See terms and conditions at https://linmoreled.com/warranty
- UL listed.
- RoHS compliant.
- IC rated for insulated ceilings.
- UL listed for damp locations.
- DesignLights™ Consortium Premium.
