Ace LED Strip Fixture (ST1)

LED Strip

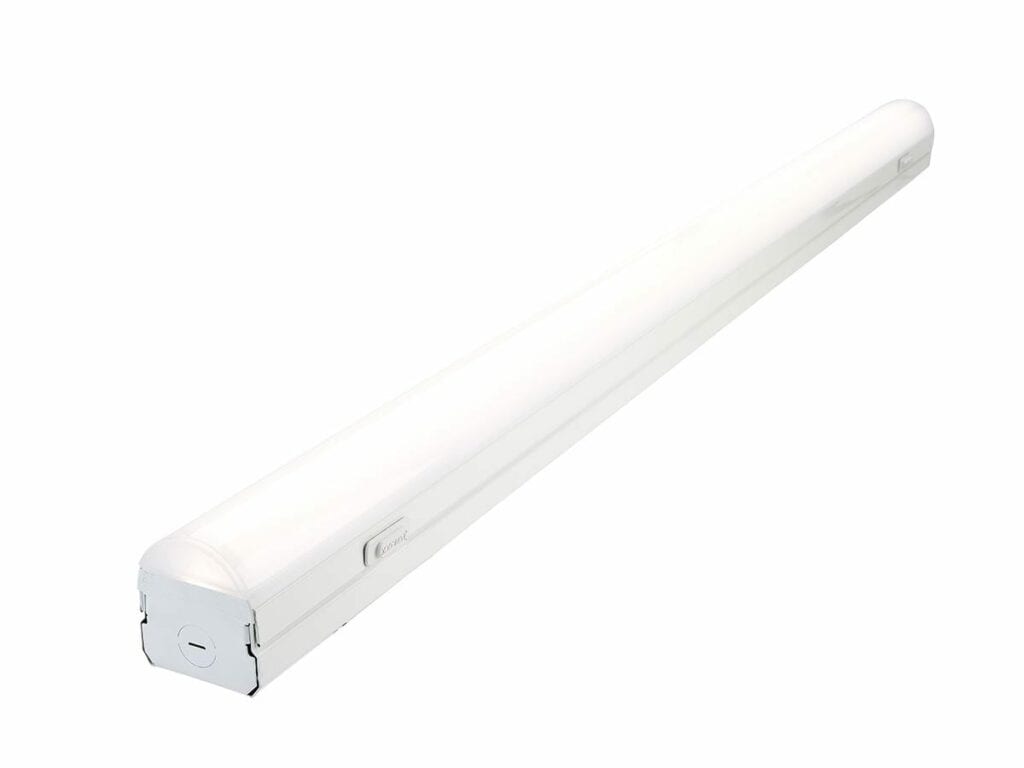

The Ace LED Strip Fixture (ST1) from Linmore LED Labs is a feature rich, high value option for your strip lighting needs from task lighting to stairwells. A unique feature to strip lighting, the ST1 has latches to easily open the fixture while other strips in the market have to be disassembled with tools. The easy opening latches make for an expedited installation and make the ST1 easy to maintain in future years.

The driver comes from Linmore LED, a proven manufacturer of LED drivers. This DLC Premium Linear Fixture is everything you need, and nothing that you don’t. When the objective is to find a quality strip fixture that meets your budget, let our ST1 be the Ace up your sleeve.

Applications: Automotive Lighting, Commercial Lighting, Industrial Lighting, Office Lighting, Parking Garage Lighting, Warehouse Lighting.

Quick Install & Easy Access

Easily open the fixture with latches instead of disassembling with tools. Expedites installation and simplifies maintenance.

Mechanically Linkable

Create a continuous, straight row of fixtures for improved lighting uniformity and a cleaner look.

Superior Thermal Management

Featuring high efficacy LEDs and aluminum LED boards to deliver the maximum lumen output for its size with optimal heat dissipation.

Performance

Lumen Output Efficacy Watts Part Number
3,100 140 22 AL-ST1-4-50K-22WDF
3,630 140 26 AL-ST1-4-50K-26WDF
4,200 140 30 AL-ST1-4-50K-30WDF
5,030 140 36 AL-ST1-4-50K-36WDF
5,440 140 40 AL-ST1-4-50K-40WDF

Technical Specs

  • Heat Sinks: Made of aluminum to ensure maximum heat dissipation.
  • LED Boards: FR4 PCB is used to limit stress on solder joints by matching coefficient of thermal expansion between the LED and the PCB more closely. LED boards attached to the heat sink using a high quality thermally conductive adhesive rather than screws or rivets. This ensures good contact between PCB and heat sinks for excellent thermal conductivity
  • LEDs: Only high efficacy LEDs are used to deliver maximum light output per strip.
  • Latches: ST1 has latches to easily open the fixture while other strips in the market have to be disassembled with tools. The easy opening latches make for an expedited installation and make the ST1 easy to maintain in future years.
  • Mechanically Linkable: Link up to 4 ST1 fixtures using the Linkable Connector option for a straight, continuous row.
  • Power Input: 120-277V (50/60Hz), typical.
  • Power Factor: Greater than 0.9 (0.99 typical).
  • Total Harmonic Distortion: Less than 10%.
  • Environment: Dry/Damp, for interior applications.
  • Ambient Range Operation: -40°C up to 50°C (-40°F up to 130°F).
  • CCT: 3500K, 4000K and 5000K standard, other CCT available (extended lead time).
  • CRI: 80 standard, other CRI available (extended lead time).
  • Lenses: Frosted lenses made using a high-quality plastic with UV inhibitors to aid against yellowing. 180° light distribution.
  • Fixture includes installation bracket and features built-in magnets to aid in the installation process.
  • Dimming: 0-10V standard. Dim to OFF.
  • Sensors: Compatible with WattStopper, IR-TEC and McWong sensors, and Enocean switches.
  • Networked Control Options: Compatible with Avi-On networked controls and UltraLink SIG Bluetooth® with Mesh Networked controls.
  • Standard: 5-year product warranty covers fixture and LED driver.
  • ETL listed (UL 1598), CSA 22.2.
  • DesignLights™ Consortium (DLC) Premium listed.
  • EMI: Title 47 CFR 15 Class A, ICES-005. ​​
  • RoHS compliant. ​​
  • LM-79, LM 80 and TM-21 tests and reports are performed in accordance to IESNA standards, per TM-21​​.
