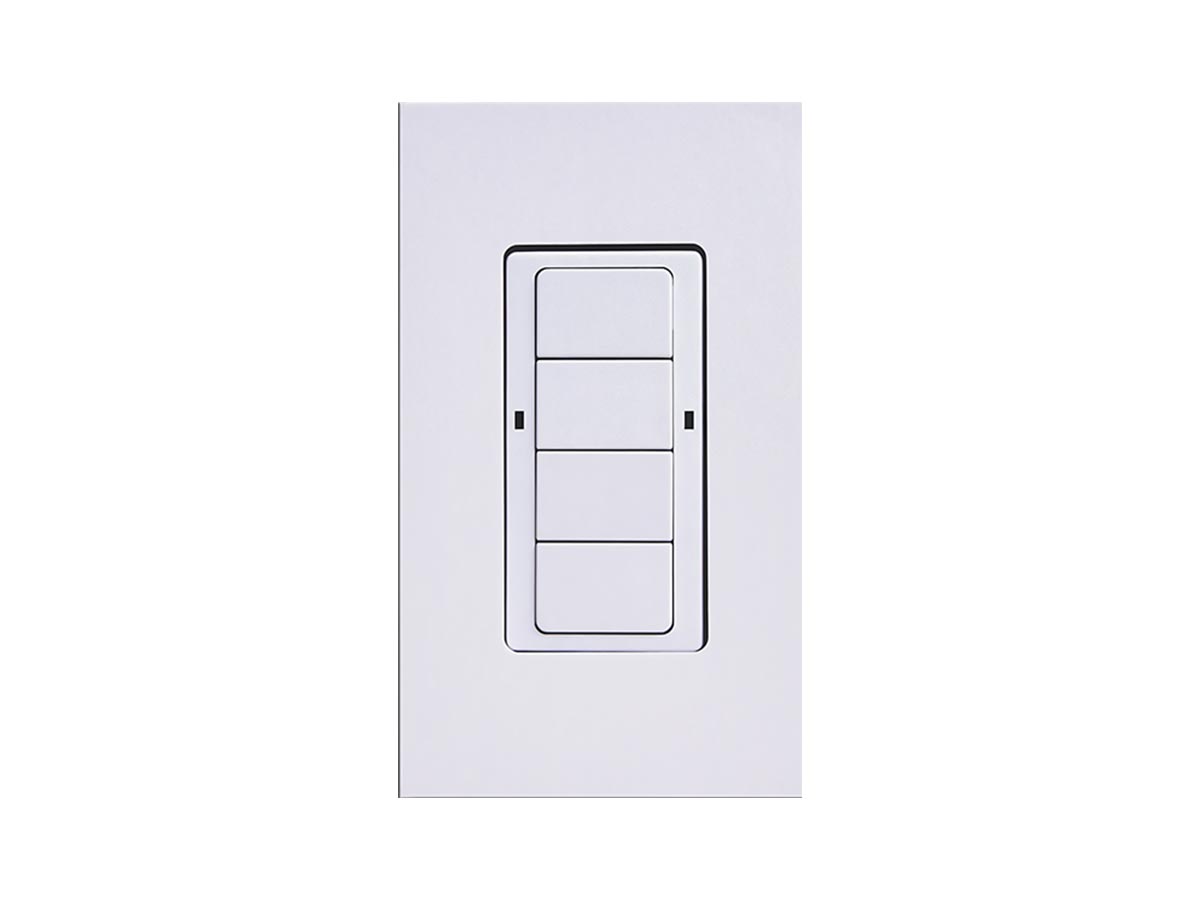

The ULTRASW-4B-AC is an AC-powered wall switch that communicates wirelessly with other devices supporting Bluetooth NLC.
This single rocker switch mounts in any standard wall box and features four customizable buttons that can be programmed for on, off, dimming, or preset scenes. Multiple fixtures can be grouped to be controlled by a single switch.
It connects to a Bluetooth NLC mesh and it can be accessed with the UltraLink web portal or iOS app for initial design, setup, and configuration.
Product Information
TECHNICAL SPECS
FEATURES
LISTINGS
WORKS WITH
TECHNICAL SPECS
- Construction: White polycarbonate.
- Mounting: Standard switch box.
- Dimensions: 4.11″ x 1.72″ x 2.76″.
- Input Voltage: 120-277 VAC 50/60Hz.
- Max Power Consumption: 1.5W.
- Operating Temperature Range: 0°C to +55°C (+32°F to +131°F).
- Max Bluetooth Range: 30’ (9.1 m) line of sight.
Range is highly dependent on the integration of fixtures, environment, and conditions. It is recommended to conduct testing for range accuracy.
FEATURES
- Bluetooth NLC (Networked Lighting Control).
- LED status indicator.
- 4 field-customizable buttons (on, off, dimming, or preset scenes).
- It can be installed in a standard wall box.
- Advanced settings and functionality such as length of time delays, fade time, energy monitoring, and demand response are available with the optional UltraLink Dashboard.
- Suitable for indoor use only.
- Technology partner Silvair.
LISTINGS
- FCC
- UL
- DLC
- Bluetooth Declaration ID: D062134
- Conforms with DLC NLC5 Cybersecurity Standards
WORKS WITH
Ace LED Door Kit (AD1), Ace LED High Bay (AH1), Ace LED Panel (AP1), Ace LED Troffer (AT1), Commercial High Bay (CH2), Eliminator High Bay (EHB), Essentials Series 4.0 (ES4), Hosedown 2.0 (HD2), High Output Troffer (HT1), Linear 3.0 (LR3), Site Lighter Area Light (SL1), Site Lighter Wall Pack (SLW), Universal Retrofit System (URS), Universal Retrofit System Eco (URS-ECO)
