Wet-Rated Tubular Fixture (TBW)

Wet Rated

The Wet-Rated Tubular Fixture (TBW) is a round, tubular enclosure designed for the easy run off of sanitation processes. The one-piece tubular structure is capped by stainless steel hardware with a pressure relief valve to prevent condensation within the fixture.

The no-cavity, rounded design prevents dirt, debris, and moisture from accumulating. The enclosure is IP67 rated and suitable for both wet and dry locations.

High efficacy LEDs and a frosted enclosure provide ample, soft lighting with even distribution and low glare. When the objective is to utilize an easy-to-clean task light with durability and features overlooked by others, the Linmore TBW is the clear choice.

Applications: Automotive Lighting, Commercial Lighting, Food Processing Lighting, Industrial Lighting.

Wet Location Rated

IP67, IP69K, and IK10 rated. The no-cavity, rounded design prevents dirt, debris and moisture from accumulating.

NSF Certified

Certified for food and beverage processing, cold storage, non-corrosive chemical plants, wine cellars and more.

Quality Components

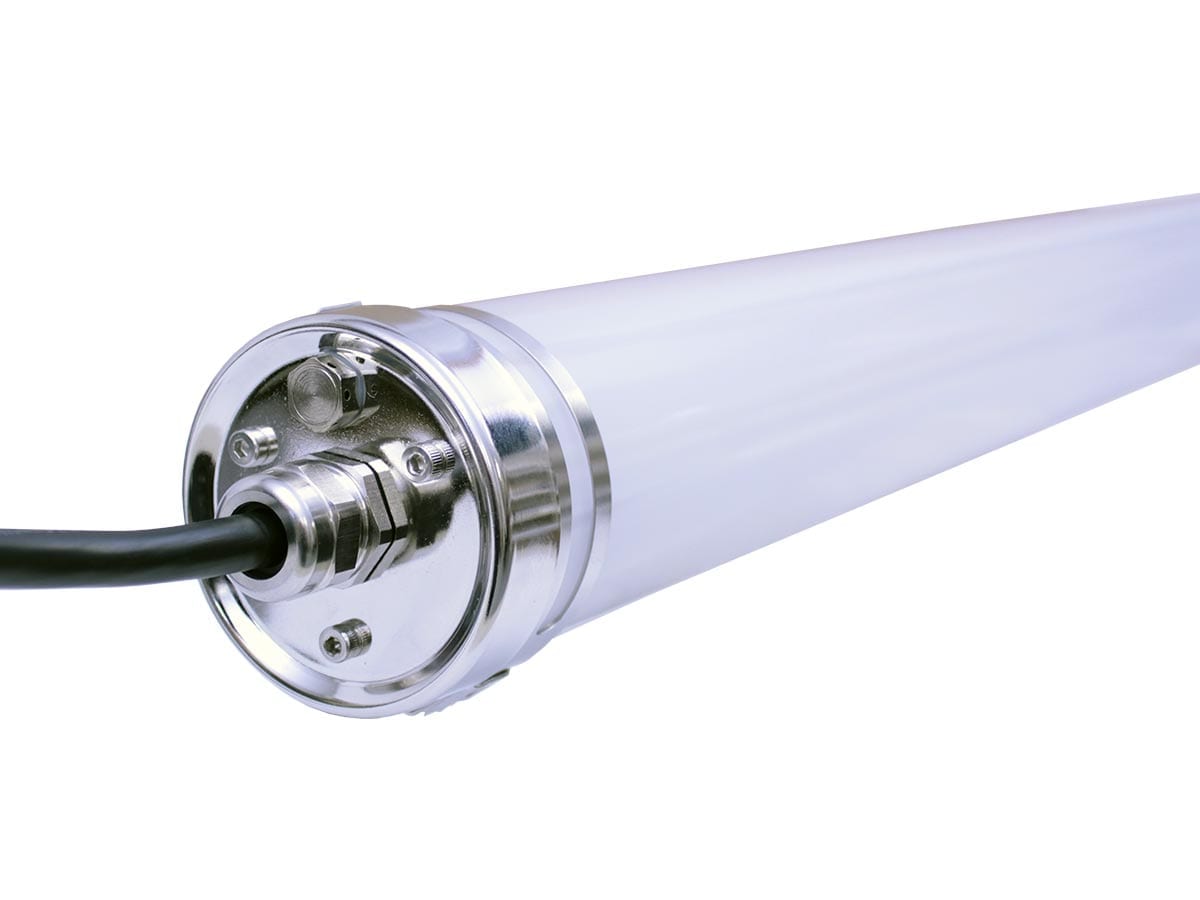

One-piece tubular structure capped by stainless steel hardware with a pressure relief valve to prevent condensation within the fixture.

Performance

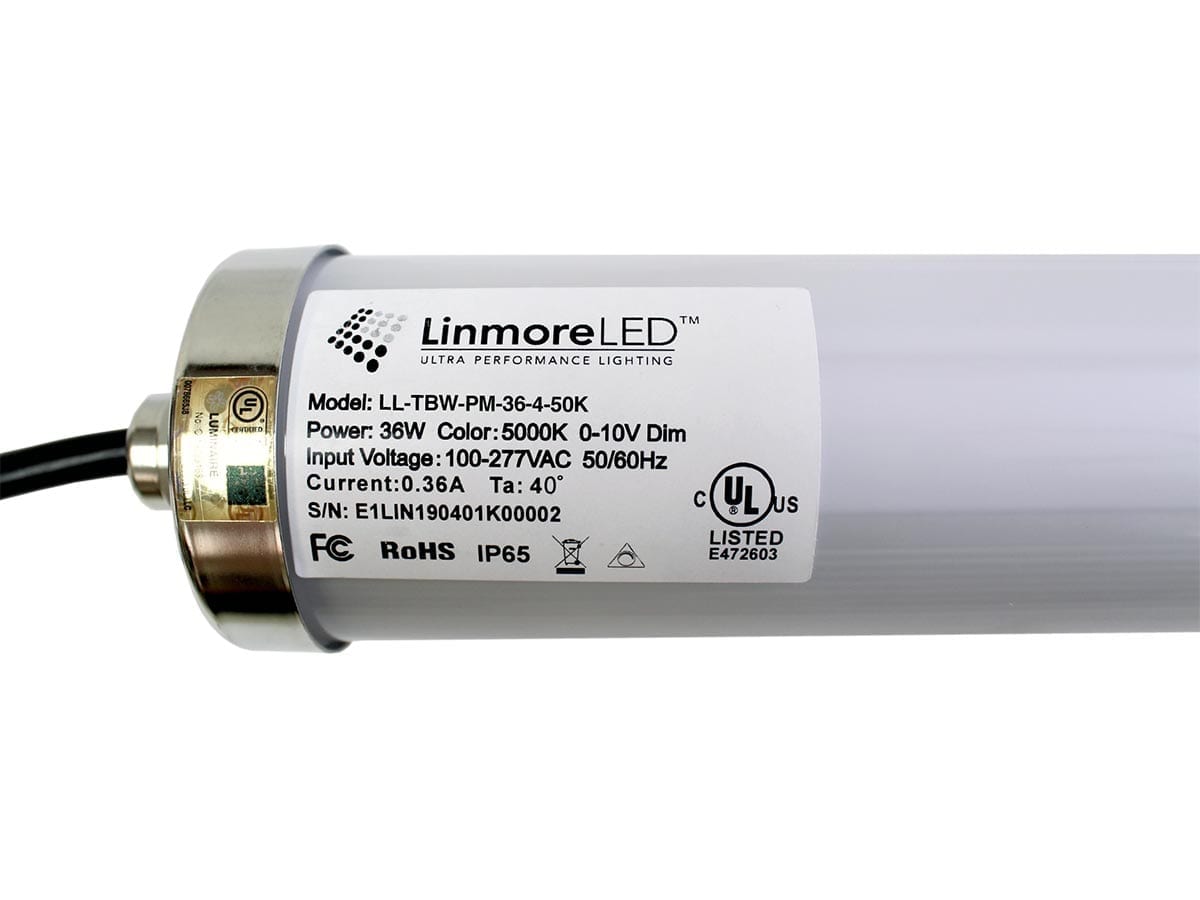

Lumen Output Efficacy Watts Part Number
5,061 140 36 LL-TBW-PM-36W-4-50K
4,988 138 36 LL-TBW-PM-36W-4-41K
4,954 137 36 LL-TBW-PM-36W-4-35K

Technical Specs

  • Housing: Stainless steel and aluminum LED driver enclosure.
  • Latches: Stainless steel.
  • Materials: Glass-free. Mercury-free.
  • Light Engine: ParaBars™ light bars made of 6063 T5 extruded aluminum. Light bars are optically engineered with a parabolic shape and feature clear, polycarbonate end caps to achieve 98% reflective siding.
  • LEDs: Only high quality LEDs are used to deliver maximum light output and longevity.
  • Patented Air Flow Cavity.
  • Assembled in the USA.
  • Power Input: 120-277V or 347-480 (50/60Hz).
  • Power Factor: Greater than 0.9 (0.99 typical).
  • Total Harmonic Distortion: Less than 9%.
  • Surge Protection: Optional 20KA integral surge suppression.
  • Battery Backup (BB): Available as an option.
  • Environment: Washdown and wet locations. IP67 rated. NSF certified.
  • Ambient Range Operation: -40°C up to 60°C (-40°F up to 140°F).
  • CCT: 3500K, 4000K and 5000K standard, other CCT available (extended lead time).
  • CRI: >80 standard, other CRI available (extended lead time).
  • Lenses: Clear acrylic. Impact resistant. 240° light distribution.

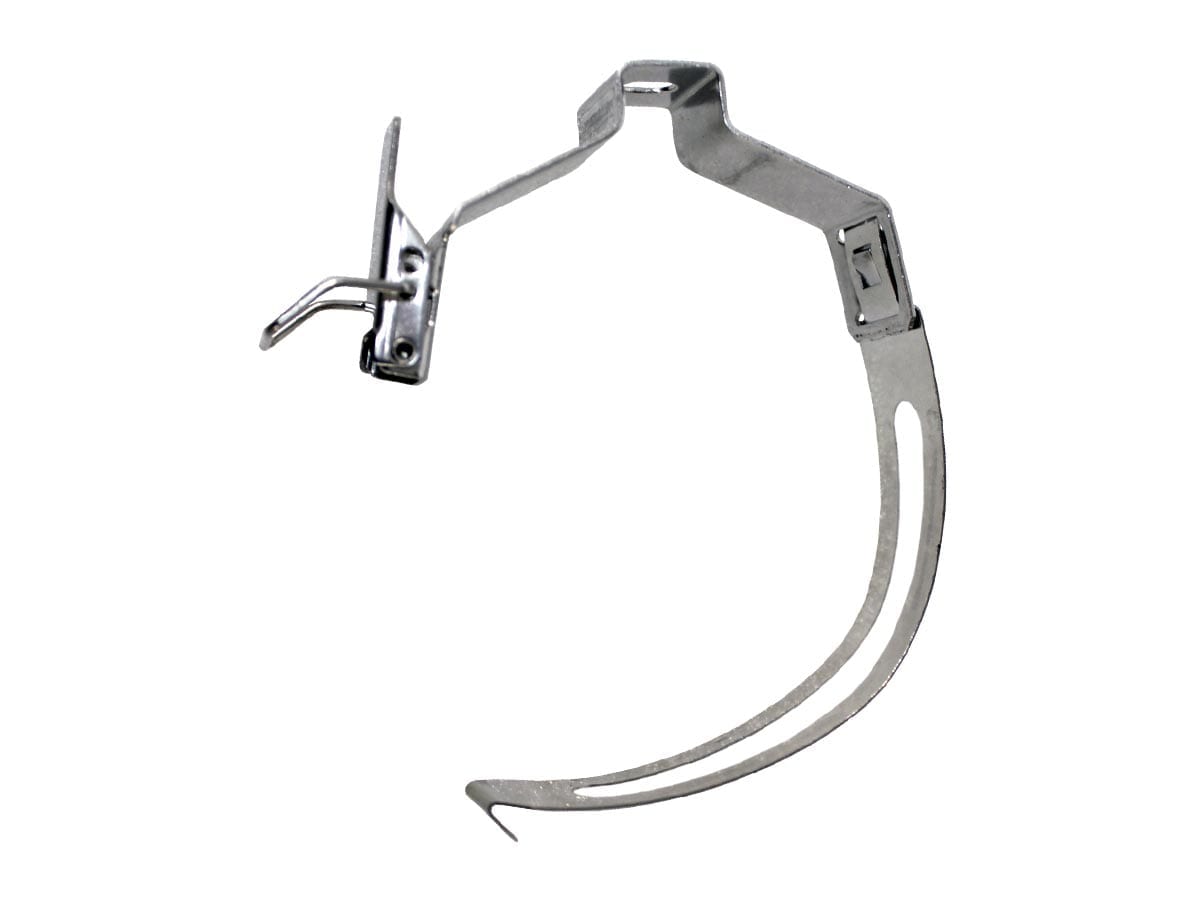

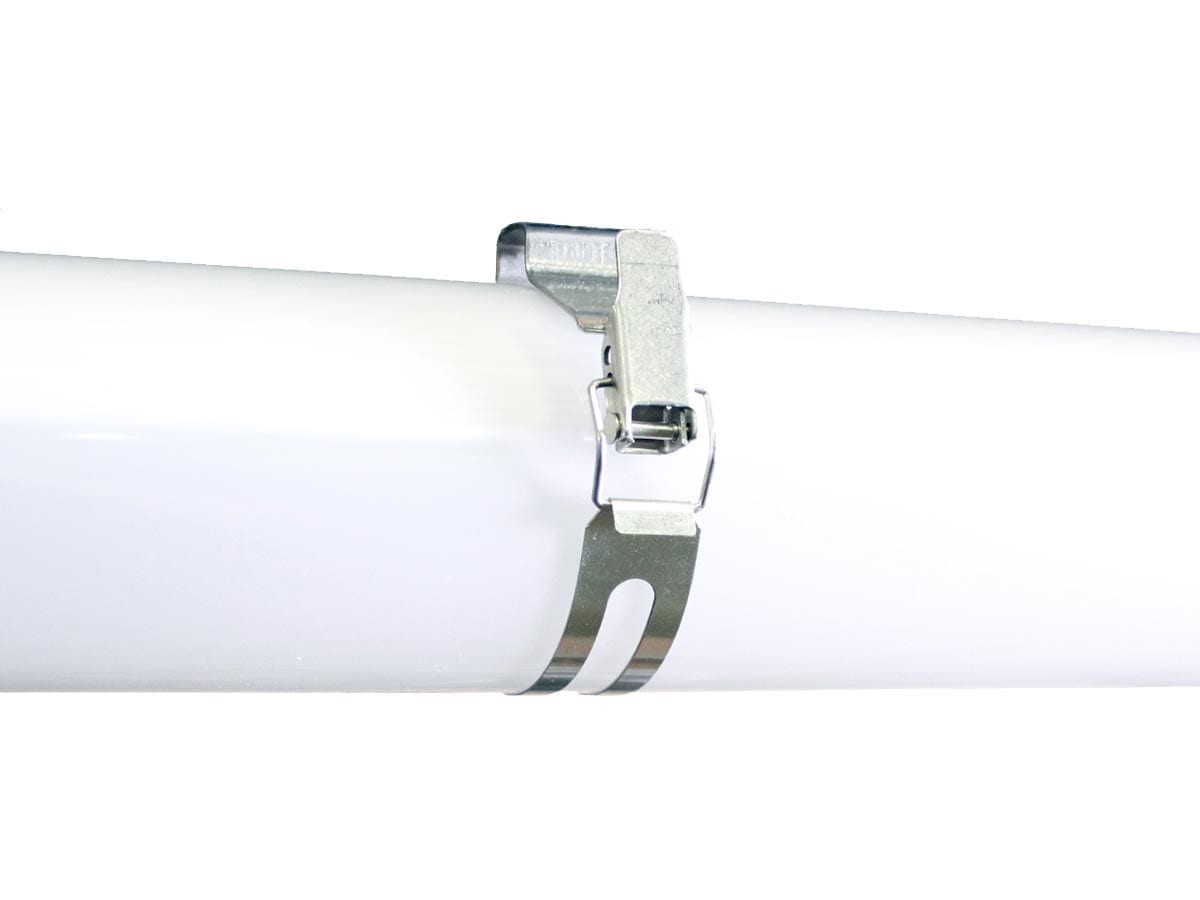

  • Fixture can be mounted with V Hooks, Cable Assembly or Ceiling Mount.
  • Dimming: 0-10V standard. Dim to OFF.
  • Sensors: Compatible with WattStopper, IR-TEC and McWong sensors, and Enocean switches.
  • Networked Control Options: Compatible with Avi-On networked controls and UltraLink SIG Bluetooth® with Mesh Networked controls.
  • Standard: 10-year product warranty on the light bar, 5-year warranty on the LED driver.
  • ETL listed (UL 1598), CSA 22.2.
  • RoHS compliant.
  • IP67 rated.
  • NSF certified.
  • cULus.
  • UL Wet.
  • EMI: Title 47 CFR 15 Class A, ICES-005. ​​
  • LM-79, LM 80 and TM-21 tests and reports are performed in accordance to IESNA standards, per TM-21​​.
