Vapor Tight Strip (VTS)

LED Vapor Tight

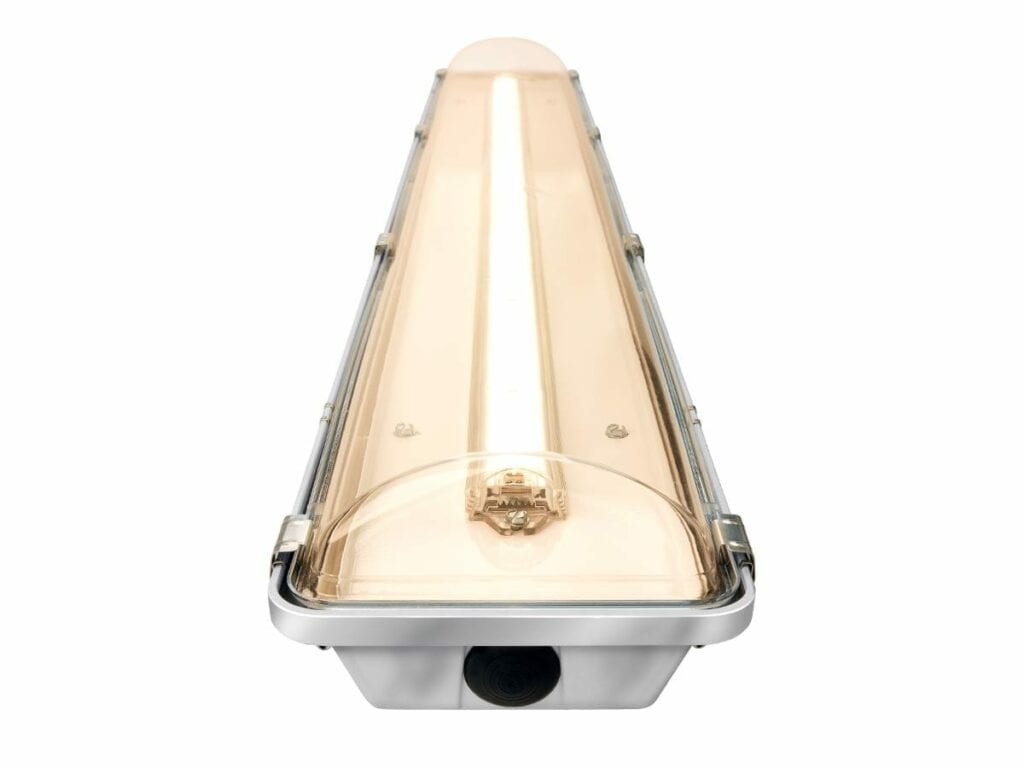

Vapor Tight Strip (VTS) is a powerful combination of an IP65 rated enclosure and Linmore LED’s powerful URS Light Bars as a light engine. The patented URS Light Bar is comprised of the highest efficacy LEDs mechanically bonded to an extruded aluminum light bar with a 94% transmissive diffuser, providing glare reduction and even distribution.

The amount of light and the consistent distribution of light per watt of energy is unmatched by any other vapor tight fixture. When the objective is to utilize a Vapor Tight fixture with the least amount of energy, the least amount of maintenance, best warranty, and designed for decades of effective life, the Linmore Vapor Tight Strip is the clear choice.

Applications: Commercial Lighting, Food Processing Lighting, Industrial Lighting.

Washdown & Wet Location

IP65 rated and NSF certified. Designed to resist wash-down pressures up to 1500psi, ensuring the safety of its electrical components.

Superior Thermal Management

Based on the URS Light Bar, featuring high efficacy LEDs mechanically bonded to an extruded aluminum bar for optimal heat dissipation.

High Quality Optics

Impact resistant acrylic lens for the housing and 94% transmissive diffuser for the light bar, providing low glare and even distribution.

Performance

Size Lumen Output Efficacy Watts Part Number
4' 3,715 143 26 LL-VTS-4-50K-1-26W
4' 5,144 171 30 LL-VTS-4-50K-1-30W
4' 5,076 141 36 LL-VTS-4-50K-1-36W
4' 5,997 136 44 LL-VTS-4-50K-1-44W
8' 8,122 135 60 LL-VTS-8-50K-2-60W
8' 9,678 134 72 LL-VTS-8-50K-2-72W

Technical Specs

  • Housing: Stainless steel and aluminum LED driver enclosure.
  • Latches: Stainless steel.
  • Materials: Glass-free. Mercury-free.
  • Light Engine: ParaBars™ light bars made of 6063 T5 extruded aluminum. Light bars are optically engineered with a parabolic shape and feature clear, polycarbonate end caps to achieve 98% reflective siding.
  • LEDs: Only high quality LEDs are used to deliver maximum light output and longevity.
  • Patented Air Flow Cavity.
  • Assembled in the USA.
  • Power Input: 120-277V or 347-480 (50/60Hz).
  • Power Factor: Greater than 0.9 (0.99 typical).
  • Total Harmonic Distortion: Less than 9%.
  • Surge Protection: Optional 20KA integral surge suppression.
  • Battery Backup (BB): Available as an option.
  • Environment: Washdown and wet locations. IP67 rated. NSF certified.
  • Ambient Range Operation: -40°C up to 60°C (-40°F up to 140°F).
  • CCT: 3500K, 4000K and 5000K standard, other CCT available (extended lead time).
  • CRI: >80 standard, other CRI available (extended lead time).
  • Lenses: Clear acrylic. Impact resistant. 240° light distribution.
  • Fixture can be mounted with V Hooks, Cable Assembly or Ceiling Mount.
  • Dimming: 0-10V standard. Dim to OFF.
  • Sensors: Compatible with WattStopper, IR-TEC and McWong sensors, and Enocean switches.
  • Networked Control Options: Compatible with Avi-On networked controls and UltraLink SIG Bluetooth® with Mesh Networked controls.
  • Standard: 10-year product warranty on the light bar, 5-year warranty on the LED driver.
  • ETL listed (UL 1598), CSA 22.2.
  • RoHS compliant.
  • IP67 rated.
  • NSF certified.
  • cULus.
  • UL Wet.
  • RoHS compliant. ​​
  • EMI: Title 47 CFR 15 Class A, ICES-005. ​​
  • LM-79, LM 80 and TM-21 tests and reports are performed in accordance to IESNA standards, per TM-21​​.
