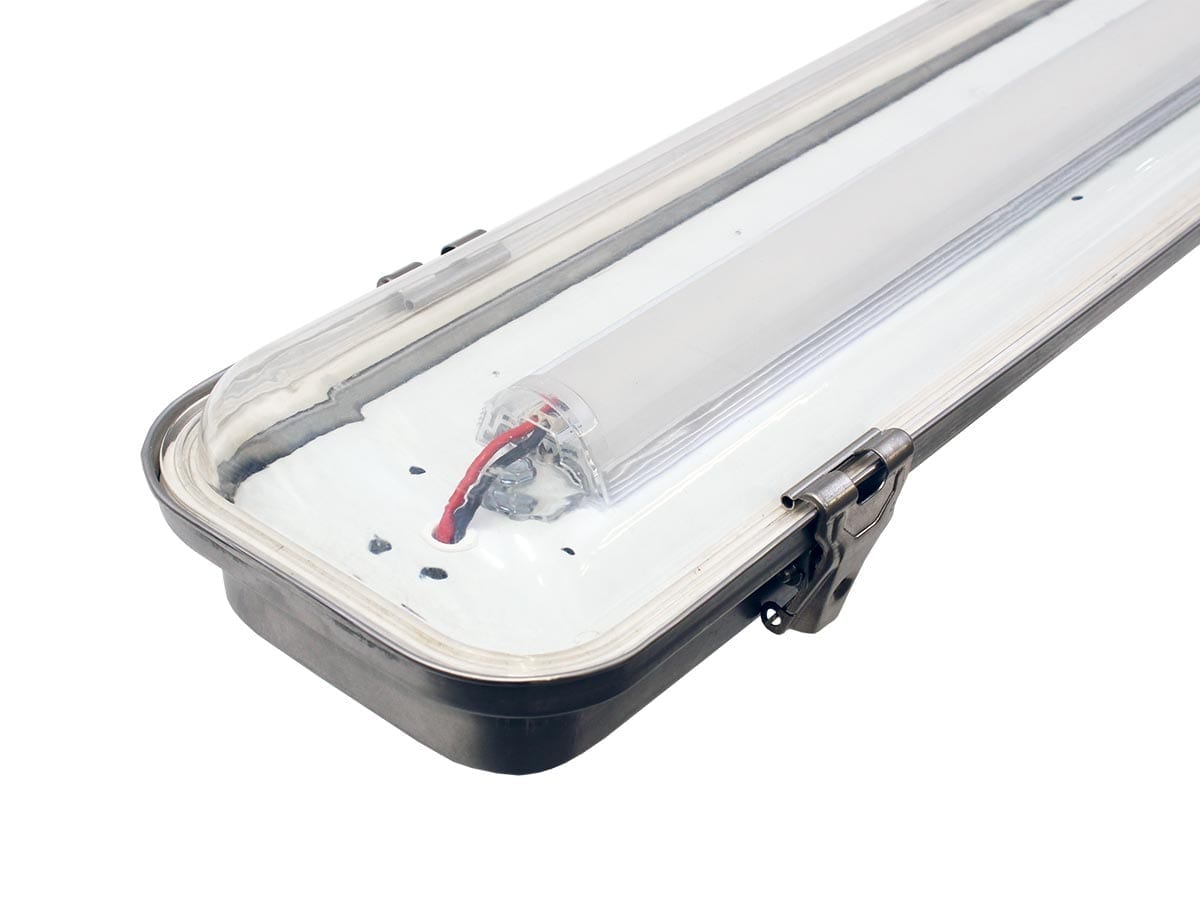

The Stainless Steel Vapor Tight (SVT) fixture is a powerful combination of an IP65 rated stainless steel enclosure and the high performance Linmore LED’s URS Light Bars, delivering 130 lumens/watt. The stainless steel enclosure is a stamped, one-piece design with stainless steel latches. The SVT is an alternative to the plastic and fiberglass vapor tight enclosures that chemicals may degrade.
Through a clear, polycarbonate lens, the patented URS Light Bar with high efficacy LEDs provides abundant light with glare reduction and even distribution. When the objective is to utilize a Vapor Tight fixture with the most durable enclosure, least amount of energy, and designed for decades of effective life, the Linmore LED Stainless Steel Vapor Tight is the clear choice.
Applications: Commercial Lighting, Food Processing Lighting, Industrial Lighting, Warehouse Lighting.
Stainless Steel Housing
Stamped, one-piece design with SS brackets. A superior alternative to plastic and fiberglass vapor tight enclosures that chemicals degrade.
Made for Harsh Environments
This rugged stainless steel fixture withstands impacts, water, dust, dirt, chemicals and practically any other contaminant.
Controls & Sensors
0-10V dimming and a broad range of occupancy and daylight sensors available as an option, including wireless controls.
Performance
| Lumen Output | Efficacy | Watts | Part Number |
|---|---|---|---|
| 3,093 | 141 | 22 | LL-SVT-4-C-50K-22W-UNV |
| 3,589 | 138 | 26 | LL-SVT-4-C-50K-26W-UNV |
| 4,064 | 136 | 30 | LL-SVT-4-C-50K-30W-UNV |
| 4,737 | 132 | 36 | LL-SVT-4-C-50K-36W-UNV |
| 5,676 | 129 | 44 | LL-SVT-4-C-50K-44W-UNV |
| 8,514 | 142 | 60 | LL-SVT-4-C-50K-60W-UNV |
Technical Specs
- Housing: All stainless steel, including vapor tight enclosure, hardware and mounting brackets.
- Air Flow Cavity: The patented Air Flow Cavity located under the LED board allows dissipated heat to leave the fixture, keeping the LEDs cooler.
- Heat Sink: Made of 6063 T5 extruded aluminum with multiple fins and large surface area for superior heat dissipation.
- LED Board: Made of aluminum core and mechanically bonded to the aluminum extrusion heat sink.
- LEDs: Only high quality LEDs are used to deliver maximum light output and longevity.
- Assembled in the USA.
- 120-277V (50/60Hz), 347-480V optional.
- Power Factor: Greater than 0.9 (0.99 typical).
- Total Harmonic Distortion: Less than 9%.
- Environment: Washdown and wet locations. IP65 rated.
- Ambient Range Operation: -40°C up to 50°C (-40°F up to 120°F).
- CCT: 3500K, 4100K and 5000K standard, other CCT available (extended lead time).
- CRI: >80 standard, other CRI available (extended lead time).
- Lenses: Clear acrylic lens. Impact resistant.180° beam angle provides wide light distribution and high uniformity. Glass-free. Frosted lens available.
- Fixture comes with stainless steel mounting clips.
- Dimming: 0-10V standard. Dim to OFF.
- Sensors: Compatible with WattStopper, IR-TEC and McWong sensors, and Enocean switches.
- Networked Control Options: Compatible with Avi-on networked controls and UltraLink SIG Bluetooth® with Mesh Networked controls.
- 10-year warranty on the fixture. 5-year warranty on the LED driver.
- ETL listed (UL 1598), CSA 22.2.
- RoHS compliant.
- cULus.
- IP65.
- EMI: Title 47 CFR 15 Class A, ICES-005.
- DesignLights™ Consortium Premium.
- LM-79, LM 80 and TM-21 tests and reports are performed in accordance to IESNA standards, per TM-21.
