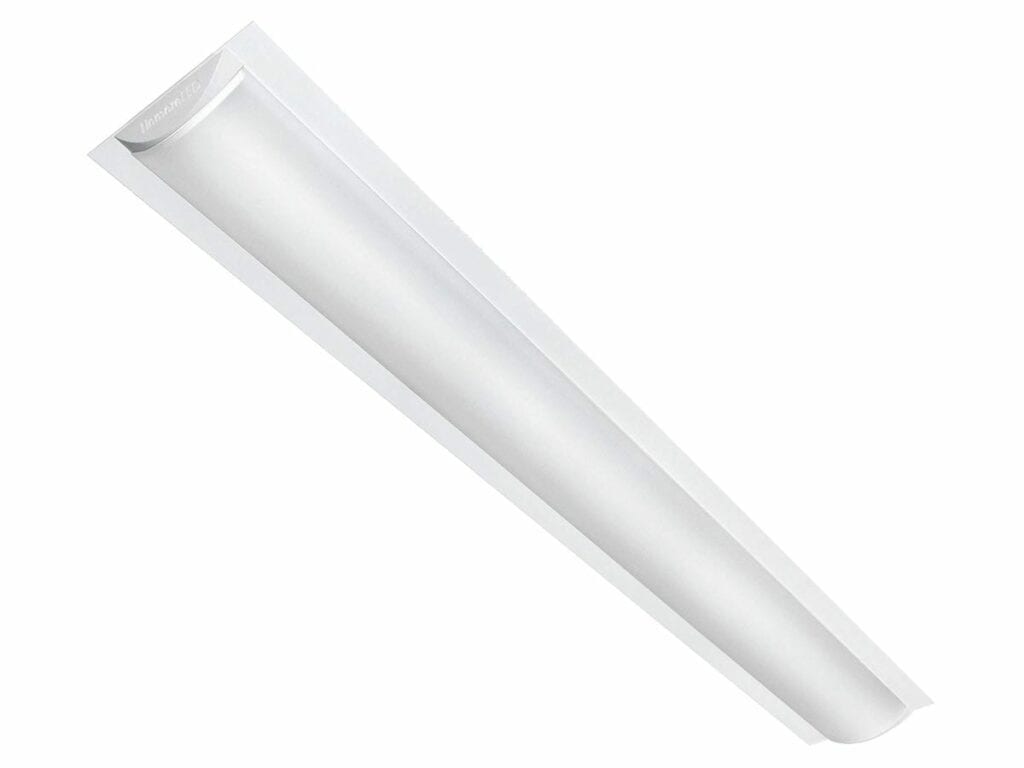

Skinny-T Troffer (SKT)

LED Troffer

The Linmore LED Skinny-T Troffer Fixture (SKT) is a new take on a traditional product. The Skinny-T is a modern aesthetic LED troffer and a serious energy play. The lens comes beneath the ceiling by 1.5″ creating a look that is all new for troffer lighting and transforms a work place.

The light engine of the Skinny-T is the Linmore’s patented URS Light Bar System combined with a dimmable LED driver. When the objective for a new troffer is to leave old paradigms behind with ultra-low energy, the Linmore LED Skinny-T Troffer is the clear choice.
Applications: Automotive Lighting, Commercial Lighting, Office Lighting.

Modern Aesthetics

The lens comes beneath the ceiling by 1.5” creating a look that is all new for troffer lighting and transforms a work place.

Quality Components

Uses the URS Light Bar that consists of a patented aluminum extrusion, a high-efficacy set of LEDs, and an external dimmable driver.

High Quality Optics

Frosted lens made of a highly transmissive plastic to deliver the maximum lumen output with high uniformity and low glare.

Performance

File could not be opened. Check the file's permissions to make sure it's readable by your server.

Technical Specs

  • Light Engine: We use our patented URS Light Bar, known for it’s high performance and superior heat dissipation.
  • LEDs: Only high quality LEDs are used to deliver maximum light output and longevity.
  • Assembled in the USA.
  • Power Input: 120-277V (50/60Hz), typical.
  • Power Factor: Greater than 0.9 (0.99 typical).
  • Total Harmonic Distortion: Less than 10%.
  • For use with T-Bar ceiling.
  • Environment: Dry/Damp, for interior applications.
  • Ambient Range Operation: -40°C up to 60°C (-40°F up to 140°F).
  • CCT: 3500K, 4100K and 5000K standard, other CCT available (extended lead time).
  • CRI: >80 standard, other CRI available (extended lead time).
  • Lenses: Frosted, made of a highly transmissive plastic to deliver the maximum lumen output with high uniformity and low glare.
  • Dimming: 0-10V standard. Dim to OFF.
  • Sensors: Compatible with WattStopper, IR-TEC and McWong sensors, and Enocean switches.
  • Networked Control Options: Compatible with Avi-On networked controls and UltraLink SIG Bluetooth® with Mesh Networked controls.
  • Standard: 20-year product warranty on the light bar, 10-year warranty on the LED driver.
  • ETL listed (UL 1598), CSA 22.2.
  • EMI: Title 47 CFR 15 Class A, ICES-005. ​​
  • RoHS compliant. ​​
  • LM-79, LM 80 and TM-21 tests and reports are performed in accordance to IESNA standards, per TM-21​​.
