Rapid Link Bar System (RLB)

LED Light Bar, Retrofit System

The Rapid Link™ Bar (RLB) is a system of Bars, Power Cords, and Mounting Clips made to be rapidly linked and deployed. The Rapid Link Bar System opens new possibilities for retail, office, and warehouse applications because minimal cost and time is needed for installation; a typically large aspect of an LED upgrade.

Using our Incoming Power Cord, power is connected to the first Rapid Link Bar. Then, with a Linking Power Cord, the next, and up to 40, Rapid Link Bars can be connected to each other for unprecedented installation times.

True to Linmore LED standards, the Rapid Link Bar combines the important attributes of thick aluminum extruded construction and high efficacy. When the objective is to upgrade to LED with a simple, rapid-deployment system, Linmore’s Rapid Link Bar is the clear choice.

Applications: Automotive Lighting, Commercial Lighting, Food Processing Lighting, Industrial Lighting, Office Lighting, Parking Garage Lighting, Sports Lighting, Warehouse Lighting.

Quality Construction

Extruded aluminum construction improves thermal transfer, keeping LEDs cool to increase performance and life.

Simple, Rapid Installation

System of bars, cords and mounting clips designed to save time and money. Link up to 40 bars with a single electrical connection.

Controls & Sensors

For use with on / off sensors and relays only. Multiple options available.

Performance

Size Lumen Output Efficacy Watts Part Number
2 1,609 149 11 LL-RLB-2-11W-50K-F
4B 1,757 161 11 LL-RLB-4B-11W-50K-F
4B 3,542 161 22 LL-RLB-4B-22W-50K-F

Technical Specs

  • Housing: Extruded aluminum. Plastic end caps.
  • LED Boards: LEDs are populated onto an aluminum core board creating a steady flow of heat into the aluminum bar.
  • Power Supply Access: Robust and grounded linking power cords.
  • Power Input: 120-277V (50/60Hz). Optional 347V.
  • Power Factor: Greater than 0.93 (0.99 typical).
  • Total Harmonic Distortion: Less than 15%.

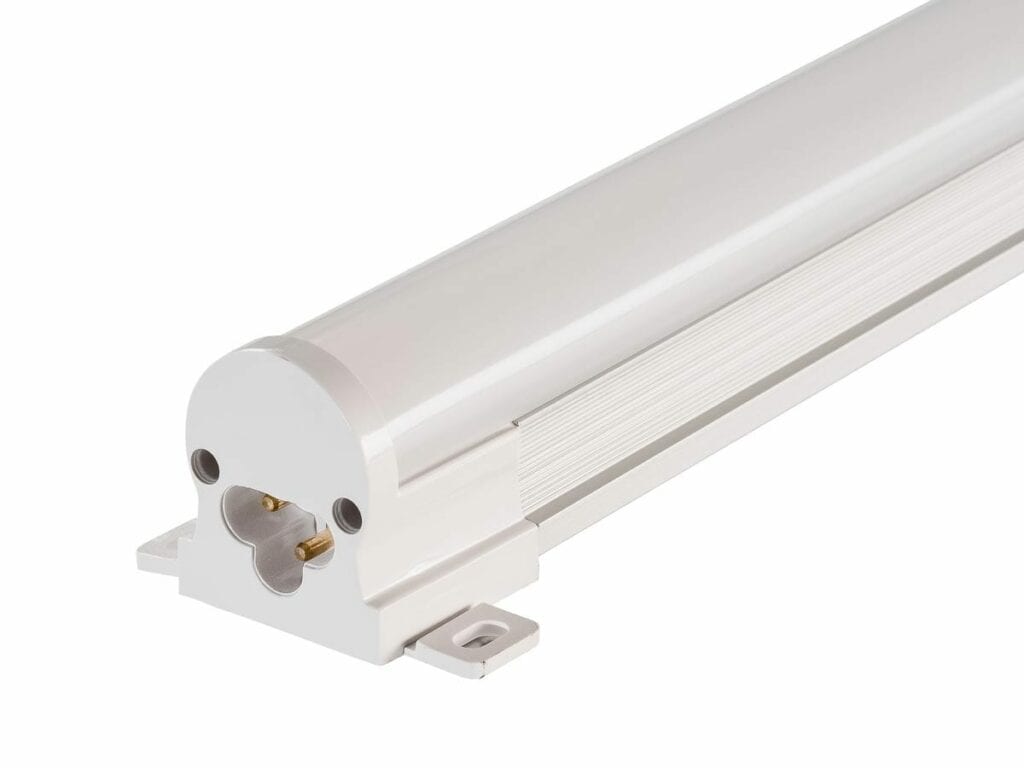

  • Male / Female Connections: Molded into end caps.
  • Linking: Up to 40 Rapid Link Bars can be linked using a single electrical connection.
  • Emergency Battery Backup: Optional. Contact factory.
  • Environment: Dry/Damp, for interior applications.
  • Ambient Range Operation: -34°C up to 50°C (-30°F up to 120°F).
  • CCT: 3500K, 4100K and 5000K standard, other CCT available (extended lead time).
  • CRI: >80 standard, other CRI available (extended lead time).
  • Lenses: Frosted polycarbonate lens. 180° beam angle. No glass.
  • Mounting: Stainless steel mounting clips. Integral mounting clip included. System mounting clip with 4” swivel arm available.
  • Dimming: 0-10V standard. Dim to OFF.
  • Sensors: Compatible with WattStopper, IR-TEC and McWong sensors, and Enocean switches.
  • Networked Control Options: Compatible with Avi-On networked controls and UltraLink SIG Bluetooth® with Mesh Networked controls.
  • Standard: 7-year product warranty.
  • ETL listed (UL 1598), CSA 22.2.
  • RoHS compliant.
  • DesignLights™ Consortium Standard.
  • RoHS compliant. ​​
  • EMI: Title 47 CFR 15 Class A, ICES-005. ​​
  • LM-79, LM 80 and TM-21 tests and reports are performed in accordance to IESNA standards, per TM-21​​.
