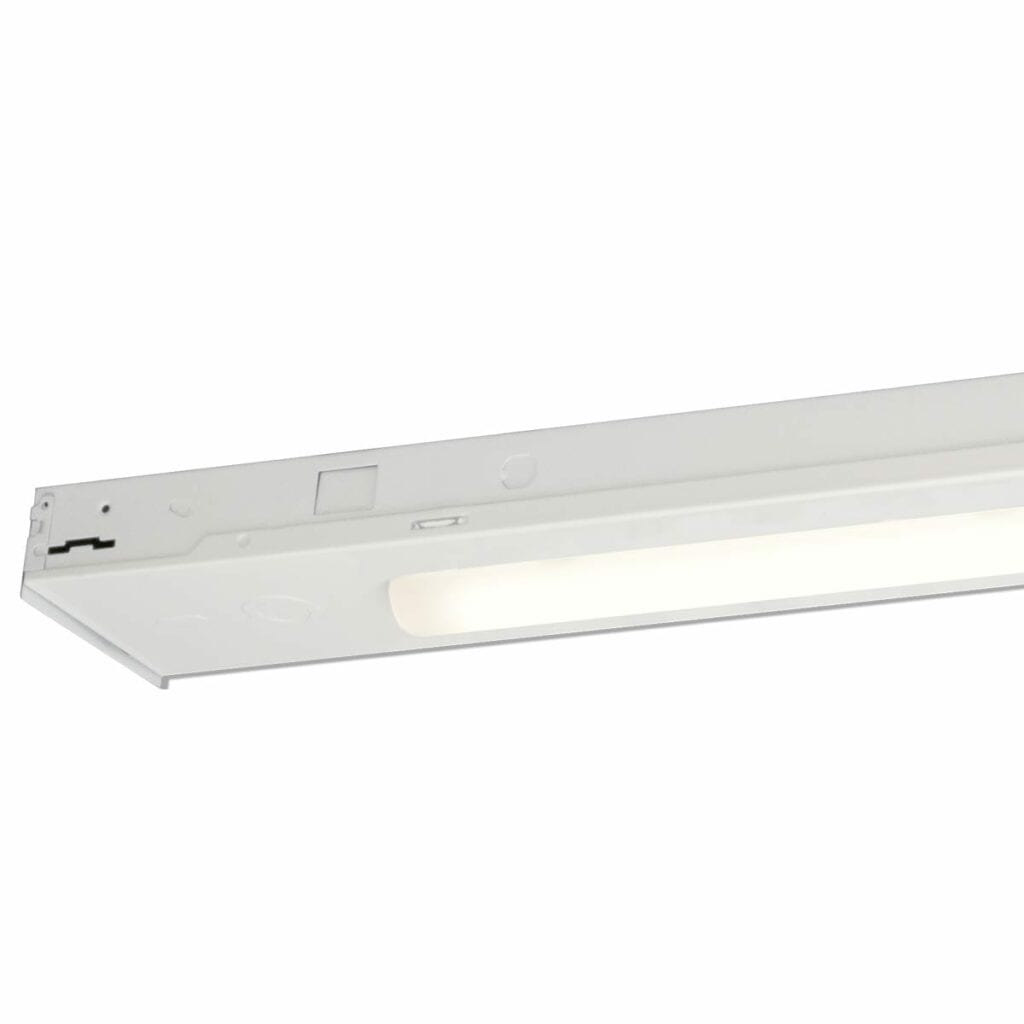

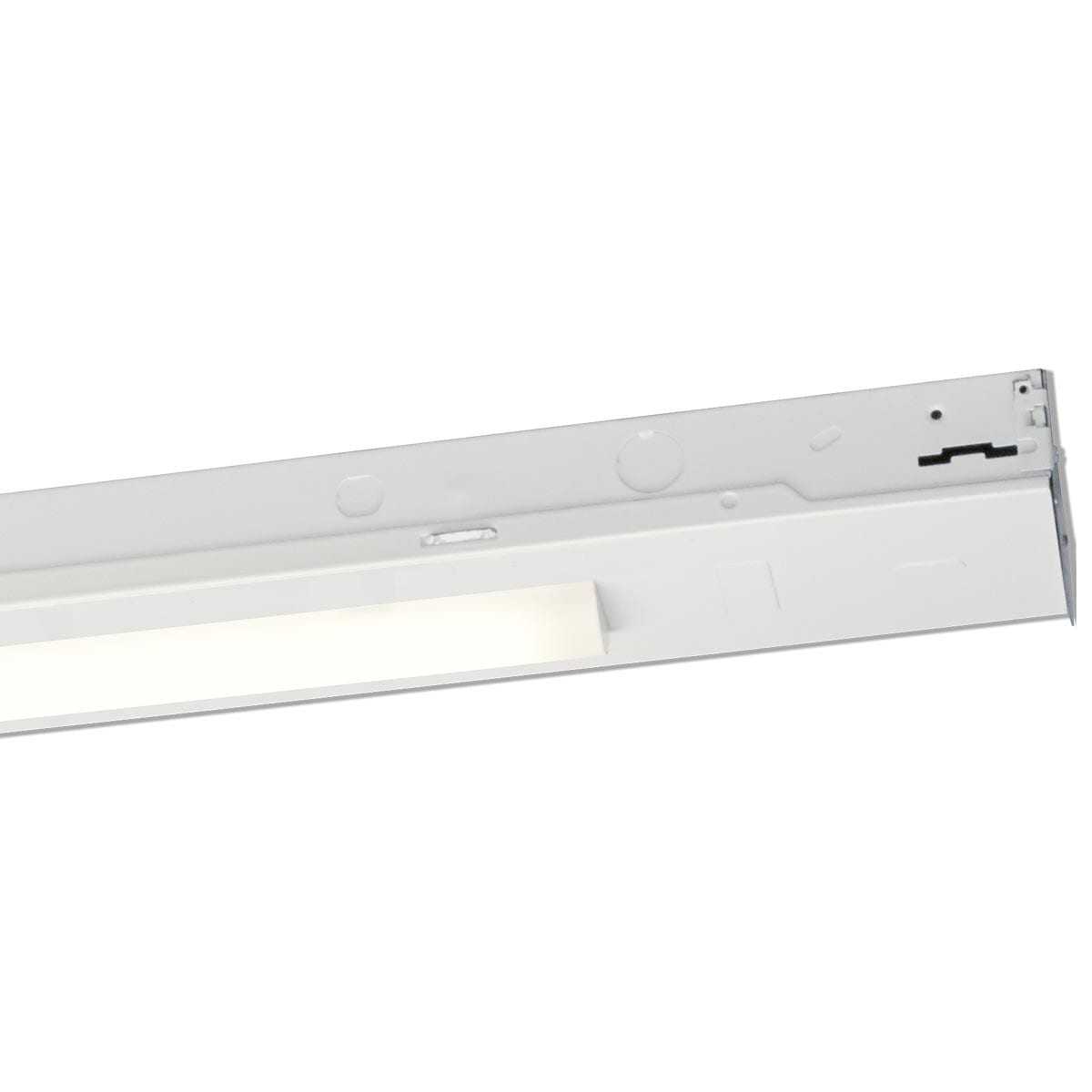

The newest generation of the Linear Series (LR3) delivers up to 16% higher efficacy than the previous model, providing more lumens per fixture while keeping the same dimensions and its superior optical uniformity with low glare. Fixtures can be installed independently or joined together for continuous-run lighting.
In applications where fluorescent strip housings are used, the Linear Retrofit Kits (RTR and RMW) are a fast and easy way to upgrade existing back boxes to LED.
Applications: Automotive Lighting, Commercial Lighting, Industrial Lighting, Office Lighting, Parking Garage Lighting, Warehouse Lighting.
Guaranteed Performance
Performance of the light fixture is guaranteed for 5 years, including lumen output (L70) and LED driver.
Universal Retrofit Kit
Options include a standalone fixture, a retrofit kit for standard linear back boxes and a Retro Multi Width Kit designed for multiple widths.
Continuous Row
Easily create an uninterrupted line of light by connecting multiple LR3 fixtures using included joiner pieces.
Performance
| Length | Lumen Output | Efficacy | Watts | Part Number |
|---|---|---|---|---|
| 4' | 3,351 | 161 | 21 | LR30S-A1-03K-04-50-80-FR |
| 4' | 4,750 | 160 | 30 | LR30S-A1-04K-04-50-80-FR |
| 4' | 6,282 | 153 | 41 | LR30S-A1-06K-04-50-80-FR |
| 8' | 6,703 | 168 | 40 | LR30S-A1-06K-08-50-80-FR |
| 8' | 9,499 | 169 | 56 | LR30S-A1-09K-08-50-80-FR |
| 12' | 10,054 | 175 | 58 | LR30S-A1-10K-12-50-80-FR |
| 8' | 12,563 | 157 | 80 | LR30S-A1-12K-08-50-80-FR |
| 12' | 14,249 | 176 | 81 | LR30S-A1-14K-12-50-80-FR |
Technical Specs
- Steel housing.
- Fixtures are all 4’ sections. Available for order in 4’, 8’ and 12’ lengths. 8’ and 12’ versions are attached with included bracket(s).
- Each fixture has 1 driver to maximize efficiency and value.
- Power Input: 120-277V (50/60Hz).
- Power Factor: Greater than 0.9 (0.96–0.99 typical).
- Total Harmonic Distortion: Less than 20%, 10% typical.
- Surge Protection: Minimum 2kV (standard). Additional surge protection up to 10kV is available.
- Emergency Battery Backup (EMB): Initial lumen output is 2200-
2400 lumens, thereafter EMB produces 1900-2000 lumens for a minimum of 90 minutes. 16 watts initial output. Temperature range 0°C to 45°C. Not to exceed ambient of fixture. Available on stand-alone fixture (FXT) only.
- Environment: Dry/Damp, for interior applications.
- Ambient Range Operation: -25°C up to 45°C (-13°F up to 113°F). For 08K-08, ambient range is -25°C up to 40°C
(-13°F up to 104°F).
- CCT: 3500K, 4000K and 5000K standard, other CCT available (extended lead time).
- CRI: 80 standard, other CRIs available upon request (extended lead time).
- Lenses: Frosted acrylic (standard). No Lens option available (recommended for indirect lighting only).
- Stand-alone Fixture (FXT): Cable Mount or Surface Mount (standard).
- RetroFit Kit (RTR): For standard back boxes. 4 3/8” wide. Utilizes existing housing, (no mounting kits available).
- Retro Multi Width Kit (RMW): For any back box from 3.25” to 5.25” in width. Utilizes existing housing.
All mounting options are suitable for continuous row.
- Dimming: 0-10V standard. Dimming range 100% to 10%.
- UltraLink Bluetooth® Controls: Advanced wireless controls available. Requires commissioning in the field, contact factory.
- Occupancy and Dimming Occupancy Sensors: Optional – factory installed photocell sensors. WattStopper standard, other options available upon request.
- 5-year product warranty including 5 years of guaranteed light levels (L70).
- ETL listed (UL 1598).
- RoHS compliant.
- DesignLights™ Consortium (DLC) listed.
- CAN/CSA C22.2 No. 250.13.
- LM-79, LM 80 and TM-21 tests and reports are performed in accordance to IESNA standards, per TM-21.
