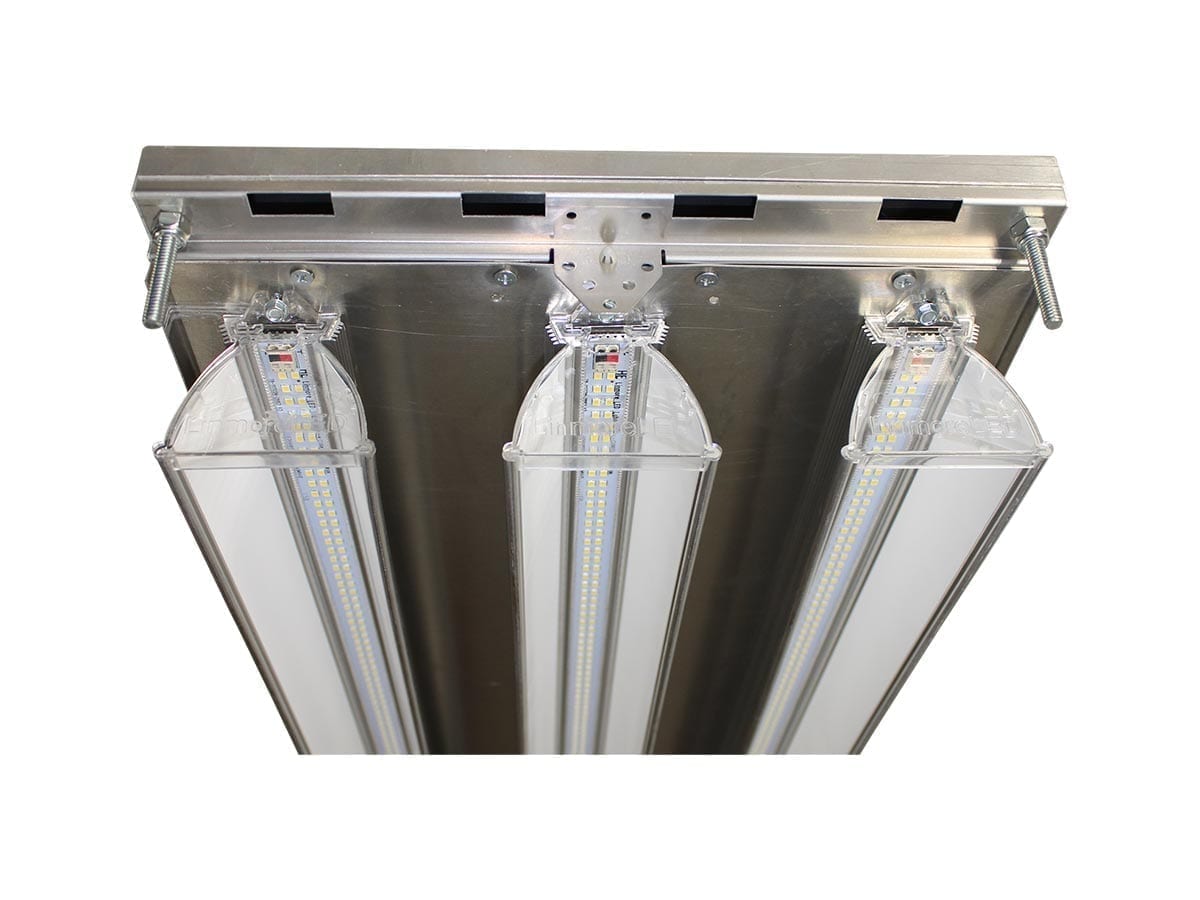

High Bay Retrofit Kit (HBR)

LED High Bay Retrofit System

The High Bay Retrofit System (HBR) is an innovative approach to going LED when you already own fluorescent high bay lighting. When your existing high bay fixtures are in good shape but the fluorescent tubes are costing you too much to maintain, retrofitting may be the best option. This retrofit involves replacing fluorescent tubes, reflectors, and ballasts with Linmore LED’s patented ParaBar™ Light Bars, LED drivers, and an adapter plate.

When the objective is to go LED by leveraging an existing fluorescent high bay light fixture and upgrading your high bay lighting to use the least amount of energy and the least amount of maintenance, and get an industry leading warranty, the Linmore HBR System is the clear choice.

Applications: Commercial Lighting, Industrial Lighting, Office Lighting, Warehouse Lighting.

Reduce Operating Costs

When existing high bay fixtures are in good shape but the fluorescent tubes are costing too much to maintain, retrofitting may be the best option.

Quick & Easy Retrofit

Replaces fluorescent tubes, reflectors, and ballasts with Linmore LED’s patented ParaBar™ Light Bars, LED drivers, and an adapter plate.

Quality Components

Based on the ParaBar™ Light Bars, featuring high efficacy LEDs mechanically bonded to an extruded aluminum bar for optimal heat dissipation.

Performance

# of Bars Lumen Output Efficacy Watts Part Number
2 10,171 138 74 LL-HBR-2-50K-72W
2 12,072 135 90 LL-HBR-2-50K-88W
3 15,100 137 110 LL-HBR-3-50K-110W
3 17,820 135 132 LL-HBR-3-50K-132W
4 23,760 135 176 LL-HBR-4-50K-176W
High Bay Retrofit Kit (HBR)
High Bay Retrofit Kit (HBR)

Technical Specs

  • Heat Sinks: Made of 6063 T5 extruded aluminum with multiple fins and large surface area for superior heat dissipation.
  • Light Engine: ParaBars™ Light Bars U.S. Patent No. 9,752,735. Known for their high performance and superior heat dissipation. 120 surface mount light emitting diodes per ParaBar™.
  • LED Boards: Made of aluminum core and mechanically bonded to the aluminum extrusion heat sink.
  • LEDs: Only high quality LEDs are used to deliver maximum light output and longevity.
  • Adaptive Design: Add or remove ParaBars™ as area needs change over time.
  • Assembled in the USA.
  • 120-277V (50/60Hz) standard. 347-480V optional.
  • Power Factor: Greater than 0.9 (0.99 typical).
  • Total Harmonic Distortion: Less than 9%.
  • Environment: Dry/Damp, for interior applications.
  • Ambient Range Operation: -40°C up to 57°C (-40°F up to 135°F).
  • CCT: 3500K standard, other CCT available (extended lead time).
  • CRI: >80 standard.
  • Lenses: Parabolic shape with clear polycarbonate end caps for maximum light output.
  • Retrofit kit for existing fluorescent high bay fixtures. Kit includes ParaBar™ Light Bars and LED drivers. Optional adapter plate available.
  • Dimming: 0-10V standard. Dim to OFF.
  • Sensors: Compatible with WattStopper and McWong sensors, and Enocean switches.
  • Networked Control Options: Compatible with Avi-on networked controls and UltraLink SIG Bluetooth® with Mesh Networked Controls.
  • Standard: 14-year warranty on the light bar. 5-year warranty on the LED driver.
  • ETL listed (UL 1598), CSA 22.2.
  • RoHS compliant.
  • DesignLights™ Consortium Premium.
  • cUL.
  • LM-79, LM 80 and TM-21 tests and reports are performed in accordance to IESNA standards, per TM-21​​.
