Easy Clean High Bay (ECH)

LED High Bay, Wet Rated

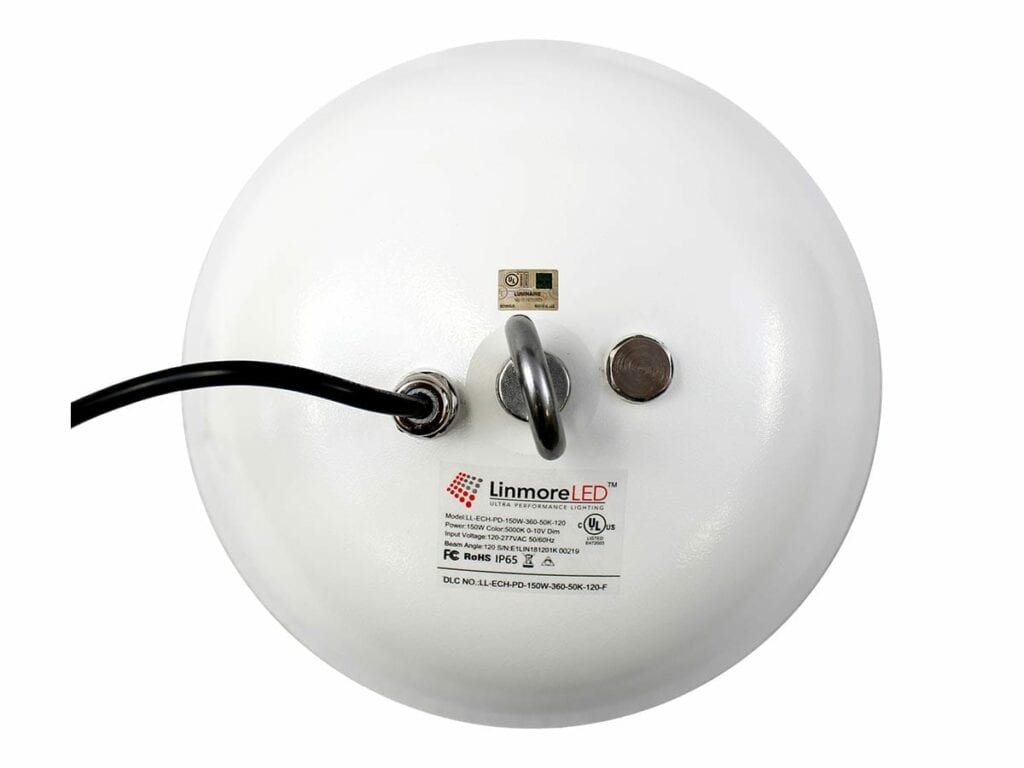

The Easy Clean High Bay (ECH) is a round, domed aluminum enclosure designed for the easy run off of sanitation processes. The no-cavity design prevents dirt, debris, and moisture from accumulating. The enclosure is IP65 rated and suitable for both wet and dry locations. A pressure relief valve is used to offset internal air pressure changes and prevent condensation.

High efficacy LEDs and a frosted polycarbonate lens provide ample, soft lighting with even distribution and glare reduction. A stainless steel eye-bolt and hardware finish the ECH for harsh conditions. When the objective is to utilize an easy-to-clean high bay with durability and features overlooked by others, the Linmore ECH is the clear choice.

Applications: Food Processing Lighting, Industrial Lighting, Warehouse Lighting.

Washdown & Wet Location

The no-cavity design prevents dirt, debris, and moisture from accumulating. IP65 rated enclosure, suitable for both wet and dry locations.

Easy to Clean

The round, domed aluminum enclosure allows an easy run-off of sanitation processes in food processing applications. NSF certified.

Pressure Relief Valve

Prevents condensation building up inside the fixture by offsetting the internal air pressure changes.

Performance

Lumen Output Efficacy Watts Part Number
19,602 129 152 LL-ECH-PD-150W-360-50K-120-F

Technical Specs

  • Housing: Round, domed aluminum for the easy run off of sanitation processes and with a no-cavity design to prevent dirt, debris, and moisture from accumulating.
  • Materials: Aluminum enclosure. Stainless steel hardware. Polycarbonate lens (no glass).
  • Pressure Relief Valve: Offsets the internal air pressure changes to prevent condensation inside the fixture.
  • Cord: 6’ SO cord included.
  • LEDs: Only high quality LEDs are used to deliver maximum light output and longevity.
  • Power Input: 120-277V (50/60Hz). 347-480 (50/60Hz) available as an option with extended lead time.
  • Power Factor: Greater than 0.9 (0.99 typical).
  • Total Harmonic Distortion: Less than 10% typical.
  • Surge Protection: Optional 20KA integral surge suppression.
  • Battery Backup (BB): Available as an option.
  • Environment: Washdown and wet locations. Designed for harsh locations. IP67 rated. IK08 rated. NSF certified.
  • Ambient Range Operation: -40°C up to 50°C (-40°F up to 120°F).
  • CCT: 5000K standard, other CCT available (extended lead time).
  • CRI: >70.
  • Lenses: Frosted polycarbonate. 120° beam angle. Provides ample, soft lighting with even distribution and glare reduction.
  • Hanging: Field installed mounting kit includes hook.
  • Dimming: 0-10V standard. Dim to OFF.
  • Sensors: Compatible with WattStopper, IR-TEC and McWong sensors, and Enocean switches.
  • Networked Control Options: Compatible with Avi-on networked controls and UltraLink SIG Bluetooth® with Mesh Networked controls.
  • Standard: 5-year product warranty covers fixture and LED driver.
  • ETL listed (UL 1598), CSA 22.2.
  • RoHS compliant.
  • IP65 rated.
  • IK08 rated.
  • NSF certified.
  • DesignLights™ Consortium Premium.
  • RoHS compliant. ​​
  • EMI: Title 47 CFR 15 Class A, ICES-005. ​​
  • LM-79, LM 80 and TM-21 tests and reports are performed in accordance to IESNA standards, per TM-21​​.
