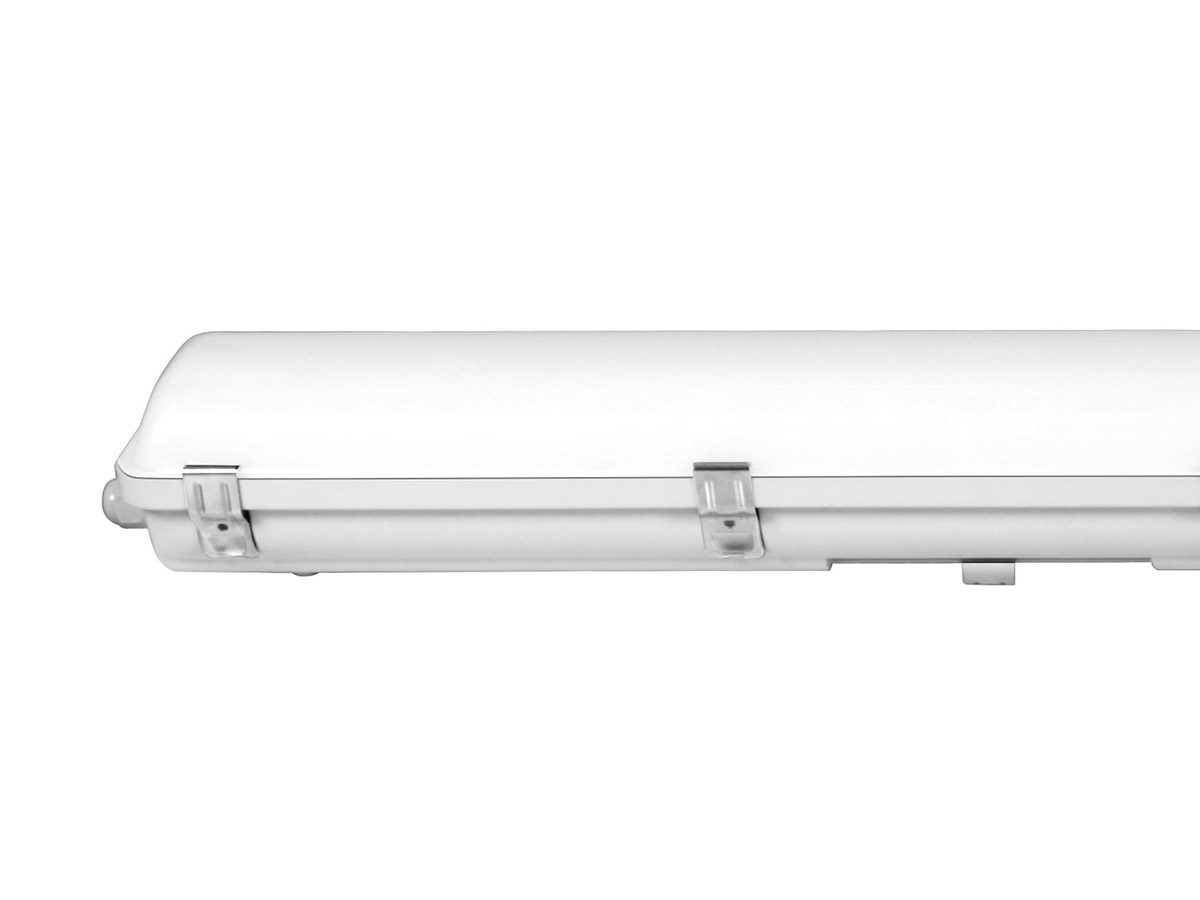

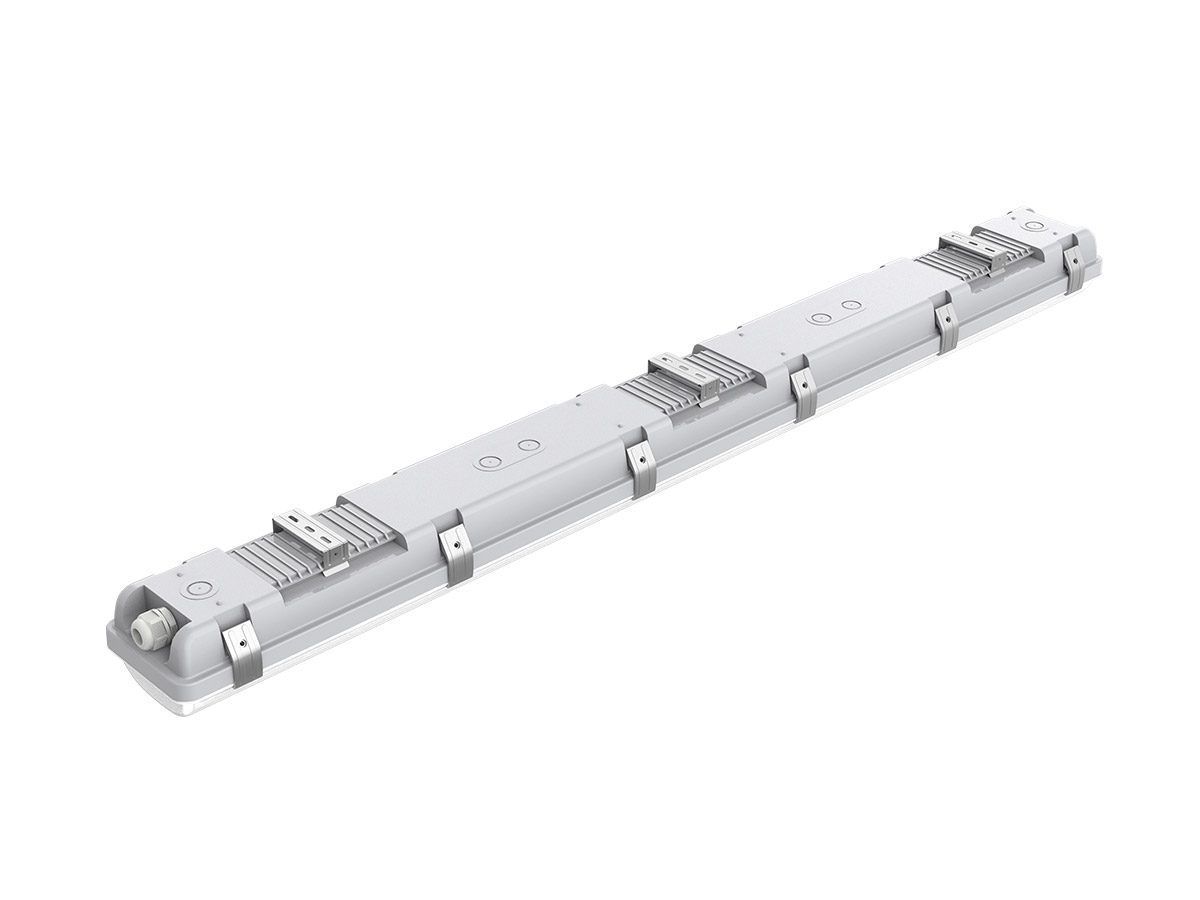

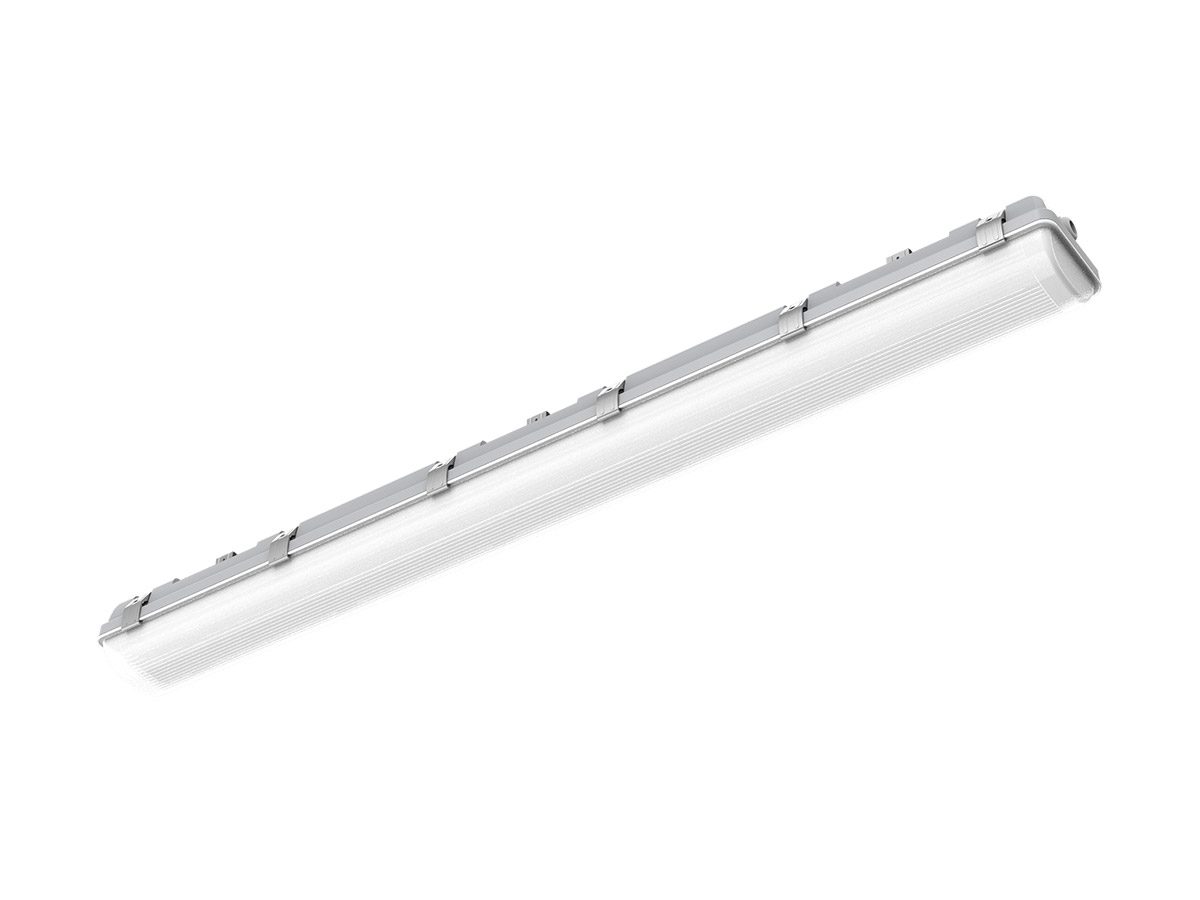

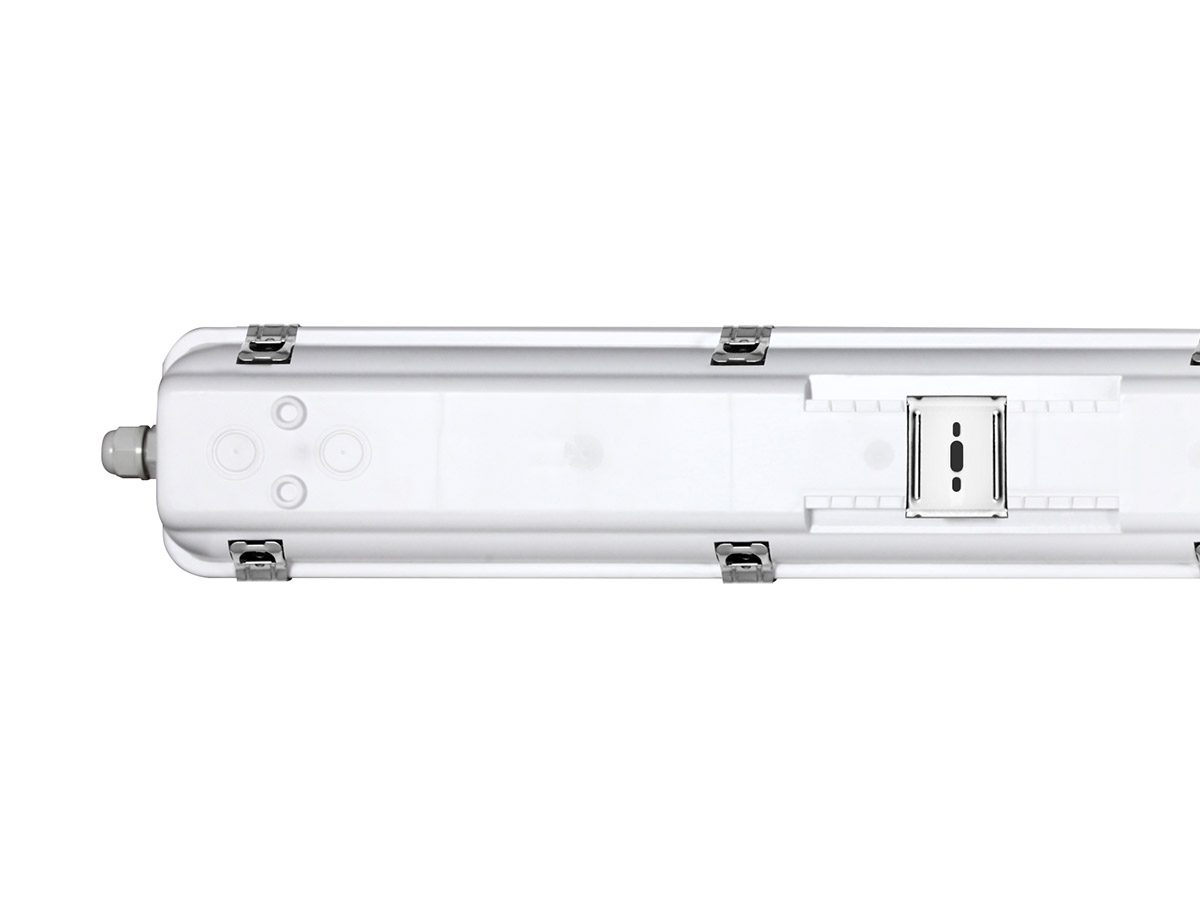

Built for harsh environments, the Ace LED Vaportight fixture delivers reliable, long-lasting illumination with exceptional protection against dust, high-pressure water, corrosion, UV exposure, and impact. Its rugged fiberglass housing and corrosion-resistant stainless steel latches ensure long-term durability in demanding applications, from washdown areas to exposed outdoor installations.
Designed for maximum flexibility, the AV2 features selectable wattage and selectable CCT, allowing one fixture to adapt to multiple lighting requirements while simplifying inventory and installation. Rated IP65 and compliant with NSF and NEMA 4X standards, the Ace Vaportight provides dependable performance in wet, dusty, and corrosive environments where reliability is critical.
Ideal for manufacturing facilities, food processing areas, parking structures, cold storage, and utility spaces, the Ace LED Vaportight delivers uncompromising performance, lower operating costs, and dependable illumination you can count on for years.
Applications: Commercial Lighting, Food Processing Lighting, Industrial Lighting, Outdoor Lighting, Parking Garage Lighting, Warehouse Lighting.
Selectable Wattage
The fixture has a switch with three output power options, allowing to select the desired lumen output and energy consumption.
Selectable CCT
Simply use the switch directly on the fixture to select the desired color temperature for your space: 3500K, 4000K, or 5000K.
IP Rated
IP65 rated. Meets NSF Splash Zone 2 and NSF/ANSI STD2. Handles high pressure water up to 1,500psi.
Technical Specs
CONSTRUCTION
ELECTRICAL
OPERATION
OPTICS
MOUNTING
CONTROLS
WARRANTY
LISTINGS & CERTIFICATIONS
CONSTRUCTION
- Housing: UL 94 5VA fiberglass housing (will not melt or burn). Weatherability (f1) rated. Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746. Capable of handling high pressure water up to 1,500psi.
- Latches: 304 stainless steel.
ELECTRICAL
- Power Input: 120-277V (50/60Hz).
- Power Factor: Greater than 0.9.
- Total Harmonic Distortion: Less than 20%.
- Emergency Battery Backup: 9 Watts output. Fixtures with EMB will produce ~1,100lm (130 LPW) for a minimum of 90 minutes.
Field installed. Available as an accessory, sold separately.
OPERATION
Environment: Suitable for indoor and outdoor applications. Dust-tight and protected against water jets and heavy splash (IP65). Rated for wet locations.
Ambient Range Operation: -20°C up to 40°C (-4°F up to 104°F).
OPTICS
- CCT: Selectable: 3500K, 4000K, 5000K.
- CRI: 80+ standard.
- Lens: UV-stabilized polycarbonate, high impact-resistant, low-glare prismatic design. Available in Clear and Frosted, 120° beam angle.
MOUNTING
- Surface Mount: Surface mount kit available as an accessory.
- Suspension Mount: Suspended mount kit available as an accessory.
CONTROLS
- Dimming: 0-10V standard. Dim to Off. Dimming range 100% to 5%.
WARRANTY
- 5 Year Warranty: The fixture is guaranteed for 5 years free of defects in materials and workmanship, including LEDs and driver. “Defective” is considered if ten percent (10%) or more of the LEDs, per product, are non‐operating LEDs, or color temperature has shifted more than 500° Kelvin within the warranty period. See terms and conditions at https://linmoreled.com/warranty
LISTINGS & CERTIFICATIONS
- IK08 rated.
- IP65 rated.
- NEMA 4X rated.
- Rated and certified to meet NSF Splash Zone 2
- ETL listed for damp locations.
- Suitable for wet locations.
- RoHS compliant.
- DesignLights™ Consortium Premium.
Fixture Performance
| Size | Selectable Watts | Lumen Output | Efficacy | Part Number |
|---|---|---|---|---|
| 4FT | 30 / 40 / 50 | 3,900 / 5,200 / 6,500 | 130 | AV20S-A2-ADJ-4N-ADJ-80-CL-LV-FXT-10V |
