Ace LED Strip Conversion Kit (SCK)

LED Strip, Retrofit System

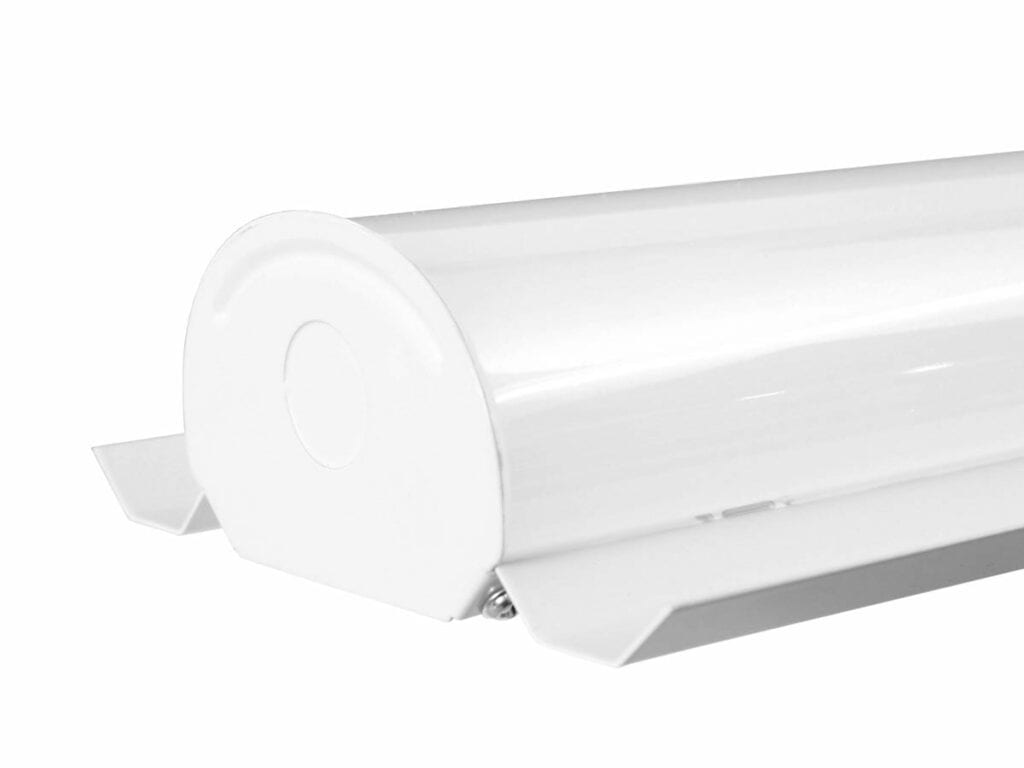

The Ace LED Strip Conversion Kit (SCK) from Linmore LED is a complete retrofit system that transforms an industrial fluorescent strip light into a modern LED fixture with a refined commercial aesthetic. Each SCK is a 4’ system including a channel cover that works for both 4.25” and 5.25” wide strip fixtures, mounting brackets, high efficacy LEDs, and a frosted lens. For 8’ strip fixtures, use two SCK’s.

The SCK allows facilities to get all the benefits of going LED including efficiency, better quality light, and aesthetic rejuvenation without the high cost of buying and installing new strip lighting. When the objective is to modernize industrial strip lighting while upgrading to LED, Linmore’s SCK is the clear choice.

Applications: Automotive Lighting, Commercial Lighting, Industrial Lighting, Office Lighting, Warehouse Lighting.

Refined Commercial Aesthetic

Improve the look of your facility with a modern, sleek design with high efficacy and reduced wattage.

Quality Components

Fixture includes mounting brackets, high-efficacy LEDs and a frosted lens.

Multiple Conversion Options

Each SCK is a 4’ system including a channel cover. Works for both 4.25” and 5.25” wide strip fixtures.

Performance

Lumen Output Efficacy Watts Part Number
2,597 173 15 AL-SCK-4-50K-15W
3,774 172 22 AL-SCK-4-50K-22W
4,424 170 26 AL-SCK-4-50K-26W
6,114 170 36 AL-SCK-4-50K-36W

Technical Specs

  • All-Aluminum Construction: The all-aluminum constructed light bars will keep the LEDs running cool for longevity. Every LED strip is secured to an aluminum extrusion to aid in thermal transfer.
  • LED Boards: LEDs are populated onto an aluminum core board creating a steady flow of heat into the aluminum bar.
  • Assembled in the USA offered as an option.
  • 120-277V or 200-480V (50/60Hz), typical, depending on model.
  • Power Factor: Greater than 0.9 (0.99 typical).
  • Total Harmonic Distortion: Less than 10%.
  • Standard is 3kV for LED drivers. Additional surge protection of 10kA and 20kA available as options.
  • Battery Backup: Emergency Backup Driver with Battery (LL-BBU-25W-001) provides 25 watts output for >90 minutes, mounted to top of driver cover.
  • Environment: Dry/Damp, for interior applications.
  • Ambient Range Operation: -40°C up to 55°C (-40°F up to 130°F).
  • CCT: 3500K, 4100K and 5000K standard, other CCT available (extended lead time).
  • CRI: >70 standard, other CRI available (extended lead time).
  • Lenses: Clear, Frosted and Aisle.
  • Cable suspension, pendant mount and Winsta female connection.
  • Dimming: 0-10V standard. Dim to OFF.
  • Sensors: Compatible with WattStopper, IR-TEC and McWong sensors, and Enocean switches.
  • Networked Control Options: Compatible with Avi-on networked controls and UltraLink SIG Bluetooth® with Mesh Networked controls.
  • Standard: 10-year warranty on all parts, including the LED driver.
  • ETL listed (UL 1598), CSA 22.2.
  • RoHS compliant.
  • cULus.
  • EMI: Title 47 CFR 15 Class A, ICES-005. ​​
  • LM-79, LM 80 and TM-21 tests and reports are performed in accordance to IESNA standards, per TM-21​​.
