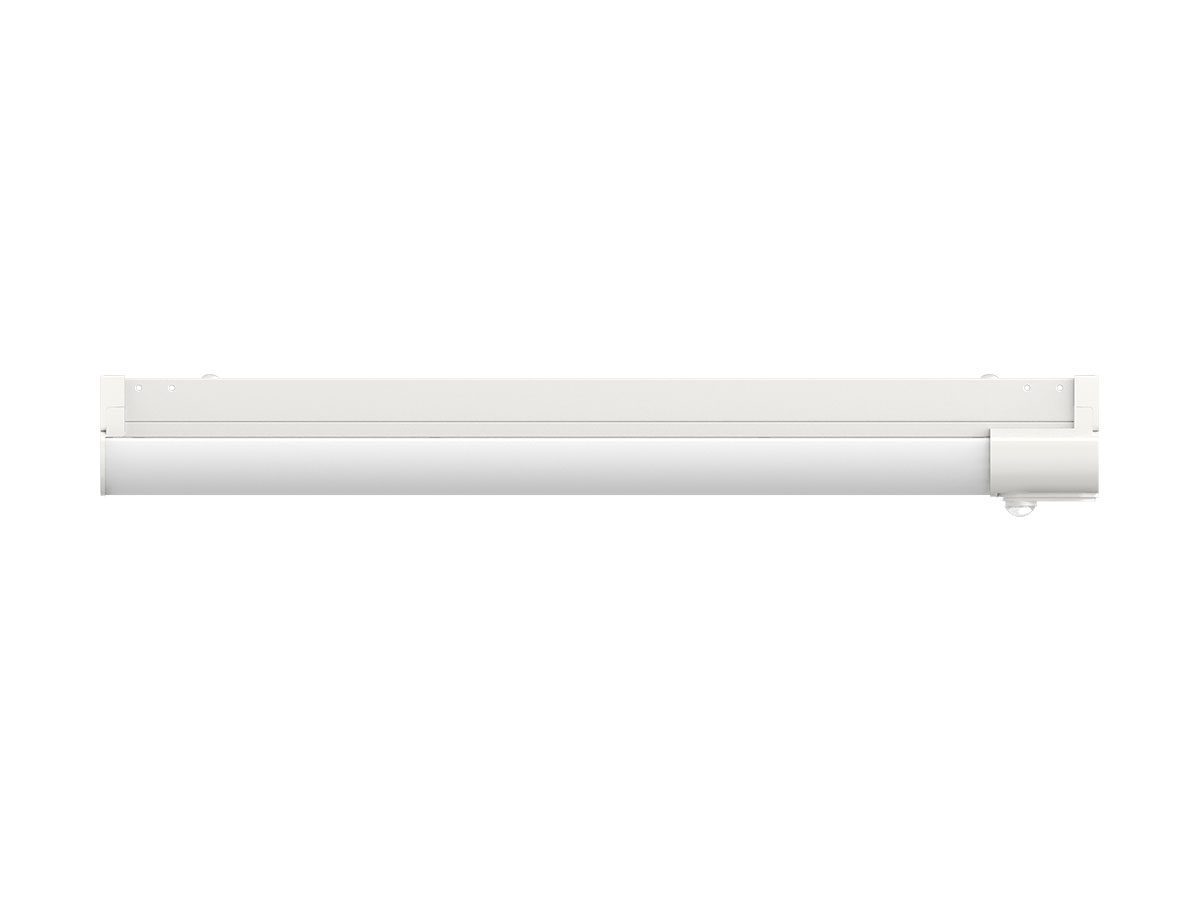

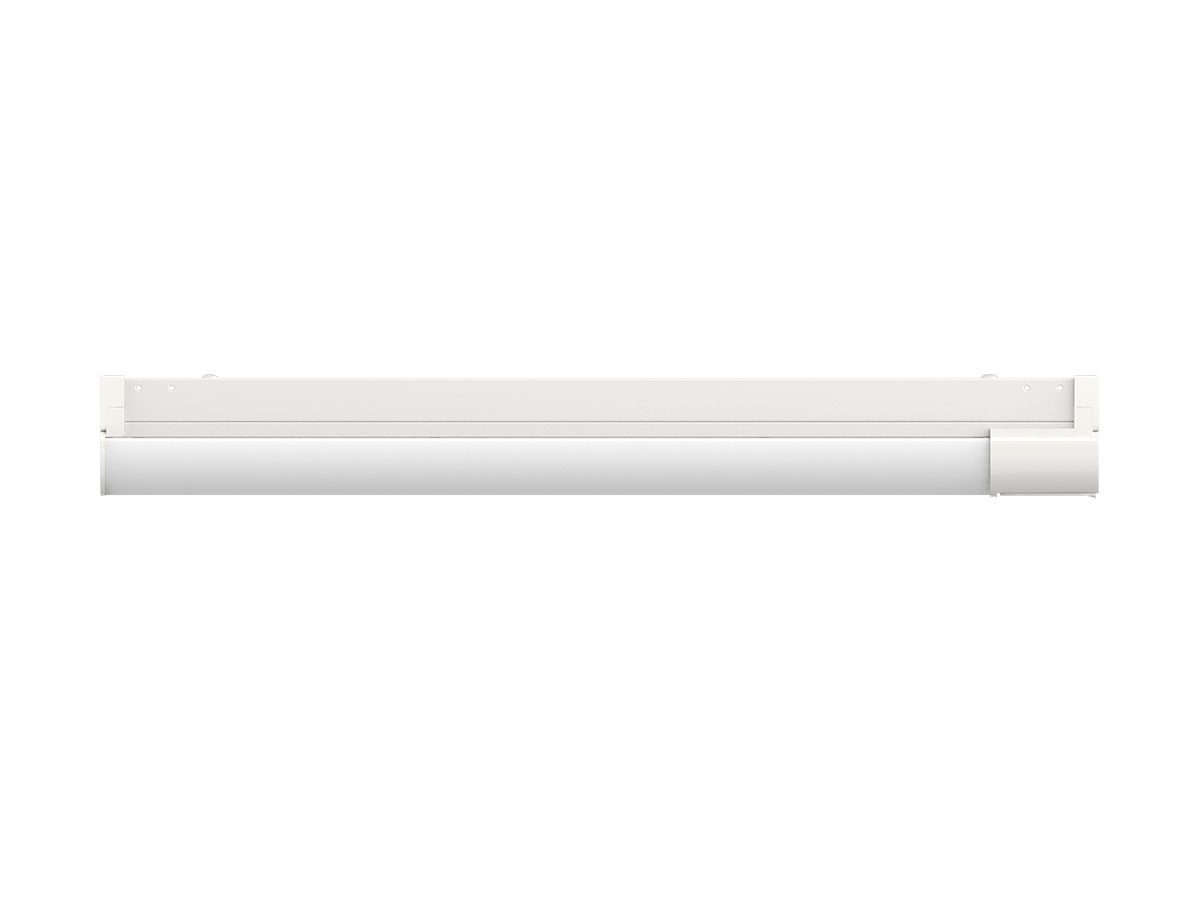

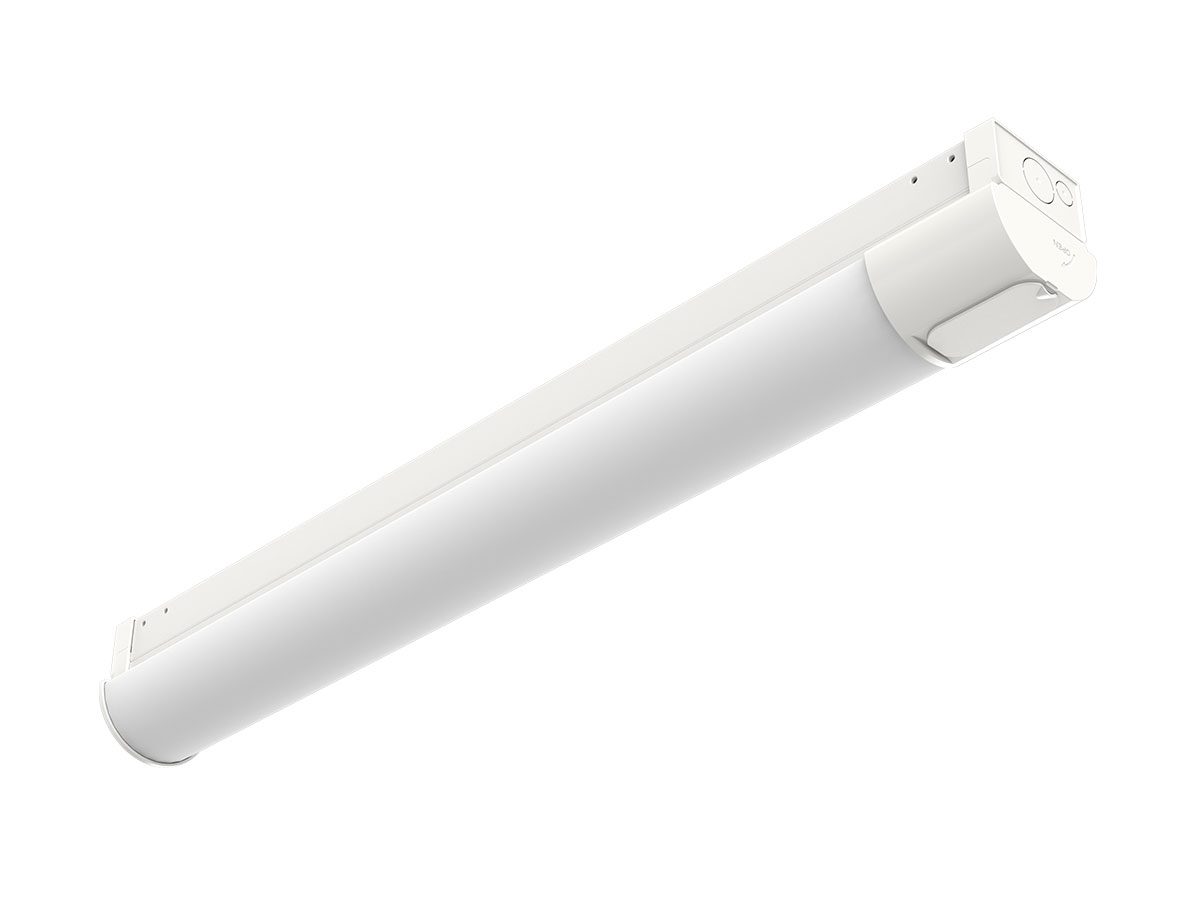

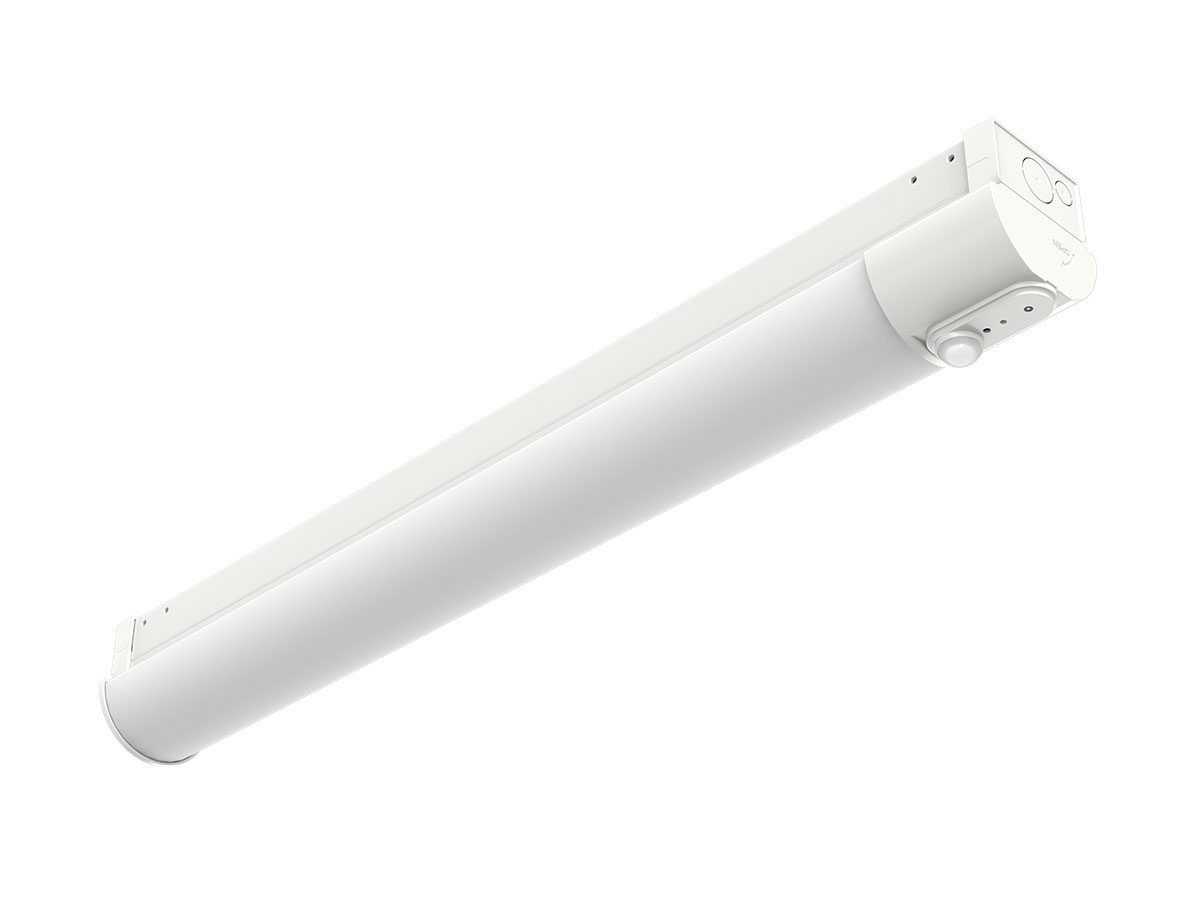

The new Ace LED Strip (AS2) is designed to deliver exceptional performance and modern aesthetics. The minimalist profile seamlessly integrates into any space, providing a clean, contemporary look.
Its high-quality frosted diffuser provides consistent, low-glare lighting, enhancing visibility and comfort in various applications.
The strip is available in three lengths: a 2ft model with adjustable wattage settings of 10W, 15W, and 20W, a 4ft model with 25W, 35W, and 45W, and an 8ft model with 65W, 75W, and 90W. Users can easily select the color temperature (CCT) using a simple switch, choosing between 3500K, 4000K, or 5000K to adapt to different lighting needs.
Additionally, the EZ-Connect™ receptacle features a snap-in system that allows for easy integration of compatible motion sensors and UltraLink Bluetooth controls at any time.
Applications: Automotive Lighting, Commercial Lighting, Industrial Lighting, Office Lighting, Parking Garage Lighting, Warehouse Lighting.
Selectable Wattage
Each fixture has a switch with three output power options, allowing to select the desired lumen output and energy consumption.
CCT Adjustable
Simply use the switch directly on the fixture to select the desired color temperature for your space: 3500K, 4000K, or 5000K.

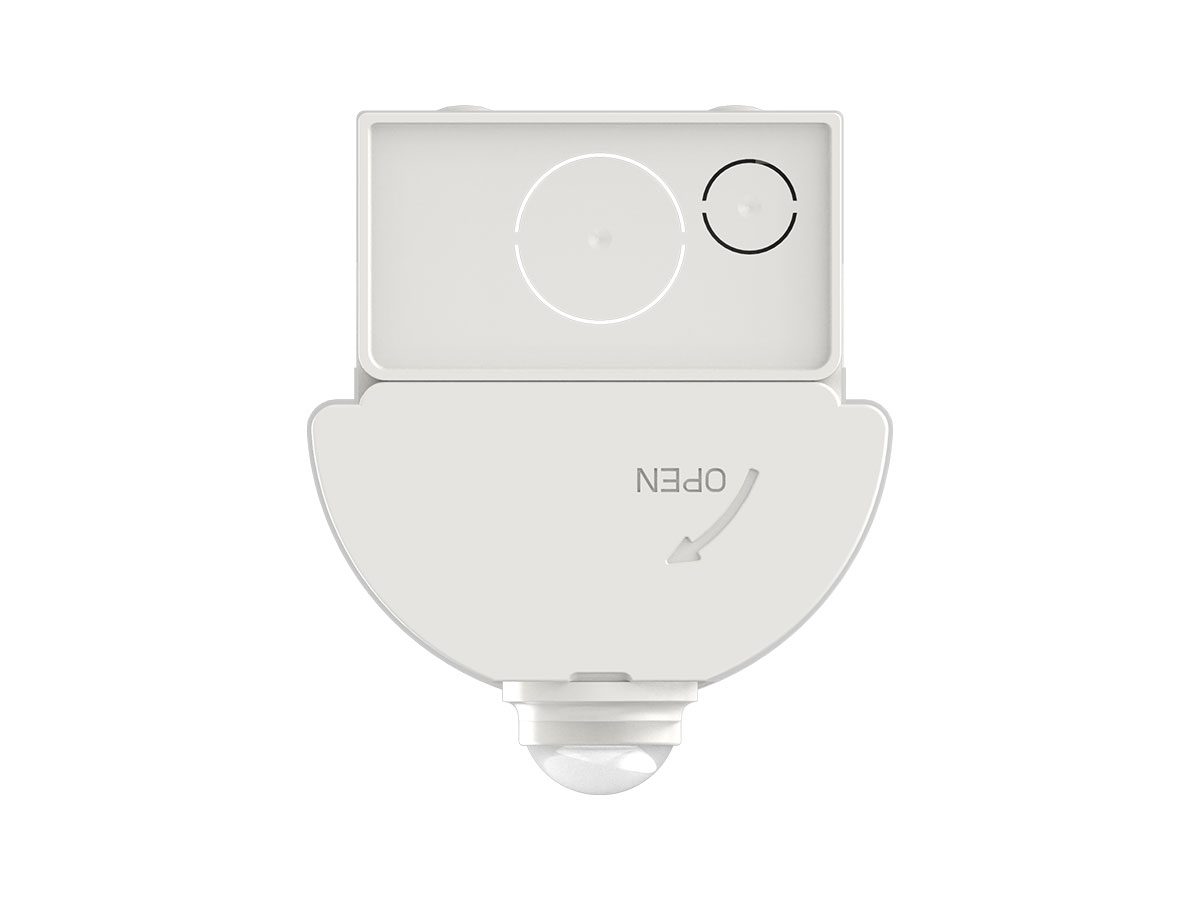

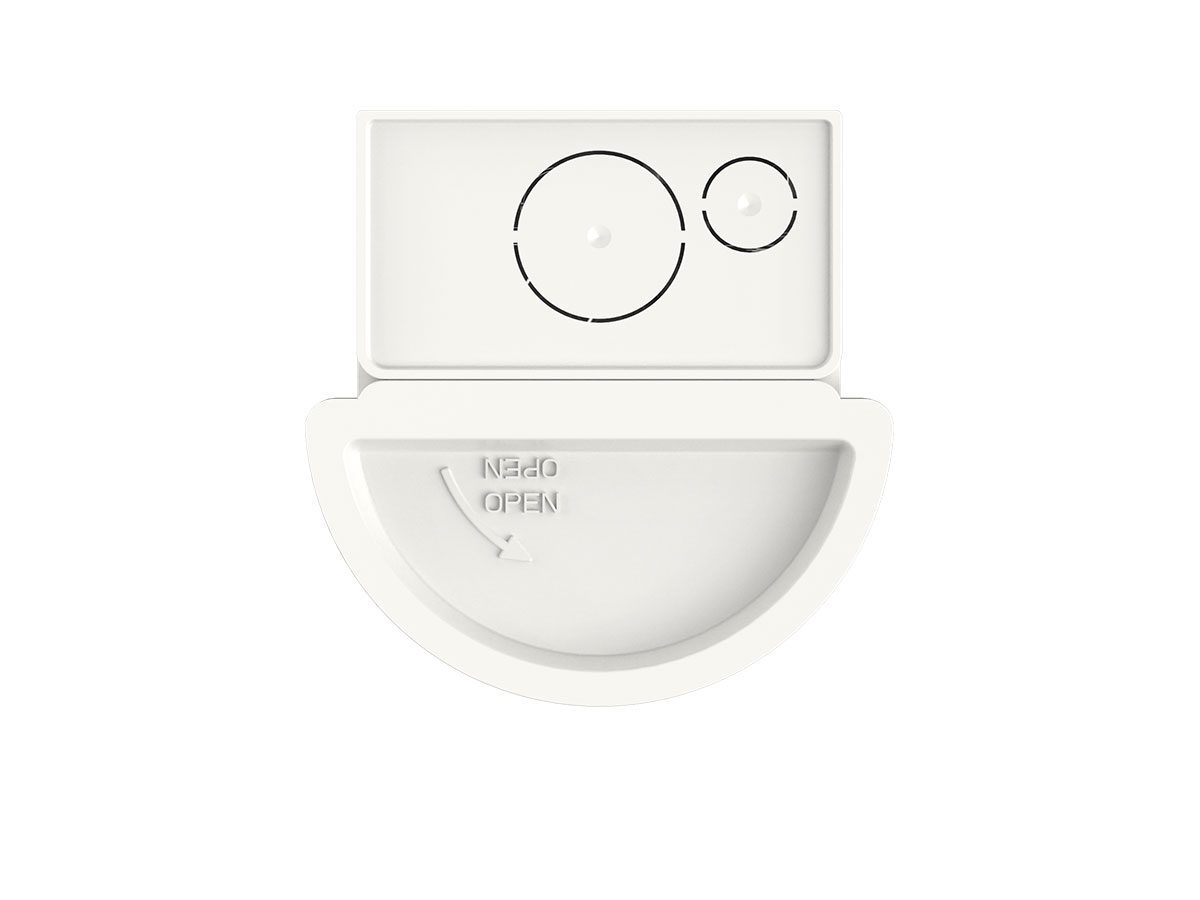

EZ-Connect™ Receptacle
The simplest and fastest way to add sensors and UltraLink wireless controls at any time in the field. Snap-in system, no tools or wiring needed.
Performance
| Size | Lumen Output | Efficacy | Watts | Part Number |
|---|---|---|---|---|
| 2ft | 1,300/1,950/2,600 | 130 | 10/15/20 | AS20S-A2-ADJ-02-ADJ-80-FR-LV-FXT-EZ40-10V |
| 4ft | 3,250/4,500/5,800 | 130 | 25/35/45W | AS20S-A2-ADJ-04-ADJ-80-FR-LV-FXT-EZ40-10V |
| 8ft | 8,500/9,750/11,700 | 130 | 65/75/90W | AS20S-A2-ADJ-08-ADJ-80-FR-LV-FXT-EZ40-10V |
Technical Specs
CONSTRUCTION
ELECTRICAL
OPERATION
OPTICS
MOUNTING
CONTROLS
WARRANTY
LISTINGS & CERTIFICATIONS
CONSTRUCTION

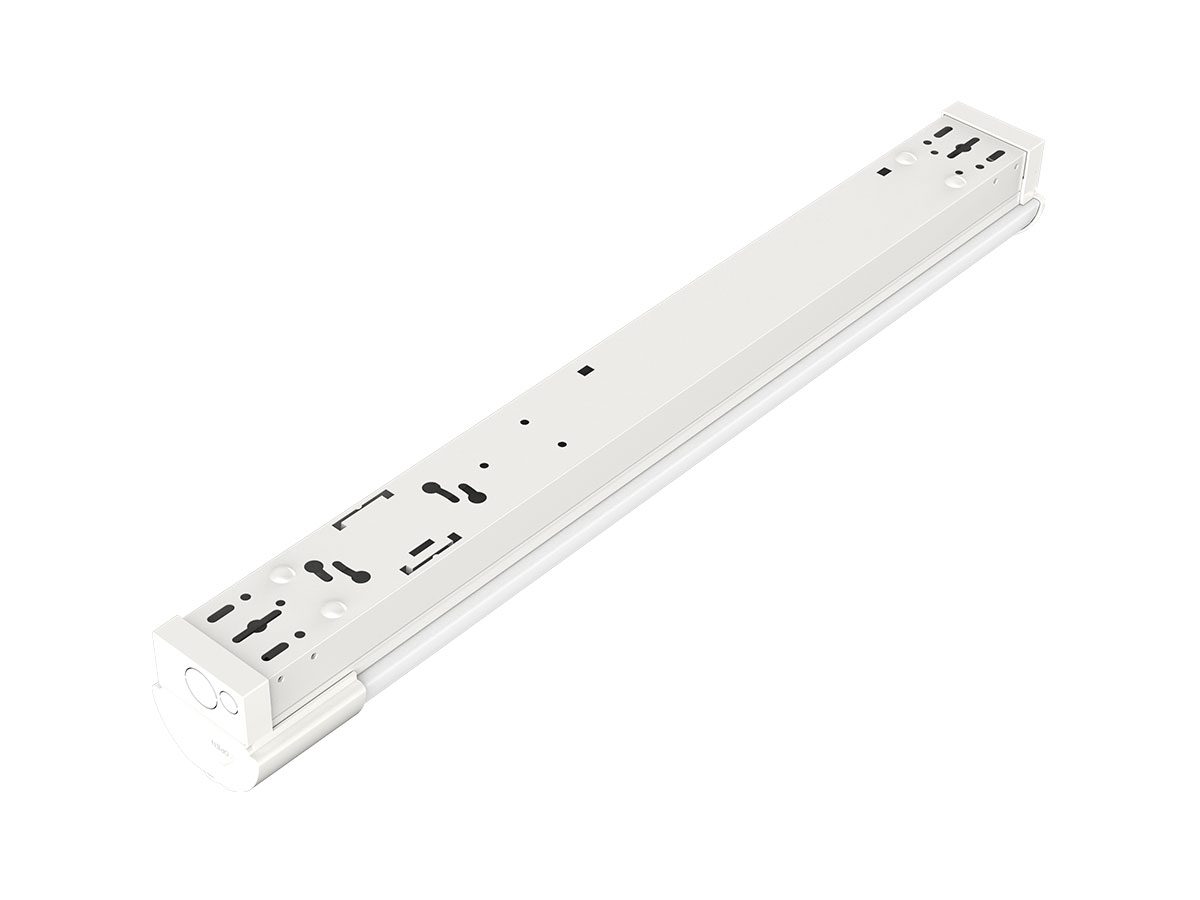

- Housing: Steel. Low profile design.
- Housing Color: White.
- Length: 2ft, 4ft, and 8ft models available.
- Hinges: Tooless access for easy wiring and maintenance.
- Knockouts: One 1/2” NPT knockout on each side
- EZ-Connect™ Receptacle: The simplest and fastest way to add sensors and wireless controls at any time on the field. Snap-in system, no tools or wiring needed.
ELECTRICAL
- Power Input: 120-277V (50/60Hz).
- Power Factor: Greater than 0.9.
- Total Harmonic Distortion: Less than 20%.
- Emergency Battery Backup: EMB has 9 watts output, producing ~1,100 lumens for 90 minutes. Sold as an accessory (field installed).
OPERATION
- Environment: For interior applications, dust-resistant, listed for damp locations.
- Ambient Range Operation: -20°C up to 40°C (-4°F up to 104°F).
OPTICS
- CCT: Selectable via switch 3500K, 4000K, 5000K.
- CRI: 80+ standard.
- Lens: PC diffuser. Frosted. 134° beam angle.
MOUNTING
- Surface Mount: Standard.
- Suspension Mount: Suspended mount kit available as an accessory.
CONTROLS
- Dimming: 0-10V standard. Dim to Off. Dimming range 100% to 5%.
- Occupancy Sensors: PIR sensor, On/Off/Dim. EZ-Connect™ Snap-in system for field installation.
- Networked Lighting Controls: UltraLink Wireless Controls with Bluetooth® NLC Mesh technology. EZ-Connect™ Snap-in system for field installation.
WARRANTY
- 5 Year Warranty: The fixture is guaranteed for 5 years free of defects in materials and workmanship, including LEDs and driver. “Defective” is considered if ten percent (10%) or more of the LEDs, per product, are non‐operating LEDs, or color temperature has shifted more than 500° Kelvin within the warranty period. See terms and conditions at https://linmoreled.com/warranty
LISTINGS & CERTIFICATIONS
- UL listed.
- RoHS compliant.
- UL listed for damp locations.
- DesignLights™ Consortium Premium.
