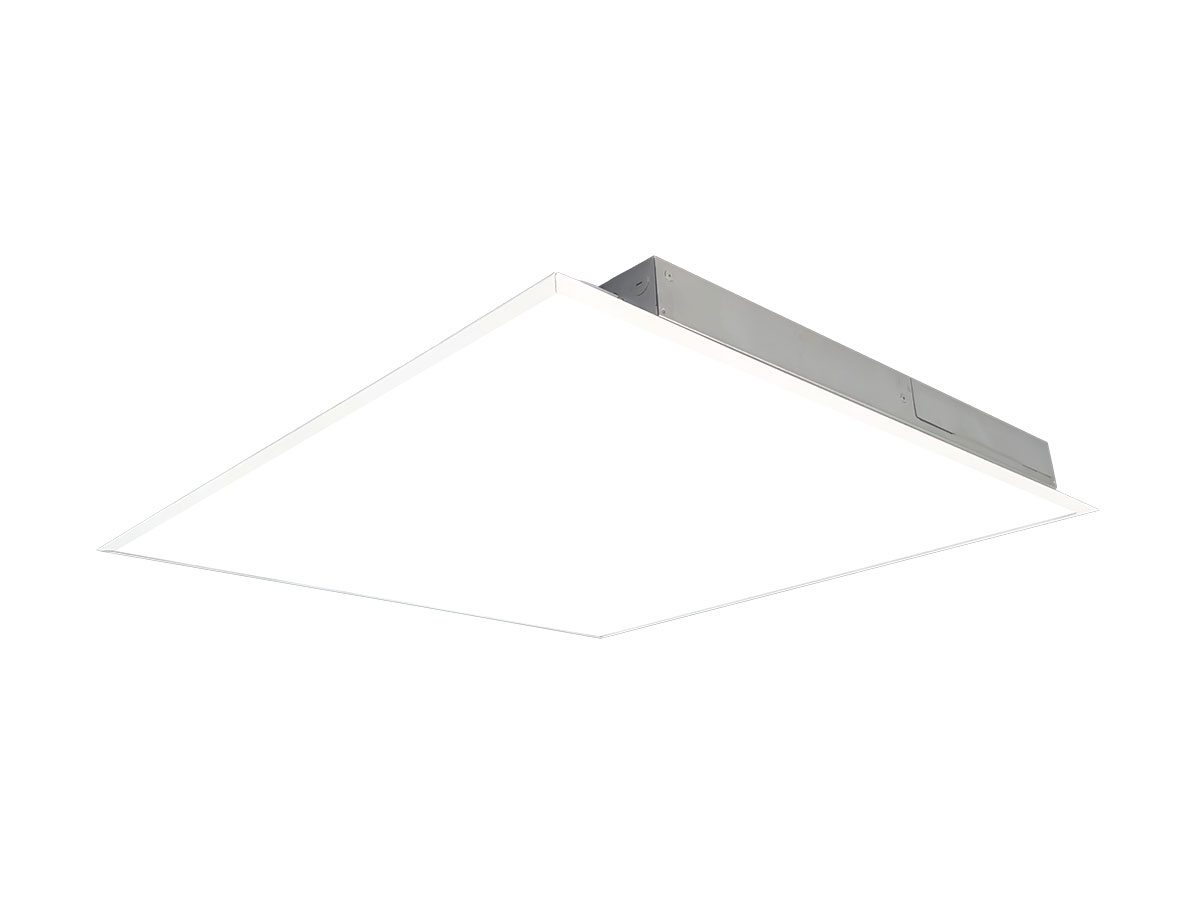

The new Ace LED Panel (AP2) is a cost-effective solution for indoor spaces. It features a low-glare light output making it comfortable and suitable for all indoor applications.

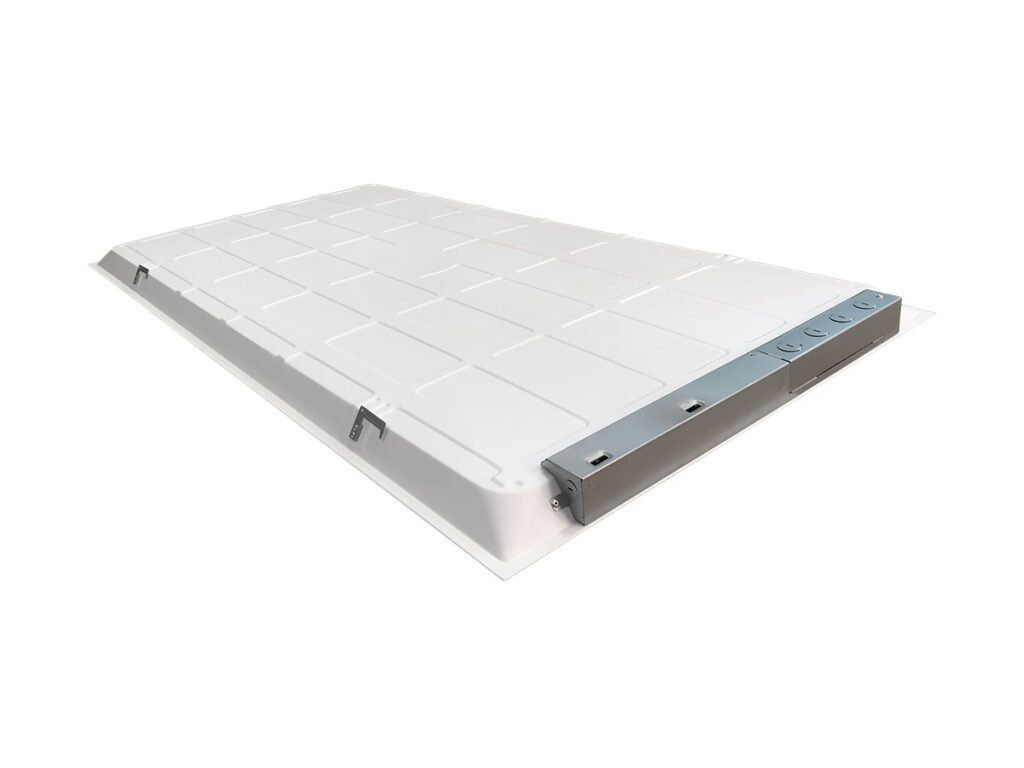

The panel features an aluminum back for heat dissipation and structural rigidity. The long-life LED’s give you great energy efficiency in all applications, including commercial, retail, educational and medical. It is also dust-proof, offering zero distance between the back cover and the frame. It is available for T-grid installation.

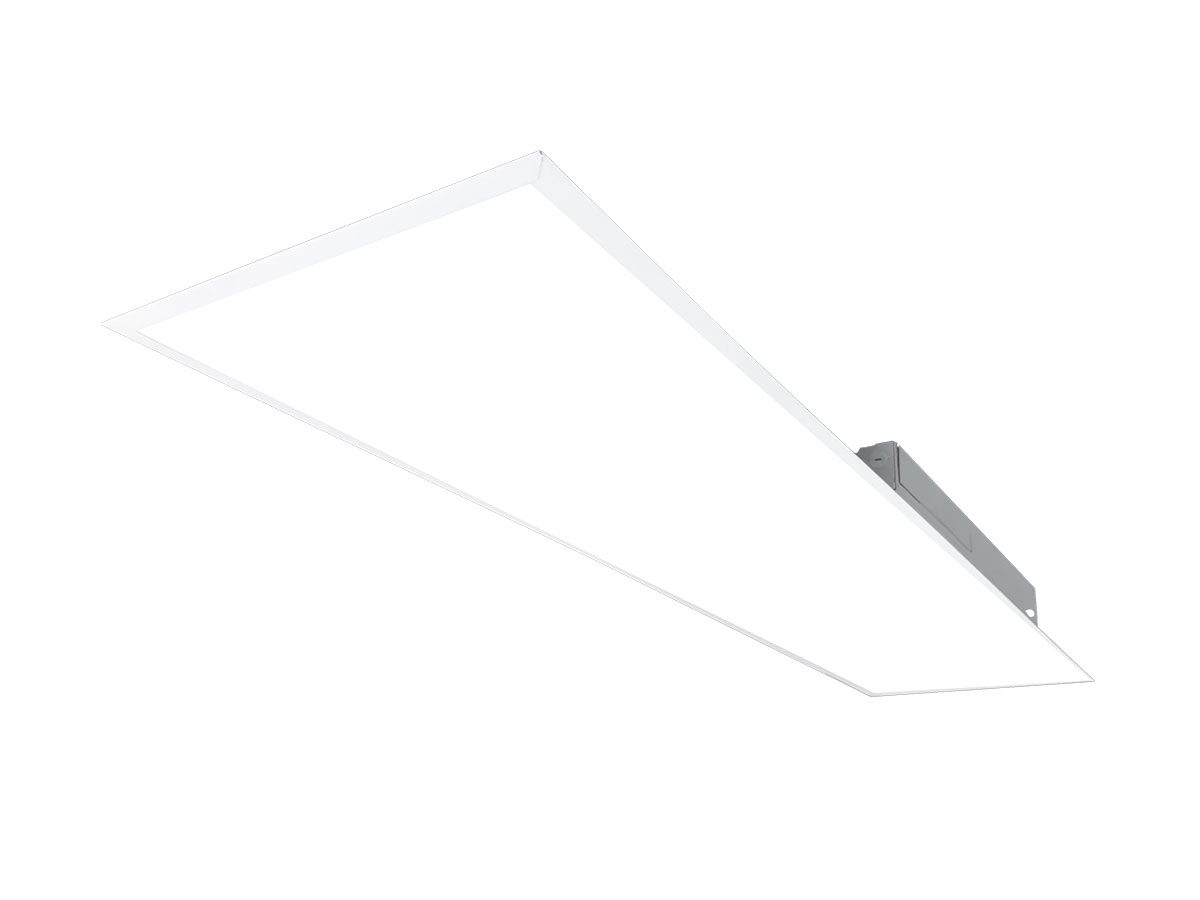

The AP2 is wattage and CCT adjustable, giving you the right tool for any lighting environment. It is offered in the following configurations, a 1×4 and 2×2 with adjustable wattages of 20/30/40 watts and selectable CCT of 3500K, 4000K and 5000K. The 2×4 model has adjustable wattages of 30/40/50 watts and the same adjustable CCT of 3500K, 4000K and 5000K.
Applications: Automotive Lighting, Commercial Lighting, Office Lighting.
Selectable Wattage
Each panel has a switch with three output power options, allowing to select the desired lumen output and energy consumption.
CCT Adjustable
Simply use the switch directly on the fixture to select the desired color temperature for your space: 3500K, 4000K, or 5000K.
Low Profile Design
Slim, compact design offering sleek, unobtrusive lighting that provides uniform, glare-free illumination, ideal for modern spaces.
Performance
| Size | Lumen Output | Efficacy | Watts | Part Number |
|---|---|---|---|---|
| 1x4 | 2,500/3,750/5,000 | 125 | 20/30/40W | AP20S-A2-ADJ-14-ADJ-80-FR-LV-GRID-10V |
| 2x2 | 2,500/3,750/5,000 | 125 | 20/30/40W | AP20S-A2-ADJ-22-ADJ-80-FR-LV-GRID-10V |
| 2x4 | 3,750/5,000/6,250 | 125 | 30/40/50W | AP20S-A2-ADJ-24-ADJ-80-FR-LV-GRID-10V |
Technical Specs
- Housing: Steel die-formed for back cover and frame. Low profile design.
- Housing Color: White.
- Power Input: 120-277V (50/60Hz).
- Power Factor: Greater than 0.9.
- Total Harmonic Distortion: Less than 20%.
- Emergency Battery Backup: 9 Watts output (~1,100 lumens) for >90 minutes. Simple wiring, metal conduit. Field installed. Available as
an accessory, sold separately.
- Environment: For interior applications, dust-resistant, listed for damp locations.
- Ambient Range Operation: 0°C up to 35°C
(32°F up to 95°F).
- CCT: 3500K, 4000K, 5000K (selectable via switches).
- CRI: 80+ standard.
- Lens: PMMA, Frosted. 120° beam angle.
- Recessed: In T-bar grid ceiling with integral earthquake clips for secure attachment enclosure.
- Surface Mount: Surface mount kit available as an accessory.
- Dimming: 0-10V standard. Dim to Off. Dimming range 100% to 5%.
- Occupancy Sensors: PIR sensor, On/Off/Dim available. Contact factory.
- Networked Lighting Controls: UltraLink Wireless Controls with Bluetooth® NLC Mesh technology available. Contact factory.
- 5 Year Warranty: The fixture is guaranteed for 5 years free of defects in materials and workmanship, including LEDs and driver. “Defective” is considered if ten percent (10%) or more of the LEDs, per product, are non‐operating LEDs, or color temperature has shifted more than 500° Kelvin within the warranty period. See terms and conditions at https://linmoreled.com/warranty
- UL listed.
- RoHS compliant.
- IC rated for insulated ceilings.
- UL listed for damp locations.
- DesignLights™ Consortium Premium.
