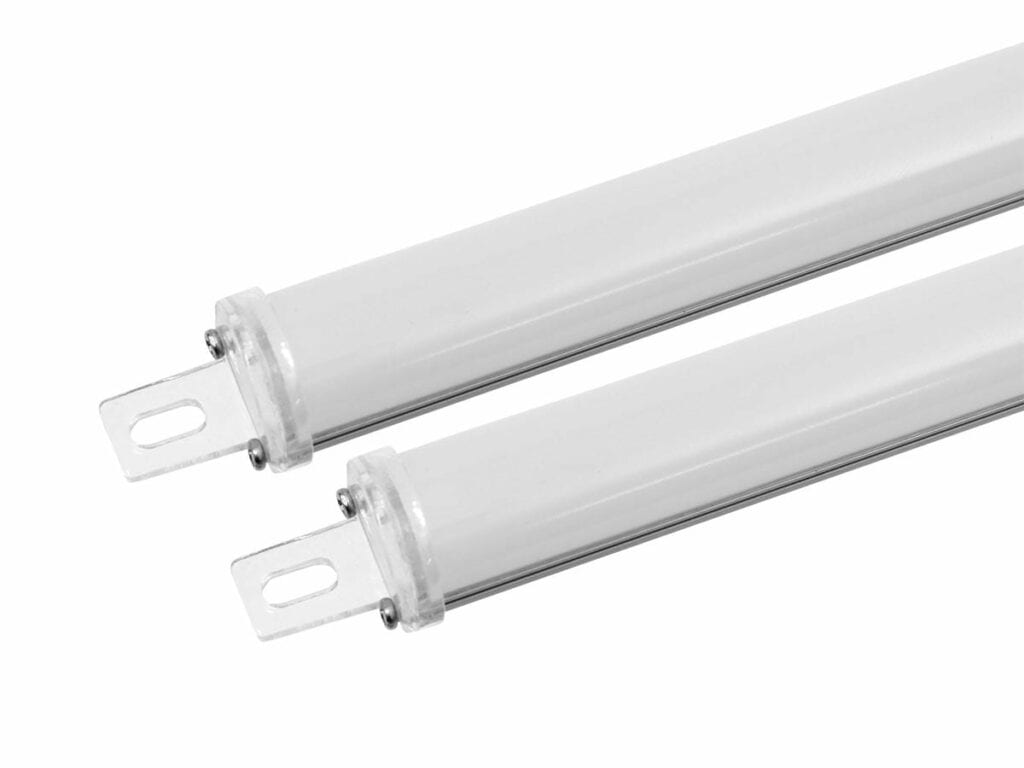

The Ace LED Bar Kit (ABK) from Linmore LED is a high performance, high quality, and high value retrofit system for a variety of fixtures. Strip lights, task lighting, and more can be effectively retrofitted with the Ace Bar Kit. An ABK includes high efficacy light bars and external driver with molded plugs. A system installs easy and is simple to maintain in future years.
The ABK fits between existing lamp holders to expedite installation. The driver comes from Linmore LED, a proven manufacturer of power supplies. The Ace Bar Kit is everything you need, and nothing that you don’t. When the objective is to find a quality retrofit system for a variety of fixtures, let our ABK be the Ace up your sleeve.
Applications: Commercial Lighting, Office Lighting.
Simple Retrofit
Quick and effective retrofit for strip lights, task lights and more. Fits between existing lamp holders to expedite installation.
Superior Heat Dissipation
Each LED board is inserted onto an aluminum extrusion for optimal heat dissipation and maximum longevity.
Controls & Sensors
Ace LED Driver with 0-10V dimming optional. Plus motion and dimming sensors, and wireless controls available. Field installed only.
Performance
| Size | Lumen Output | Efficacy | Watts | Part Number |
|---|---|---|---|---|
| 2' | 1,175 | 131 | 9 | AL-ABK-2-1-41K-9W |
| 2' | 2,058 | 137 | 15 | AL-ABK-2-2-41K-15W |
| 2' | 2,939 | 134 | 22 | AL-ABK-2-2-41K-22W |
| 2' | 3,640 | 130 | 28 | AL-ABK-2-3-41K-28W |
| 2' | 3,763 | 134 | 28 | AL-ABK-2-4-41K-28W |
| 4' | 2,058 | 137 | 15 | AL-ABK-4-1-41K-15W |
| 4' | 2,939 | 134 | 22 | AL-ABK-4-1-41K-22W |
| 4' | 2,058 | 137 | 15 | AL-ABK-4-2-41K-15W |
| 4' | 2,939 | 134 | 22 | AL-ABK-4-2-41K-22W |
| 4' | 3,640 | 130 | 28 | AL-ABK-4-2-41K-28W |
| 4' | 4,383 | 129 | 34 | AL-ABK-4-2-41K-34W |
| 4' | 5,108 | 128 | 40 | AL-ABK-4-2-41K-40W |
| 4' | 2,939 | 134 | 22 | AL-ABK-4-3-41K-22W |
| 4' | 3,640 | 130 | 28 | AL-ABK-4-3-41K-28W |
| 4' | 4,383 | 129 | 34 | AL-ABK-4-3-41K-34W |
| 4' | 5,108 | 128 | 40 | AL-ABK-4-3-41K-40W |
| 4' | 3,117 | 142 | 22 | AL-ABK-4-4-41K-22W |
| 4' | 3,921 | 140 | 28 | AL-ABK-4-4-41K-28W |
| 4' | 4,715 | 139 | 34 | AL-ABK-4-4-41K-34W |
| 4' | 5,492 | 137 | 40 | AL-ABK-4-4-41K-40W |
Technical Specs
CONSTRUCTION
- Aluminum Extrusion: Each LED board is inserted onto an aluminum extrusion to aid in heat dissipation and ensure to maximum longevity.
- LED Boards: FR4 PCB is used to limit stress on solder joints by matching coefficient of thermal expansion between the LED and the PCB more closely. LED boards attached to the heat sink using a high quality thermally conductive adhesive rather than screws or rivets. This ensures good contact between PCB and heat sinks for excellent thermal conductivity
- LEDs: Only high quality LEDs are used to deliver maximum light output and longevity.
- Bar Kit Options: 1, 2, 3 or 4 bar kits available.
ELECTRICAL
- Power Input: 120-277V (50/60Hz), typical.
- Power Factor: Greater than 0.9 (0.99 typical).
- Total Harmonic Distortion: Less than 10%.
OPERATION
- Environment: Dry/Damp, for interior applications.
- Ambient Range Operation: -40°C up to 45°C (-40°F up to 113°F).
OPTICS
- CCT: 3500K, 4000K and 5000K standard, other CCT available (extended lead time).
- CRI: 80 standard, other CRI available (extended lead time).
- Lenses: Frosted lenses made using a high-quality plastic with UV inhibitors to aid against yellowing. 180° light distribution.
MOUNTING
- Fixture includes installation bracket and features built-in magnets to aid in the installation process.
CONTROLS
- Dimming: 0-10V standard. Dim to Off. Dimming range 100% to 5%.
- Sensors: Contact factory.
- Networked Control Options: UltraLink Wireless Controls with Bluetooth® NLC Mesh technology. Requires UltraLink relays, ULTRARELAY-5A or ULTRARELAY-20A, see Accessories.
WARRANTY
- 7 Year Warranty: The fixture is guaranteed for 7 years free of defects in materials and workmanship, including LEDs and driver. “Defective” is considered if ten percent (10%) or more of the LEDs, per product, are non‐operating LEDs, or color temperature has shifted more than 500° Kelvin within the warranty period. See terms and conditions at https://linmoreled.com/warranty
LISTINGS & CERTIFICATIONS
- UL 1598
- RoHS compliant
- FCC CFR 47, Part 151
- cUL
- DesignLights™ Consortium Standard
