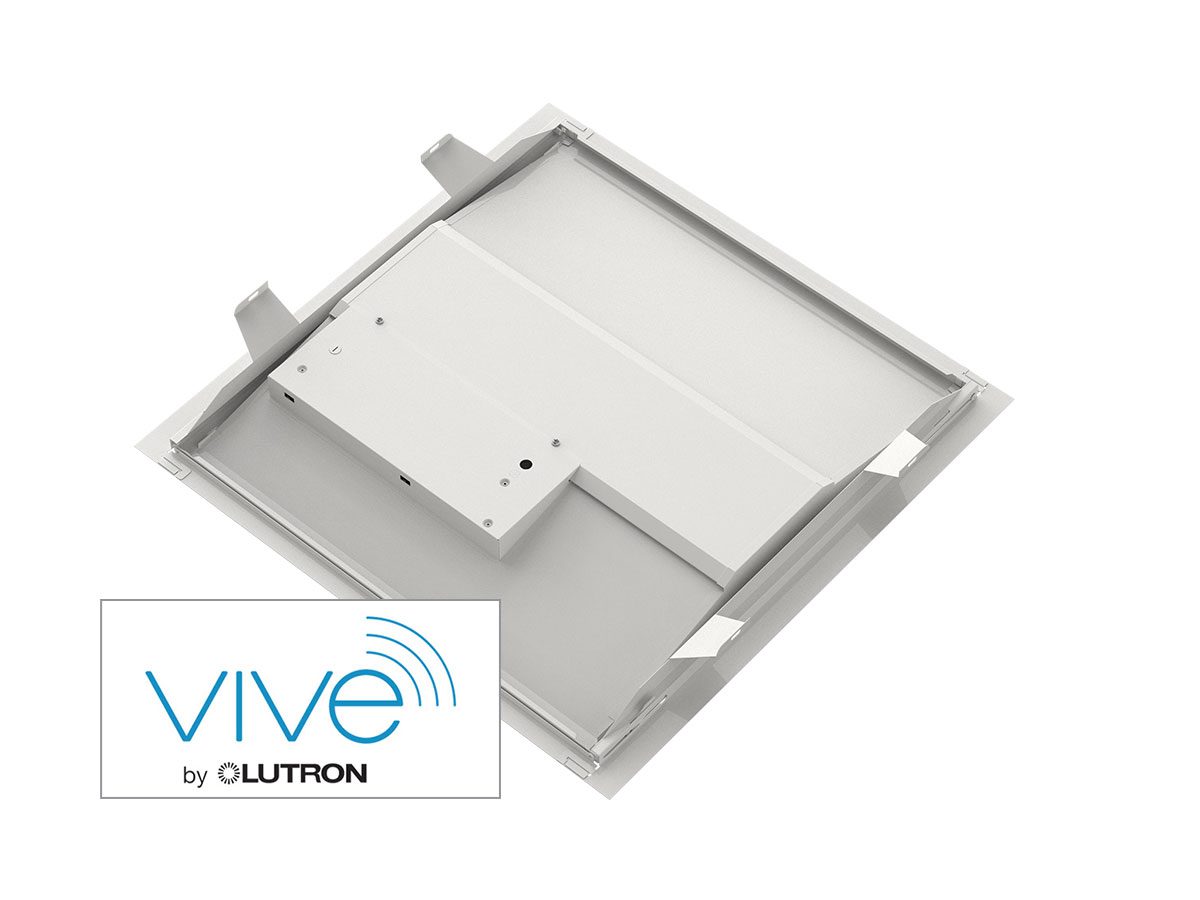

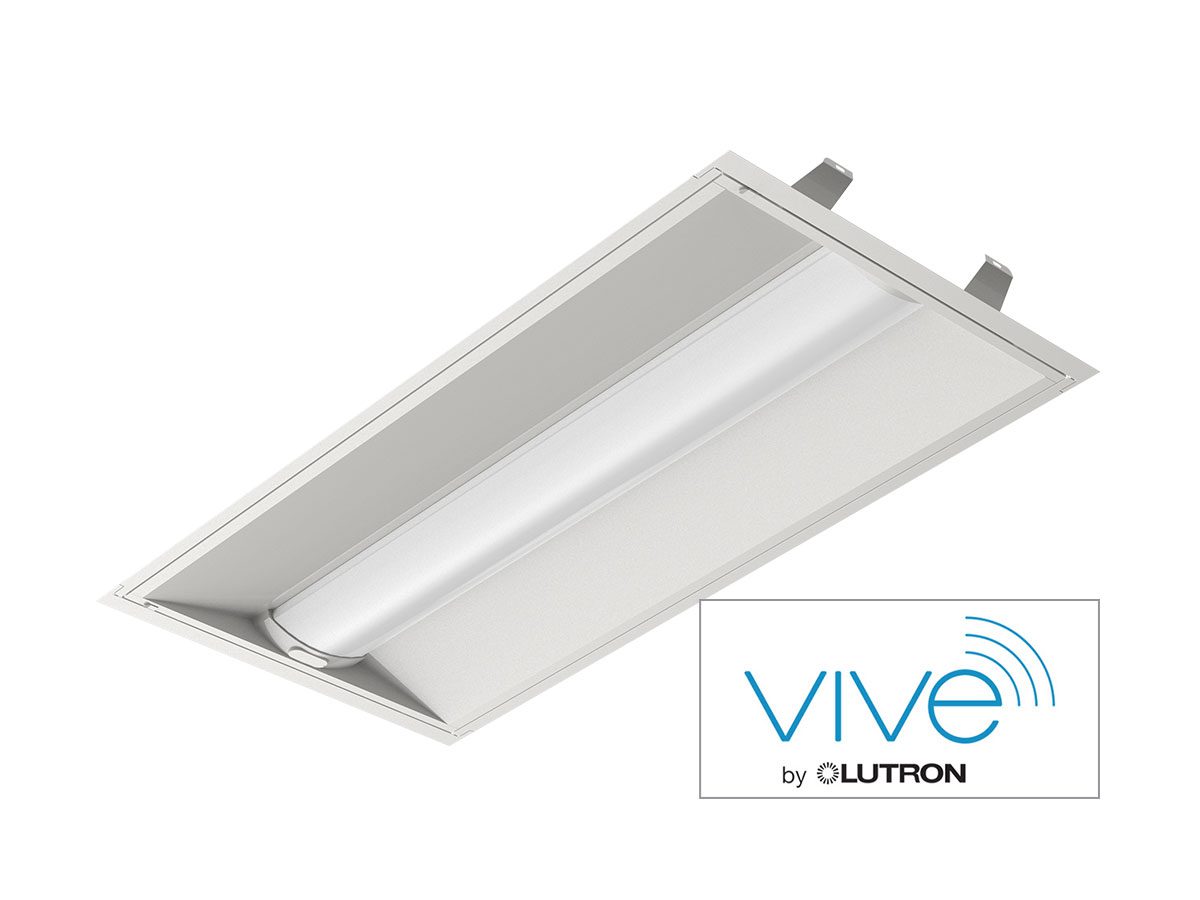

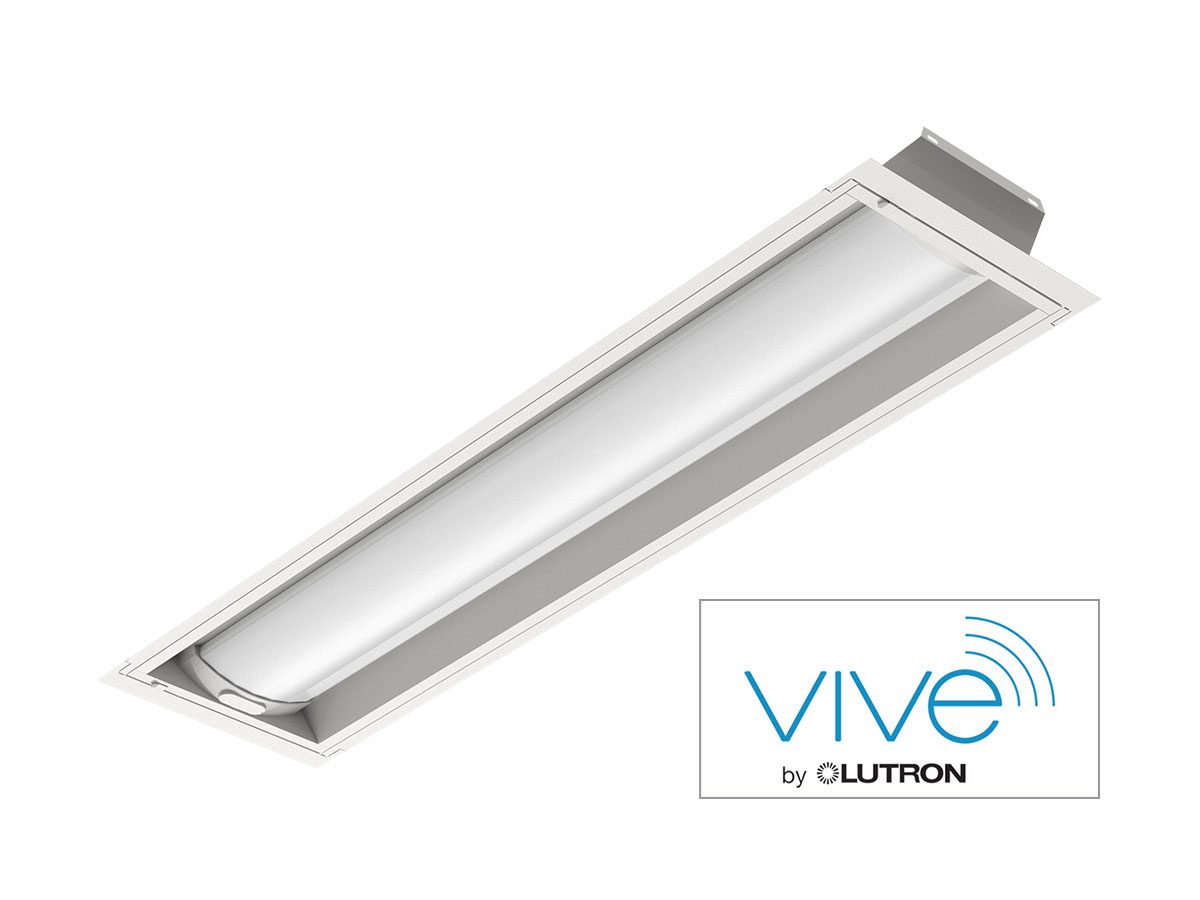

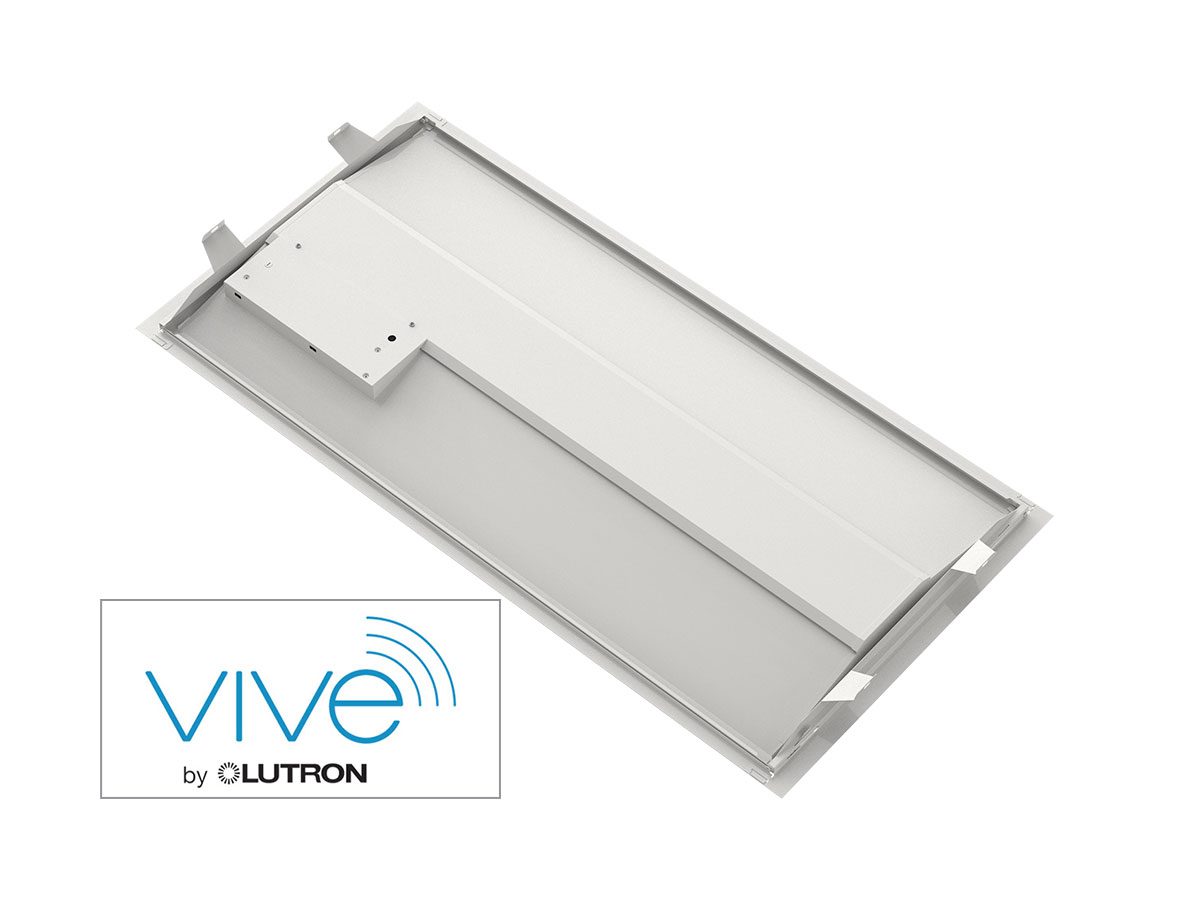

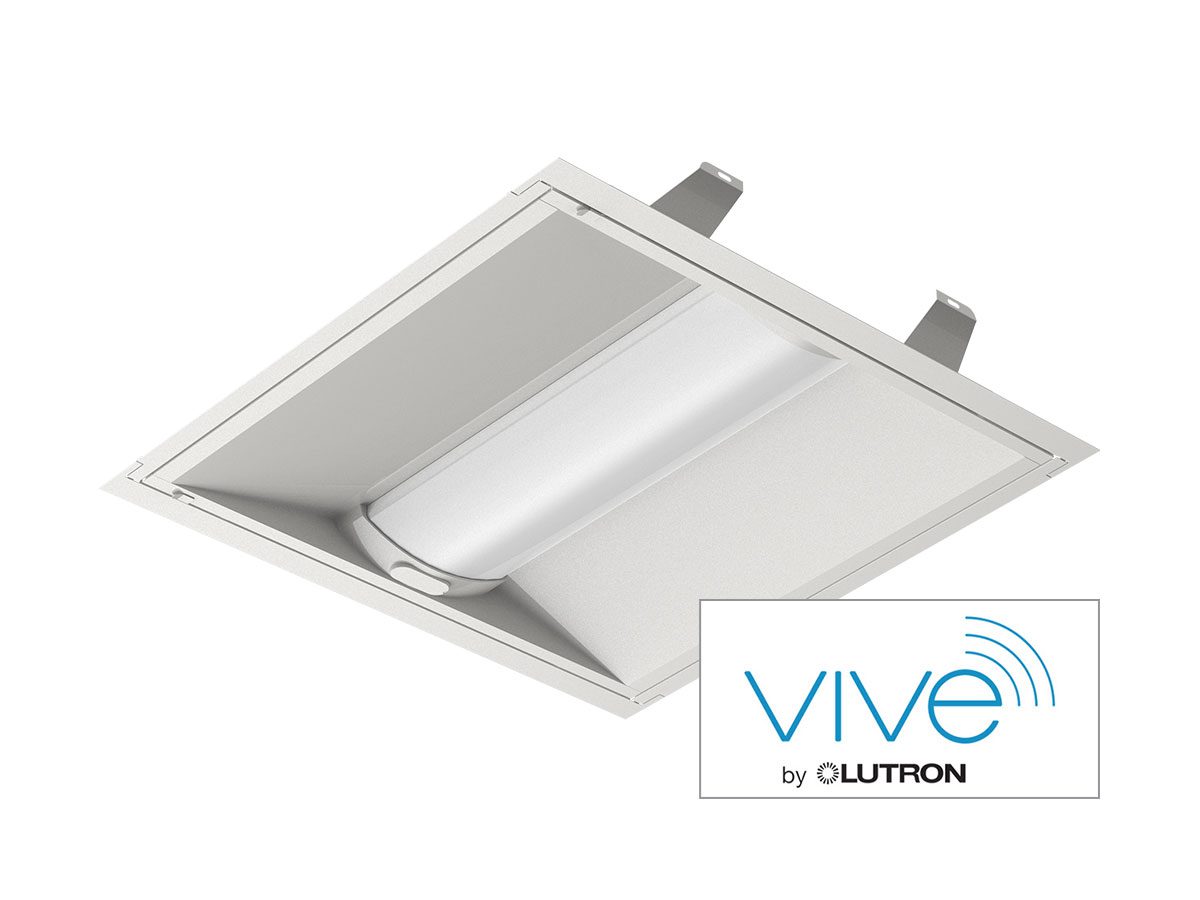

The new Ace LED Door Kit with Lutron Technology (AD2-L) is the ultimate solution for transforming outdated fluorescent troffers into modern, energy-efficient LED fixtures. Designed for quick installation, this kit delivers exceptional performance, sustainability, and aesthetics in one package.
Built with a durable metal housing the AD2-L offers superior heat dissipation and structural integrity. Its low-glare lens and long-lasting LEDs deliver comfortable lighting with exceptional energy efficiency, reducing operational costs over time. This kit is easy to install and is compatible with most 1×4, 2×2, and 2×4 fluorescent troffers.
This Ace LED Door Kit features Lutron Hi-Lume, 1% EcoSystem LED drivers with Soft-On, Fade-to-Black dimming technology, and are compatible with Vive wireless controls.
Vive wireless controls are easy to specify, install, and update, offering flexible, code-compliant solutions for new construction and retrofits.
Applications: Automotive Lighting, Commercial Lighting, Office Lighting.
Vive Wireless Controls by Lutron
Simple, scalable, and wireless lighting controls that help make both new and existing commercial buildings efficient, comfortable and productive.
Save on Time. Save on Labor
Quick installation time – up to 70% faster than wired control solutions - means shorter timelines and lower cost.
Meet Code. Meet your Needs
Vive is easy to specify, install, and update, offering flexible, code-compliant solutions for new construction and retrofits.
Performance
| Size | Lumen Output | Efficacy | Watts | Part Number |
|---|---|---|---|---|
| 1x4 | 3,000 | 125 | 24 | AD20L-A1-03K-14-40-80-FR-LDE1-GRID-DTO |
| 1x4 | 4,000 | 125 | 32 | AD20L-A1-04K-14-40-80-FR-LDE1-GRID-DTO |
| 1x4 | 5,000 | 125 | 40 | AD20L-A1-05K-14-40-80-FR-LDE1-GRID-DTO |
| 2x2 | 3,000 | 125 | 24 | AD20L-A1-03K-22-40-80-FR-LDE1-GRID-DTO |
| 2x2 | 4,000 | 125 | 32 | AD20L-A1-04K-22-40-80-FR-LDE1-GRID-DTO |
| 2x2 | 5,000 | 125 | 40 | AD20L-A1-05K-22-40-80-FR-LDE1-GRID-DTO |
| 2x4 | 3,000 | 125 | 24 | AD20L-A1-03K-24-40-80-FR-LDE1-GRID-DTO |
| 2x4 | 4,000 | 125 | 32 | AD20L-A1-04K-24-40-80-FR-LDE1-GRID-DTO |
| 2x4 | 5,000 | 125 | 40 | AD20L-A1-05K-24-40-80-FR-LDE1-GRID-DTO |
| 2x4 | 6,000 | 125 | 48 | AD20L-A1-06K-24-40-80-FR-LDE1-GRID-DTO |
Technical Specs
-
-
- Housing: Galvanized sheet. Ultra slim design.
- Housing Color: White.
-
- Power Input: 120-277V (50/60Hz).
- Power Factor: Greater than 0.9.
- Total Harmonic Distortion: Less than 20%.
- Emergency Battery Backup: 9 watts output (~1,100 lumens) for >90 minutes. Simple wiring, metal conduit. Field installed. Available as
an accessory, sold separately.
- Environment: For interior applications, dust-resistant, listed for damp locations.
- Ambient Range Operation: -20°C up to 35°C
(-4°F up to 95°F).
- CCT: 3500K and 4000K available.
- CRI: 80+ standard.
- Lens: Polycarbonate, Frosted. 120° beam angle.
- Retrofit: Kit retrofits most standard recessed troffers.
- Dimming: Soft-On, Fade-to-Black dimming technology. Dimming range 100% to 1%.
- Occupancy Sensors: Vive by Lutron.
- Lighting Controls: Vive by Lutron.
- 10 Year Warranty: The fixture is guaranteed for 10 years free of defects in materials and workmanship, including LEDs and driver. “Defective” is considered if ten percent (10%) or more of the LEDs, per product, are non‐operating LEDs, or color temperature has shifted more than 500° Kelvin within the warranty period. See terms and conditions at https://linmoreled.com/warranty
- UL listed.
- RoHS compliant.
- IC rated for insulated ceilings.
- UL listed for damp locations.
- DesignLights™ Consortium Premium.
