Vapor Tight Low Bay (VTL)

LED Vapor Tight

The Vapor Tight Low Bay (VTL) combines the innovation of Linmore URS Light Bars with a vapor tight enclosure. The patented URS Low Bay Light Bar System is comprised of the highest efficacy LEDs mechanically bonded to an extruded aluminum light bar with a high-tech diffuser creating a 240 degree beam angle.

The amount of light and the consistent distribution of light per watt of energy consumed is unmatched by any other sealed low bay. When the objective is to utilize a low bay lighting system that repels the elements with the least amount of energy and maintenance, and get an industry leading 10 year warranty, the Linmore VTL is the clear choice.

Applications: Commercial Lighting, Food Processing Lighting, Industrial Lighting.

Washdown & Wet Location

IP67 rated and NSF certified. Designed to resist wash-down pressures up to 1500psi, ensuring the safety of its electrical components.

Quality Components

Uses the URS Light Bar that consists of a patented aluminum extrusion, a high-efficacy set of LEDs, and an external dimmable driver.

Controls & Sensors

0-10V dimming and a broad range of occupancy and daylight sensors available as an option, including wireless controls.

Performance

# of Bars Lumen Output Efficacy Watts Part Number
2 9,678 134 72 LL-VTL-50K-2-72W-6
2 11,746 133 88 LL-VTL-50K-2-88W-6
3 14,269 130 110 LL-VTL-50K-3-110W-6
3 16,751 127 132 LL-VTL-50K-3-132W-6
4 21,507 122 176 LL-VTL-50K-4-176W-6

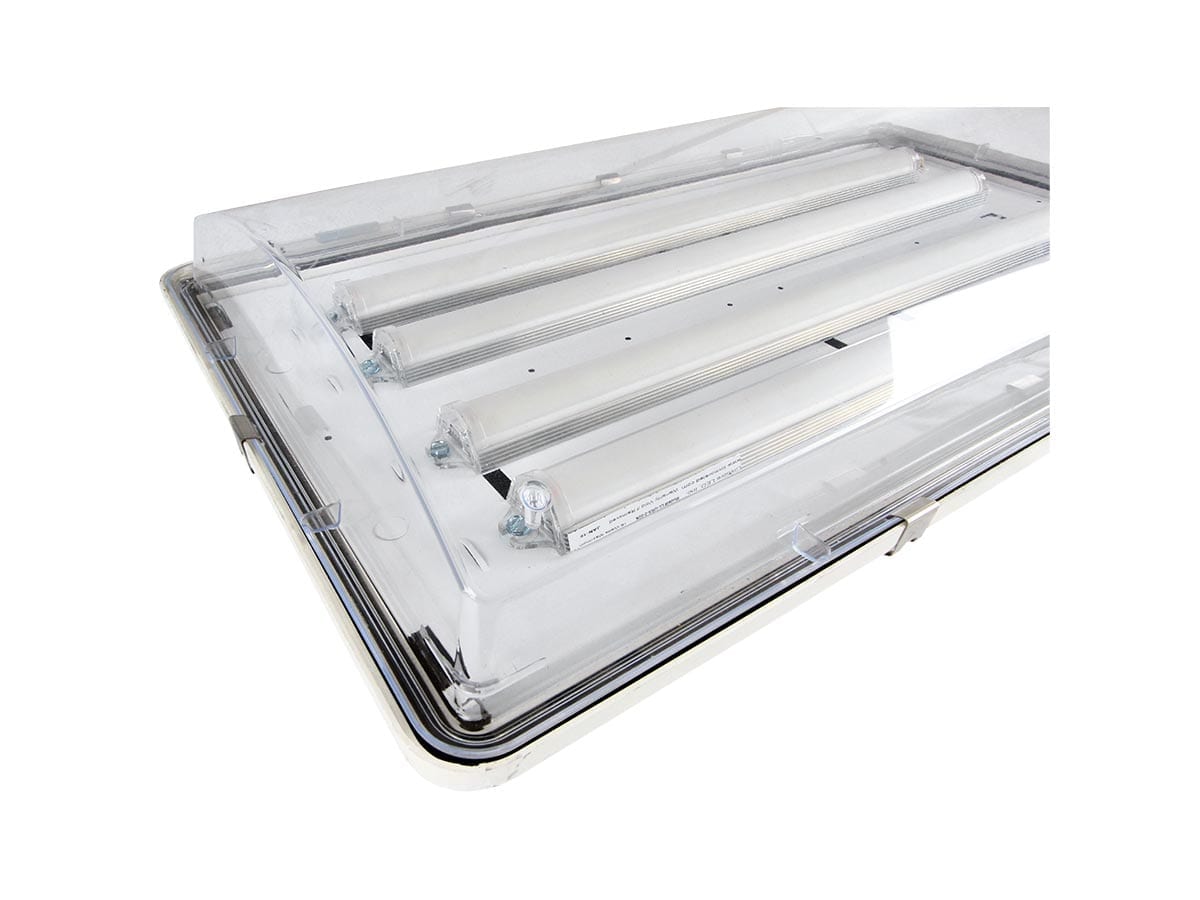

Vapor Tight Low Bay (VTL)
Vapor Tight Low Bay (VTL)

Technical Specs

  • Housing: Stainless steel and aluminum LED driver enclosure.
  • Latches: Stainless steel.
  • Materials: Glass-free. Mercury-free.
  • Heat Sinks: Made of 6063 T5 extruded aluminum with multiple fins and large surface area for superior heat dissipation.
  • Light Engine: We use our patented URS Light Bar, known for it’s high performance and superior heat dissipation.
  • LED Board: Made of aluminum core and mechanically bonded to the aluminum extrusion heat sink.
  • LEDs: Only high-quality LEDs used to ensure maximum light output and longevity.
  • Air Flow Cavity: The patented Air Flow Cavity located under the LED board allows dissipated heat to leave the fixture, keeping the LEDs cooler.
  • Assembled in the USA.
  • Power Input: 120-277V or 347-480 (50/60Hz).
  • Power Factor: Greater than 0.9 (0.99 typical).
  • Total Harmonic Distortion: Less than 9%.
  • Surge Protection: Optional 20KA integral surge suppression.
  • Battery Backup (BB): Available as an option.
  • Environment: Washdown and wet locations. IP67 rated. NSF certified.
  • Ambient Range Operation: -40°C up to 60°C (-40°F up to 140°F).
  • CCT: 3500K, 4000K and 5000K standard, other CCT available (extended lead time).
  • CRI: >80 standard, other CRI available (extended lead time).
  • Lenses: Clear acrylic lens. Impact resistant. 240° beam angle provides wide light distribution and high uniformity. Glass-free.
  • Fixture can be mounted with V Hooks, Cable Assembly or Ceiling Mount.
  • Dimming: 0-10V standard. Dim to OFF.
  • Sensors: Compatible with WattStopper, IR-TEC and McWong sensors, and Enocean switches.
  • Networked Control Options: Compatible with Avi-on networked controls and UltraLink SIG Bluetooth® with Mesh Networked controls.
  • 10-year product warranty on the light bars, 5-year warranty on the LED driver.
  • ETL listed (UL 1598), CSA 22.2.
  • RoHS compliant.
  • IP67 rated.
  • NSF certified.
  • cULus.
  • UL Wet.
  • EMI: Title 47 CFR 15 Class A, ICES-005. ​​
  • LM-79, LM 80 and TM-21 tests and reports are performed in accordance to IESNA standards, per TM-21​​.
