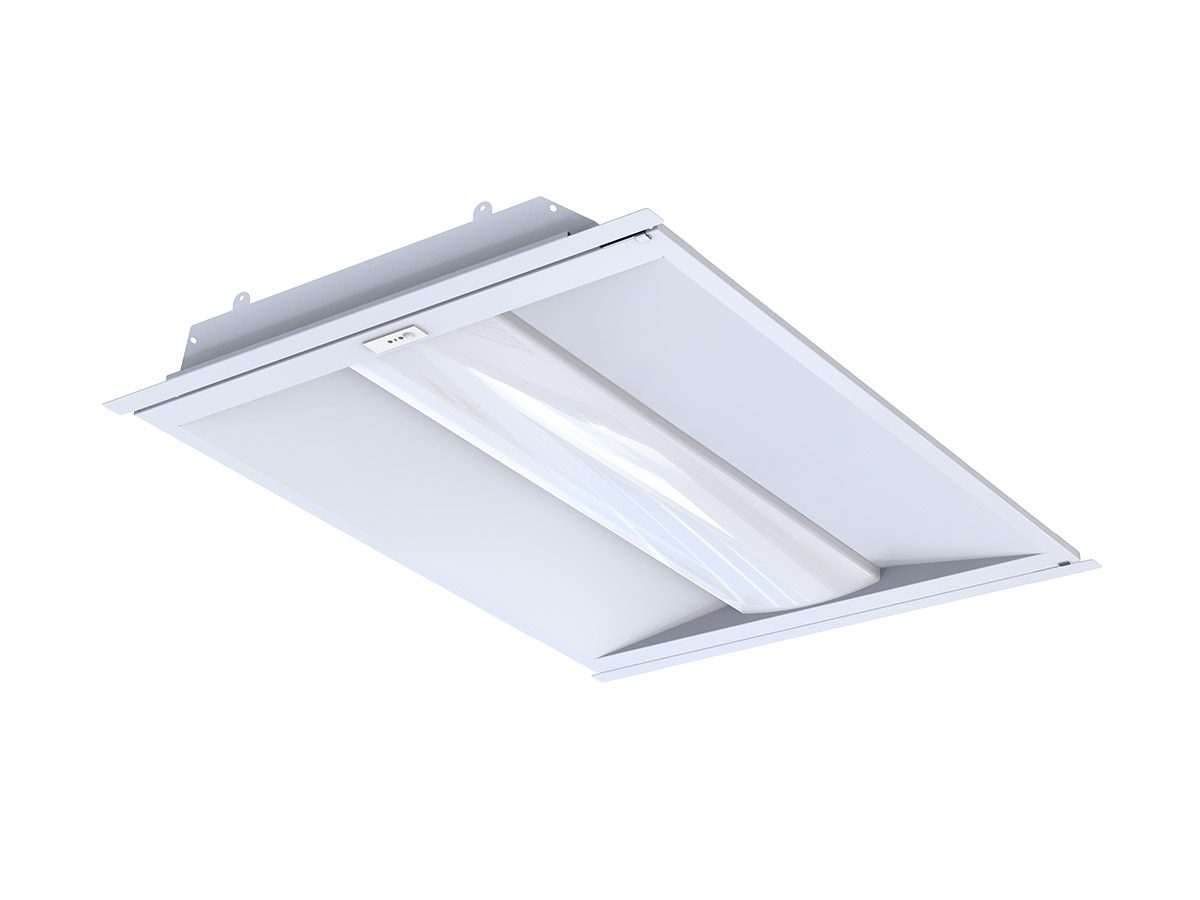

The LifeTime Series™ Door Kit is engineered to last the life of your building, not just a single lighting cycle.
Unlike traditional LED fixtures that require tear-down and disposal, the LifeTime Series remains installed, reducing waste and keeping fixtures out of landfills.

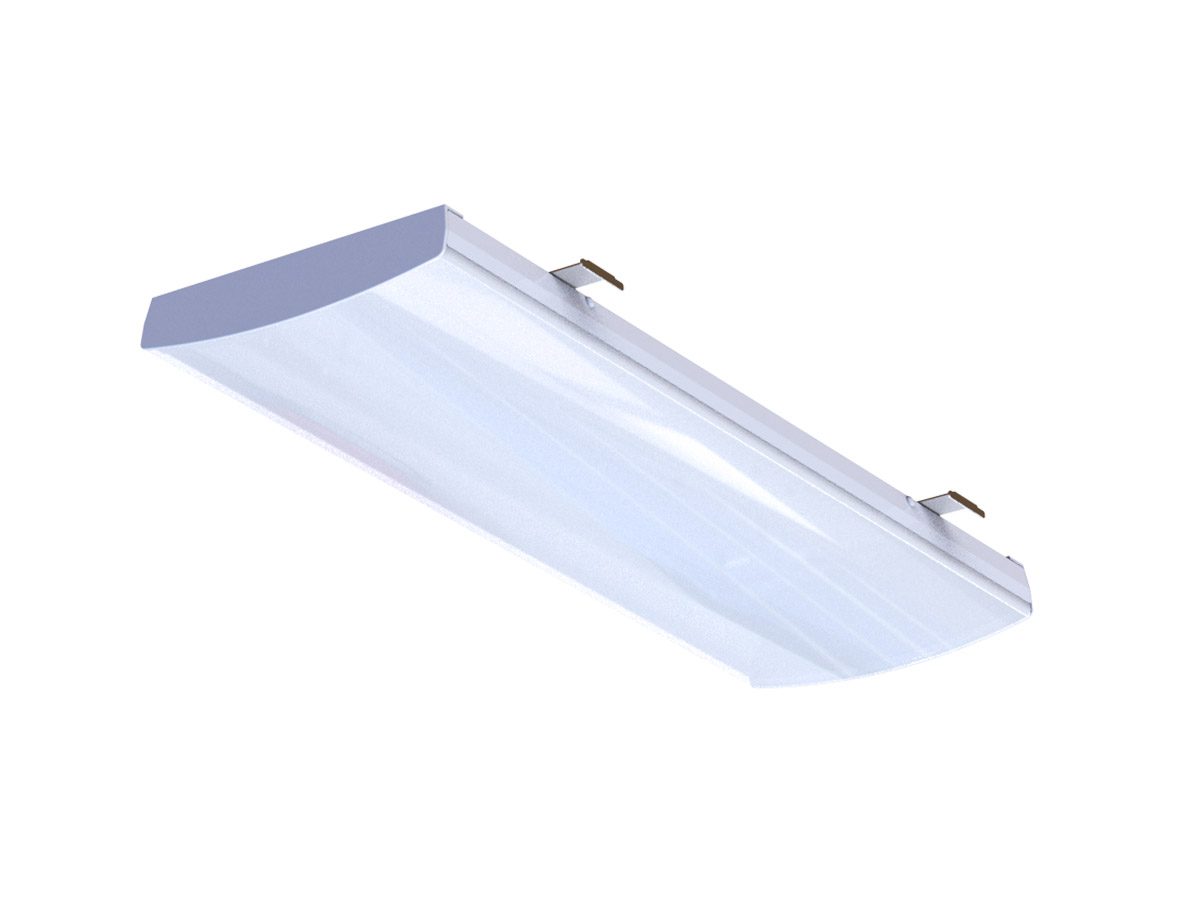

Available in 1×4, 2×2, and 2×4 sizes to retrofit most standard recessed troffers, the LifeTime Series features the ReLuma™ Module, a Plug & Play, replaceable light engine that can be swapped tool-free in under a minute. This integrated module combines the LED engine and electronics into one unit, allowing the fixture to be easily renewed without removing or replacing the housing.
A true breakthrough in longevity and sustainability, the LifeTime Series Troffer delivers decades of reliable, eco-friendly performance without fixture disposal.
Applications: Automotive Lighting, Commercial Lighting, Office Lighting.
Selectable Wattage
Each troffer has a switch with five output power options, allowing to select the desired lumen output and energy consumption.
CCT Adjustable
Simply use the switch directly on the fixture to select the desired color temperature for your space: 3000K, 3500K, 4000K, 4500K or 5000K.
EZ-Connect™ Receptacle
The simplest and fastest way to add sensors and UltraLink wireless controls at any time in the field. Snap-in system, no tools or wiring needed.
Built for Life

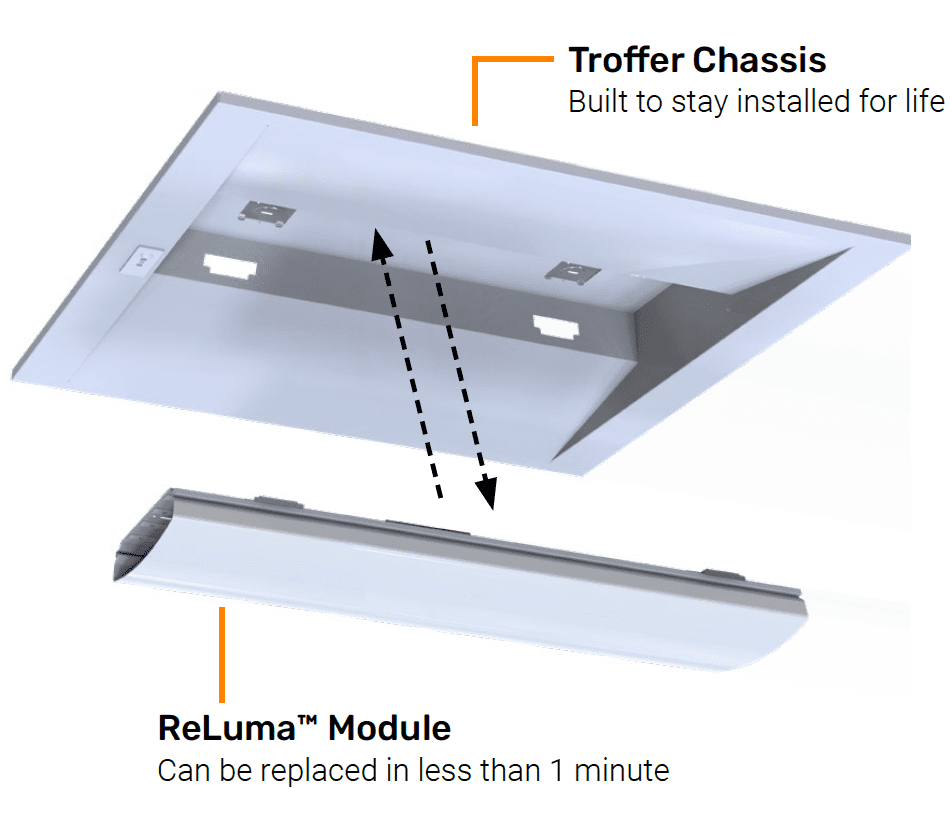

The ReLuma™ module is a replaceable light engine that renews LifeTime Series fixtures in under a minute, lowering maintenance costs and extending fixture life without the expense of full replacement.
- Lower Labor Cost
- Minimal Downtime
- Reduce Waste
Technical Specs
CONSTRUCTION
ELECTRICAL
OPERATION
OPTICS
MOUNTING
CONTROLS
WARRANTY
LISTINGS & CERTIFICATIONS
CONSTRUCTION
- Housing: Galvanized cold rolled steel. Ultra slim design (0.6mm).
- Housing Color: White.
- ReLuma™ Module: Patented groundbreaking technology. All-in-one Plug & Play replaceable module integrating the LED engine and electronics to renew any LifeTime Series Troffer in under a minute.
- EZ-Connect™ Receptacle: The simplest and fastest way to add sensors and wireless controls at any time in the field. Snap-in system, no tools or wiring needed.
ELECTRICAL
- Power Input: 120-277V (50/60Hz).
- Power Factor: Greater than 0.9.
- Total Harmonic Distortion: Less than 20%.
- Emergency Battery Backup: EMB has 8 watts output, producing ~1,100 lumens for 90 minutes. Factory installed.
OPERATION
- Environment: For interior applications, dust-resistant.
- Ambient Range Operation: -20°C up to 35°C (-4°F up to 95°F).
OPTICS
- CCT: 3000K, 3500K, 4000K, 4500K, 5000K (selectable via switches).
- CRI: 80+ standard.
- Lens: Polycarbonate, frosted, low glare.
MOUNTING
- Retrofit: Kit retrofits most standard recessed troffers.
CONTROLS
- Dimming: 0-10V standard. Dim to 5%, then Off.
- Occupancy Sensors: PIR sensor, On/Off/Dim. EZ-Connect™ Snap-in system for field installation.
- Networked Lighting Controls: UltraLink and UltraLink+ Wireless Controls with Bluetooth® NLC Mesh technology. EZ-Connect™ Snap-in system for field installation.
WARRANTY
- 5 Year Performance Warranty: Fixture is guaranteed for 5 years, including LEDs and driver. “Defective” is considered if ten percent (10%) or more of the LEDs, per product, are non‐operating LEDs, or color temperature has shifted more than 500° Kelvin within the warranty period. See terms and conditions at https://linmoreled.com/warranty
LISTINGS & CERTIFICATIONS
- ETL listed.
- RoHS Compliant.
- Title 24 Compliant.
- TM66.
- DesignLights™ Consortium Premium.
ReLumaCycle™ Circular Program
Renew Your Light, Restore Your Investment®
Upon purchase, end users are registered with Linmore to activate their warranty.
At the end of a ReLuma™ Module’s service life, the RLM is returned to Linmore for re-manufacturing. Failed components are responsibly recycled and replaced with the latest technology.
Restored RLMs are kept in stock and available for quick shipment to end users.
Built for sustainability, the ReLuma™ Modules are remanufactured in the USA and returned to service with upgraded electronics. Every retired component is responsibly recycled, conserving valuable materials and minimizing waste. The ReLuma Module System supports the circular economy, reducing embodied carbon and promoting long-term environmental stewardship.
