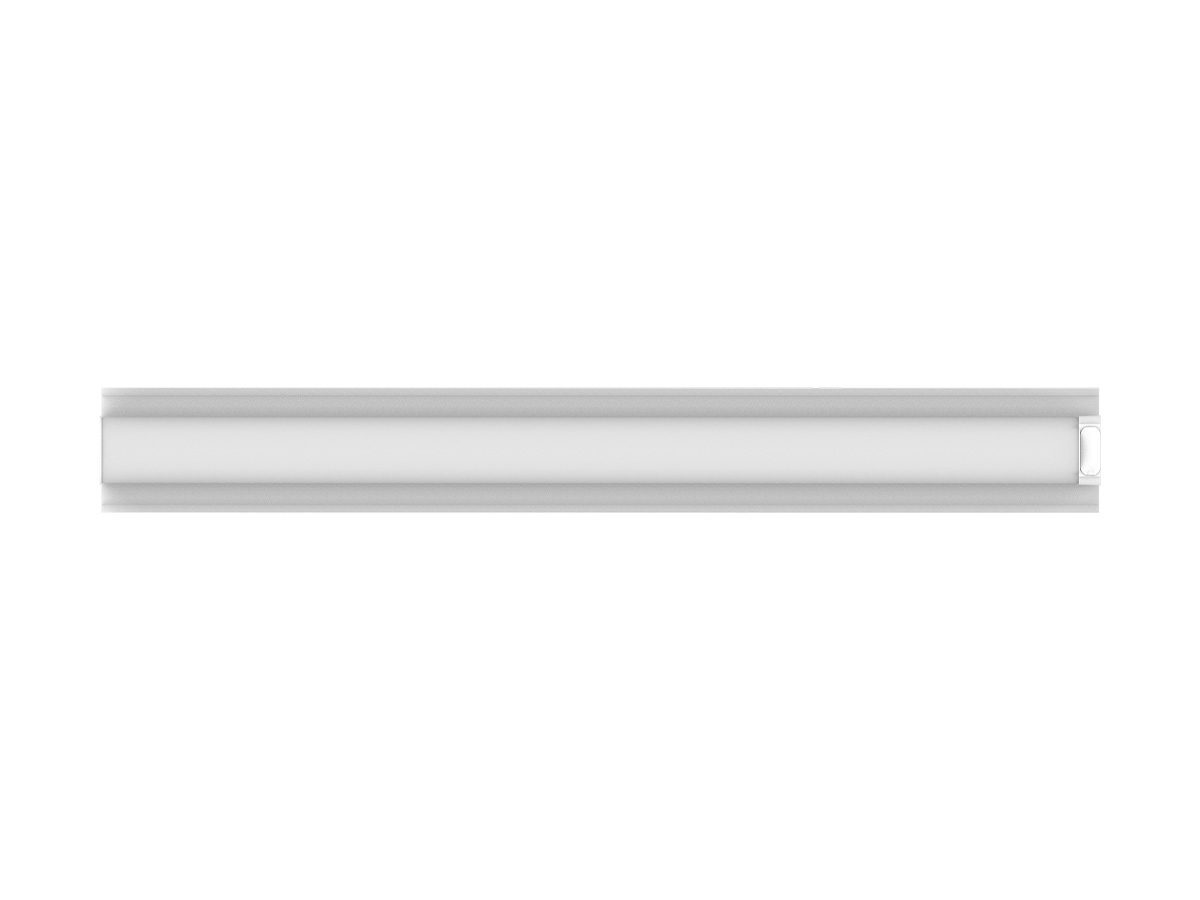

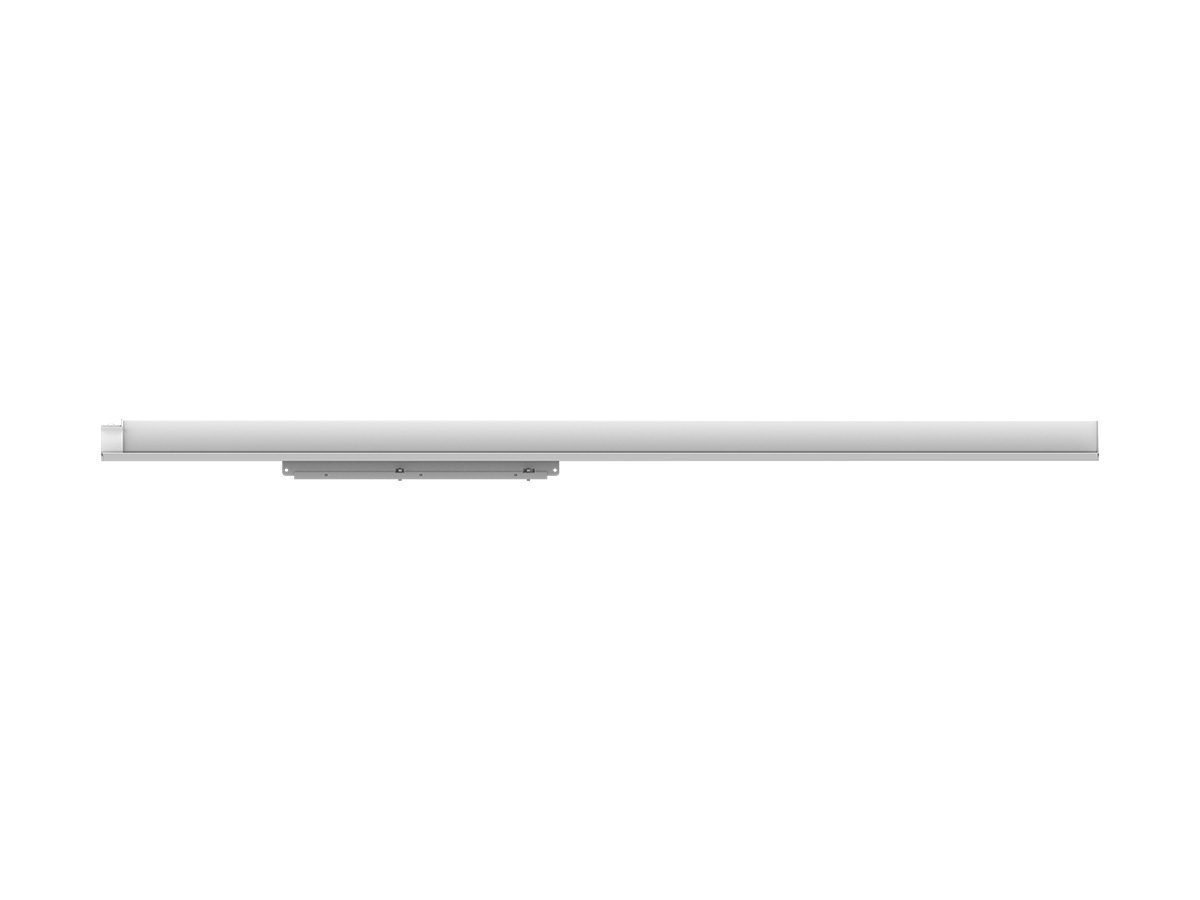

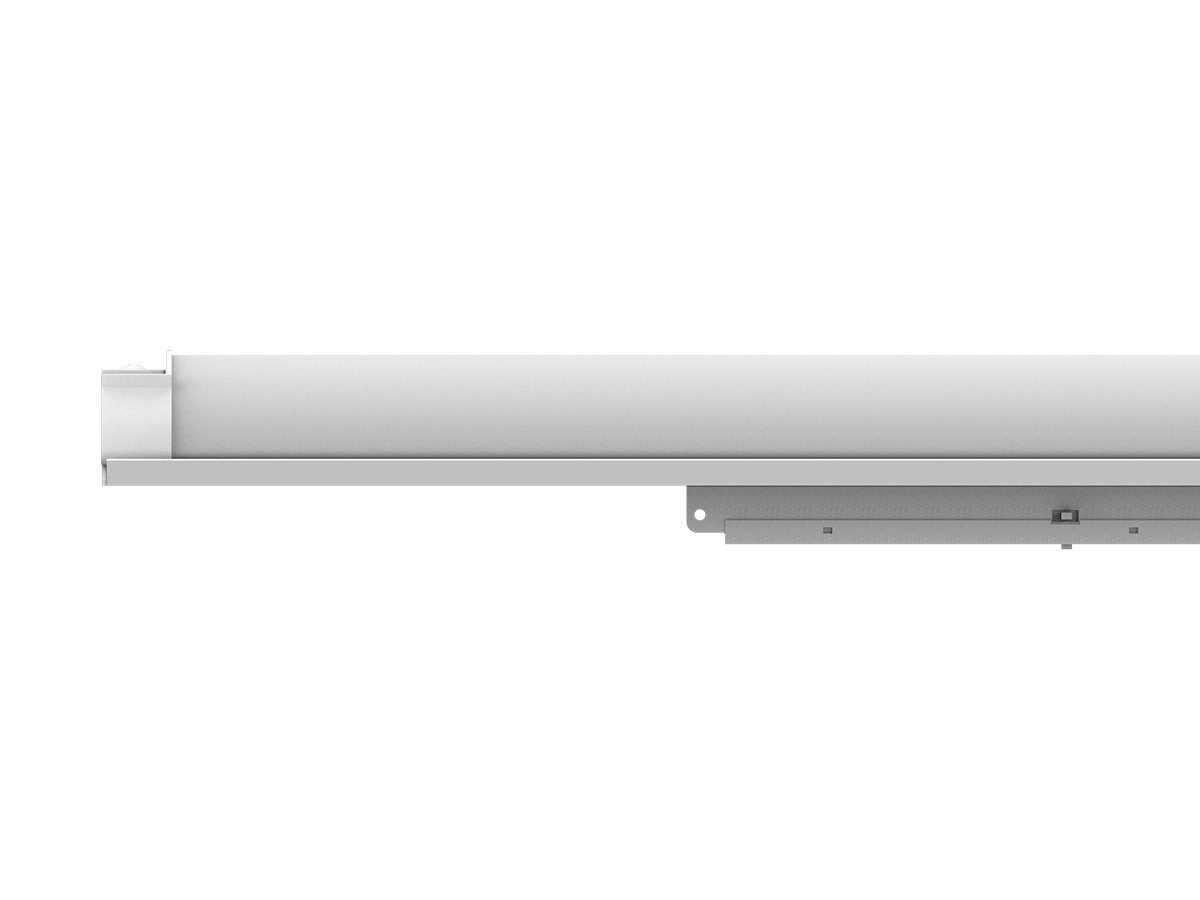

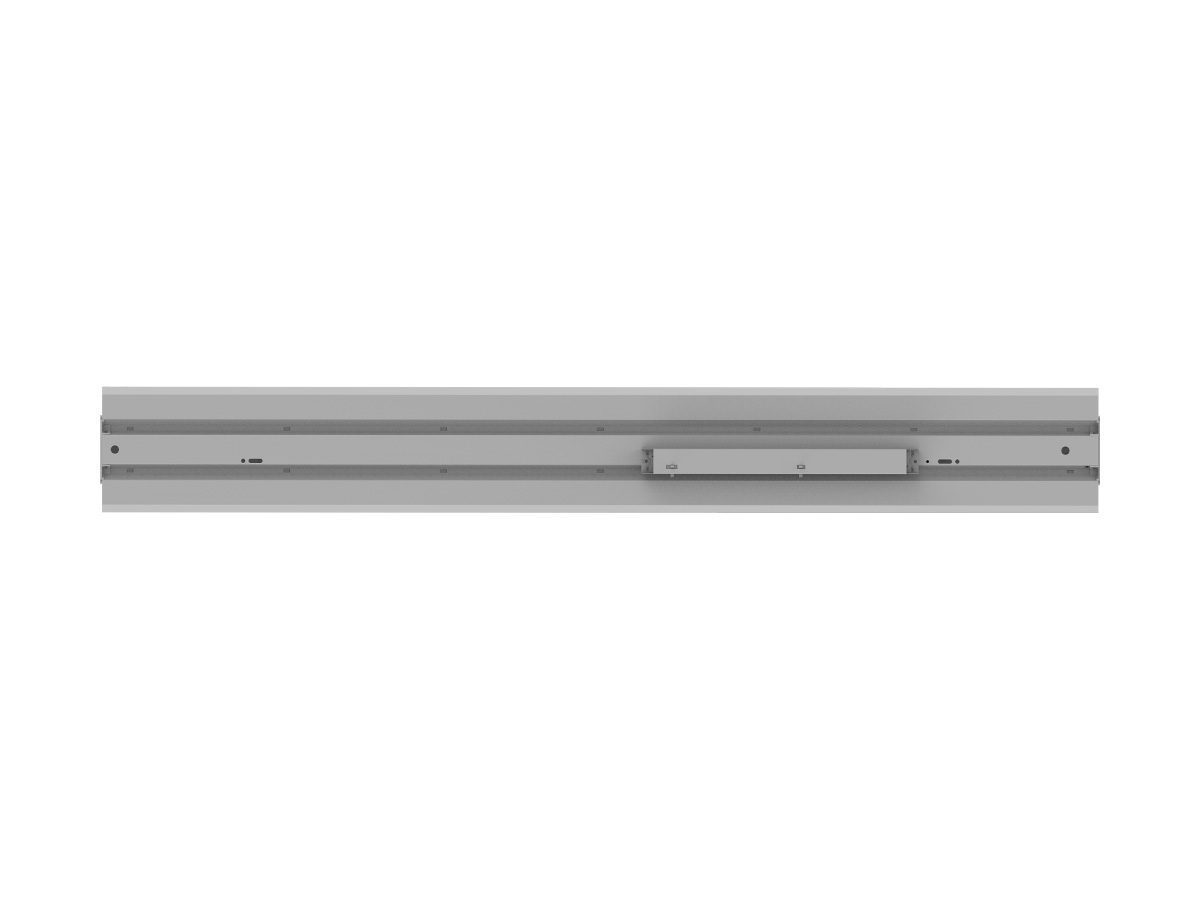

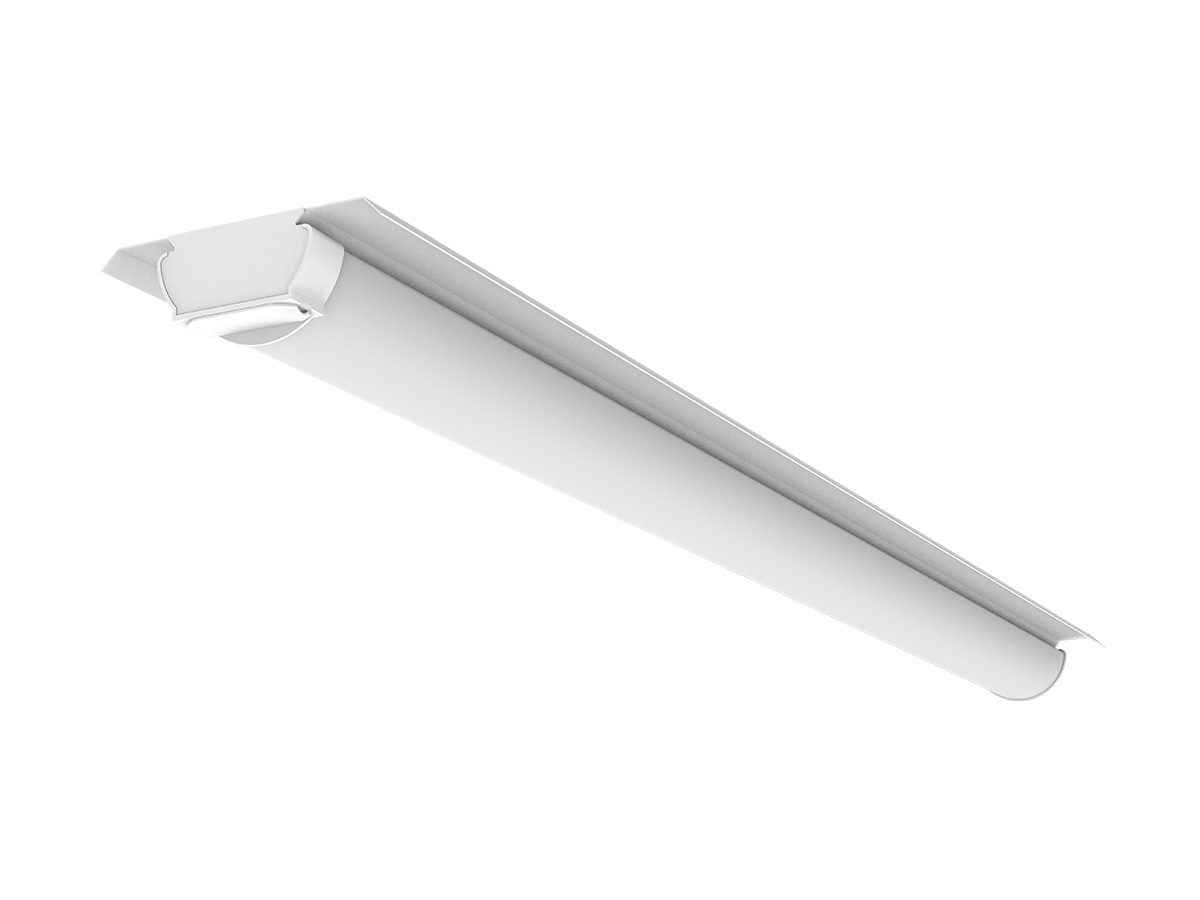

The Ace LED Strip Conversion Kit (ASCK2) is a complete retrofit solution that transforms industrial fluorescent strip lights into modern, high-performance LED fixtures without replacing the existing housing.

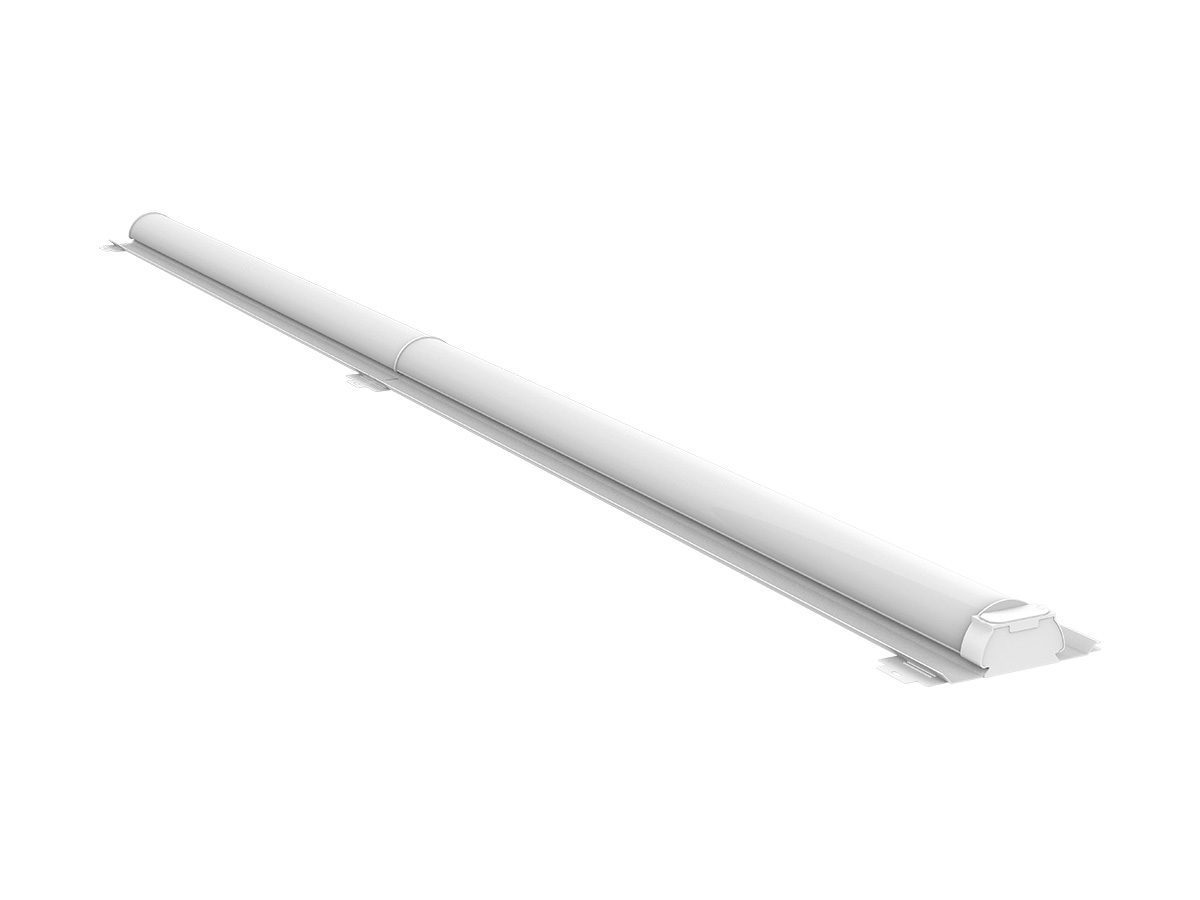

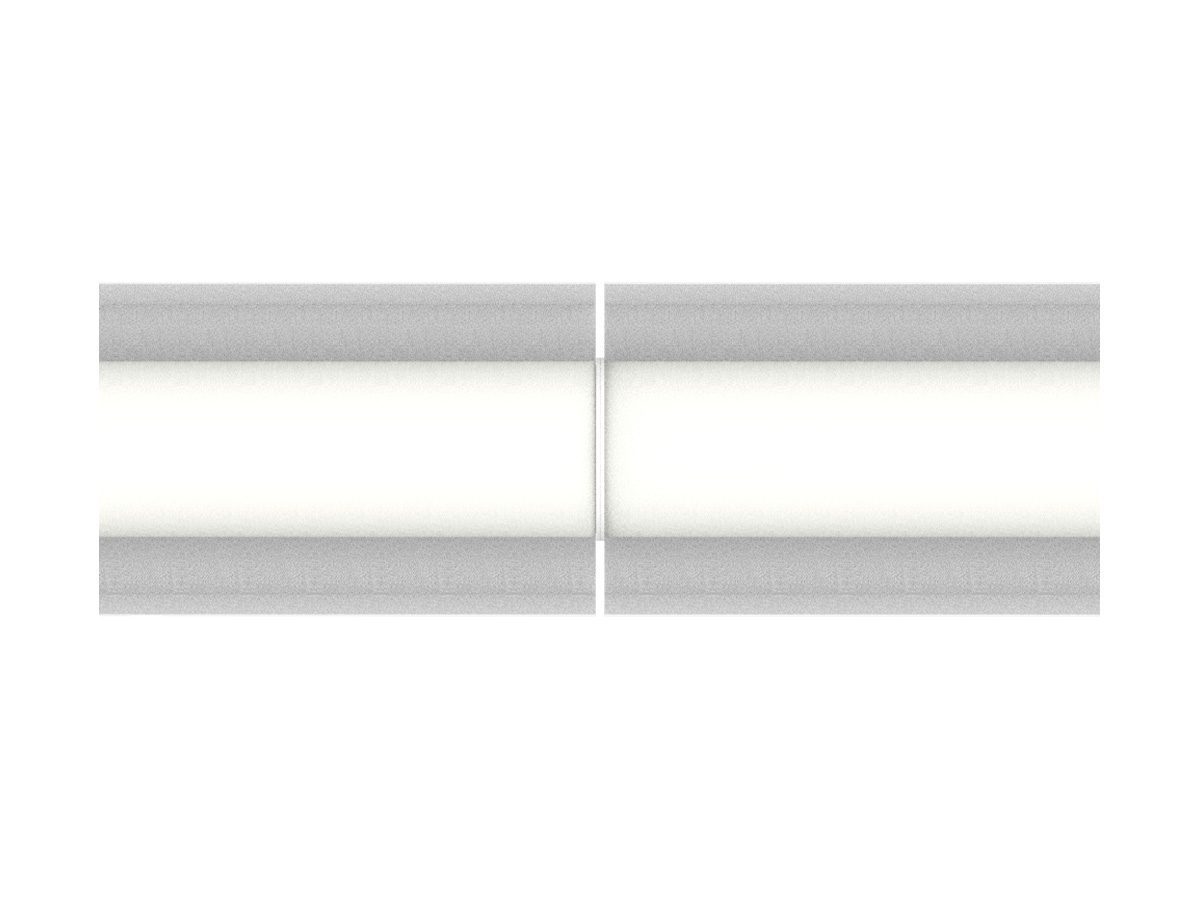

This 4-foot retrofit system includes a channel cover compatible with 4.25-inch and 5.25-inch strip fixtures, mounting brackets, high-efficacy LED modules, and a frosted lens for smooth, uniform illumination. For 8-foot strip fixtures, two ASCK2 units integrate seamlessly to deliver a clean, continuous run of uniform illumination.
Designed for flexibility, the ASCK2 features selectable wattage with a five-position power switch to adjust lumen output and energy use, along with selectable color temperature options of 3500K, 4000K, or 5000K directly on the fixture.
The integrated EZ-Connect™ receptacle allows quick, tool-free installation of sensors or UltraLink wireless controls at any time. The result is an efficient, cost-effective modernization that delivers better light quality, enhanced aesthetics, and long-term performance.
Applications: Automotive Lighting, Commercial Lighting, Industrial Lighting, Office Lighting, Parking Garage Lighting, Warehouse Lighting.
Selectable Wattage
The fixture has a switch with five output power options, allowing to select the desired lumen output and energy consumption.
Selectable CCT
Simply use the switch directly on the fixture to select the desired color temperature for your space: 3500K, 4000K, or 5000K.
EZ-Connect™ Receptacle
The simplest and fastest way to add sensors and UltraLink wireless controls at any time in the field. Snap-in system, no tools or wiring needed.
Fixture Performance
| Size | Selectable Watts | Selectable CCT | Lumen Output | Efficacy | Part Number |
|---|---|---|---|---|---|
| 4ft | 16 | 3500/4000/5000K | 2,400 | 150 | ASCK2-A2-ADJ-04-ADJ-80-FR-LV-RTR-EZ40-10V |
| 4ft | 22 | 3500/4000/5000K | 3,300 | 150 | ASCK2-A2-ADJ-04-ADJ-80-FR-LV-RTR-EZ40-10V |
| 4ft | 26 | 3500/4000/5000K | 3,900 | 150 | ASCK2-A2-ADJ-04-ADJ-80-FR-LV-RTR-EZ40-10V |
| 4ft | 36 | 3500/4000/5000K | 5,400 | 150 | ASCK2-A2-ADJ-04-ADJ-80-FR-LV-RTR-EZ40-10V |
| 4ft | 40 | 3500/4000/5000K | 6,000 | 150 | ASCK2-A2-ADJ-04-ADJ-80-FR-LV-RTR-EZ40-10V |
| 8ft | 40 | 3500/4000/5000K | 6,000 | 150 | ASCK2-A2-ADJ-08-ADJ-80-FR-LV-RTR-EZ40-10V |
| 8ft | 48 | 3500/4000/5000K | 7,200 | 150 | ASCK2-A2-ADJ-08-ADJ-80-FR-LV-RTR-EZ40-10V |
| 8ft | 54 | 3500/4000/5000K | 8,100 | 150 | ASCK2-A2-ADJ-08-ADJ-80-FR-LV-RTR-EZ40-10V |
| 8ft | 66 | 3500/4000/5000K | 9,900 | 150 | ASCK2-A2-ADJ-08-ADJ-80-FR-LV-RTR-EZ40-10V |
| 8ft | 80 | 3500/4000/5000K | 12,000 | 150 | ASCK2-A2-ADJ-08-ADJ-80-FR-LV-RTR-EZ40-10V |
Technical Specs
CONSTRUCTION
ELECTRICAL
OPERATION
OPTICS
MOUNTING
CONTROLS
WARRANTY
LISTINGS & CERTIFICATIONS
CONSTRUCTION
- Housing: Steel.
- Housing Color: White.
- EZ-Connect™ Receptacle: The simplest and fastest way to add sensors and wireless controls at any time on the field. Snap-in system, no tools or wiring needed.
ELECTRICAL
- Power Input: 120-277V (50/60Hz).
- Power Factor: Greater than 0.9.
- Total Harmonic Distortion: Less than 20%.
- Emergency Battery Backup: EMB has 9 watts output, producing ~1,100 lumens for 90 minutes. Sold as an accessory (field installed).
OPERATION
- Environment: For interior applications, dust-resistant, listed for damp locations.
- Ambient Range Operation: -20°C up to 40°C (-4°F up to 104°F).
OPTICS
- CCT: Selectable: 3500K, 4000K, 5000K.
- CRI: 80+ standard.
- Lens: PC diffuser. Frosted. 110° beam angle.
MOUNTING

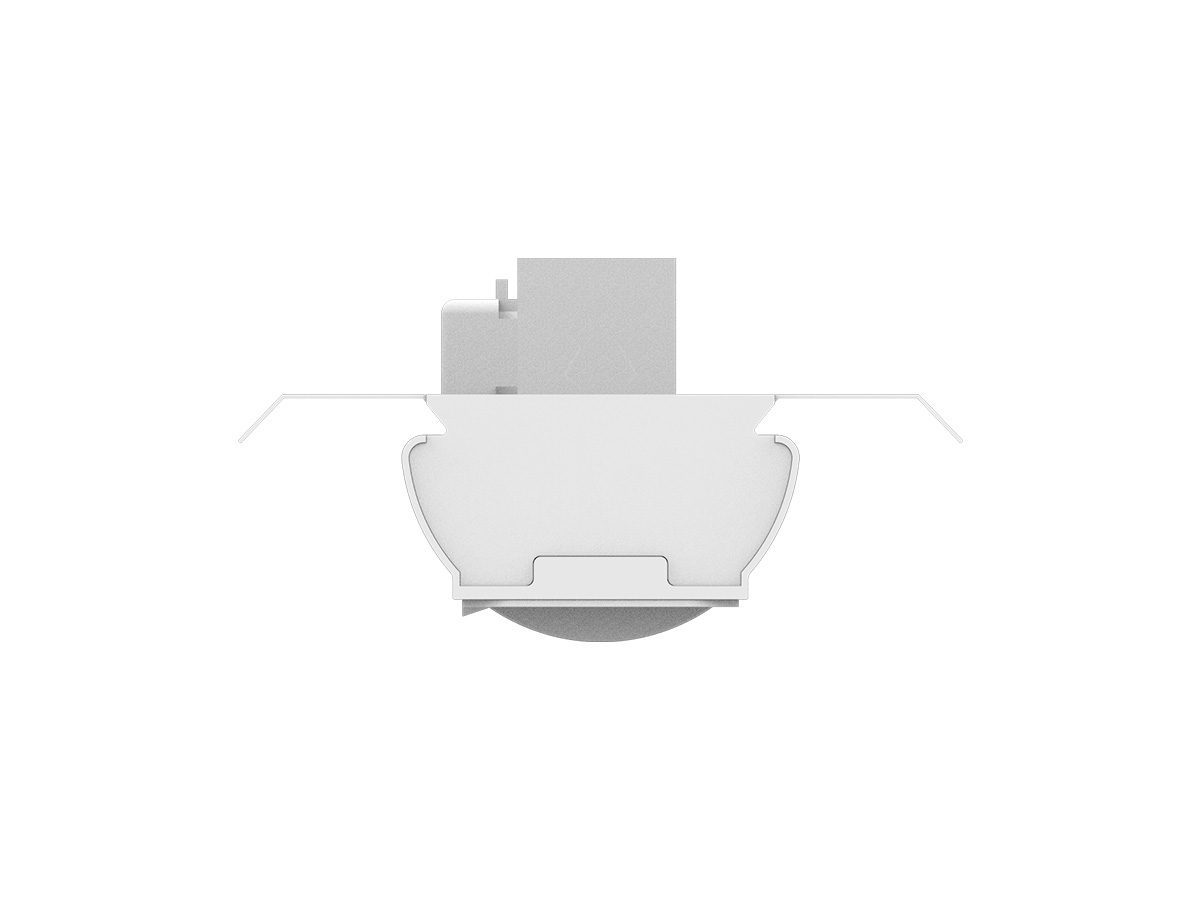

- Conversion Kit: Used to upgrade traditional fluorescent lamps without removing the whole fixture. Works for both 4.25” and 5.25” wide strip fixtures. Includes mounting brackets.
CONTROLS
- Dimming: 0-10V standard. Dim to Off. Dimming range 100% to 5%.
- Occupancy Sensors: PIR sensor, On/Off/Dim. EZ-Connect™ Snap-in system for field installation.
- Networked Lighting Controls: UltraLink and UltraLink+ Wireless Controls with Bluetooth® NLC Mesh technology. EZ-Connect™ Snap-in system for field installation.
WARRANTY
- 5 Year Warranty: The fixture is guaranteed for 5 years free of defects in materials and workmanship, including LEDs and driver. “Defective” is considered if ten percent (10%) or more of the LEDs, per product, are non‐operating LEDs, or color temperature has shifted more than 500° Kelvin within the warranty period. See terms and conditions at https://linmoreled.com/warranty
LISTINGS & CERTIFICATIONS
- ETL listed.
- RoHS compliant.
- DesignLights™ Consortium Premium.
