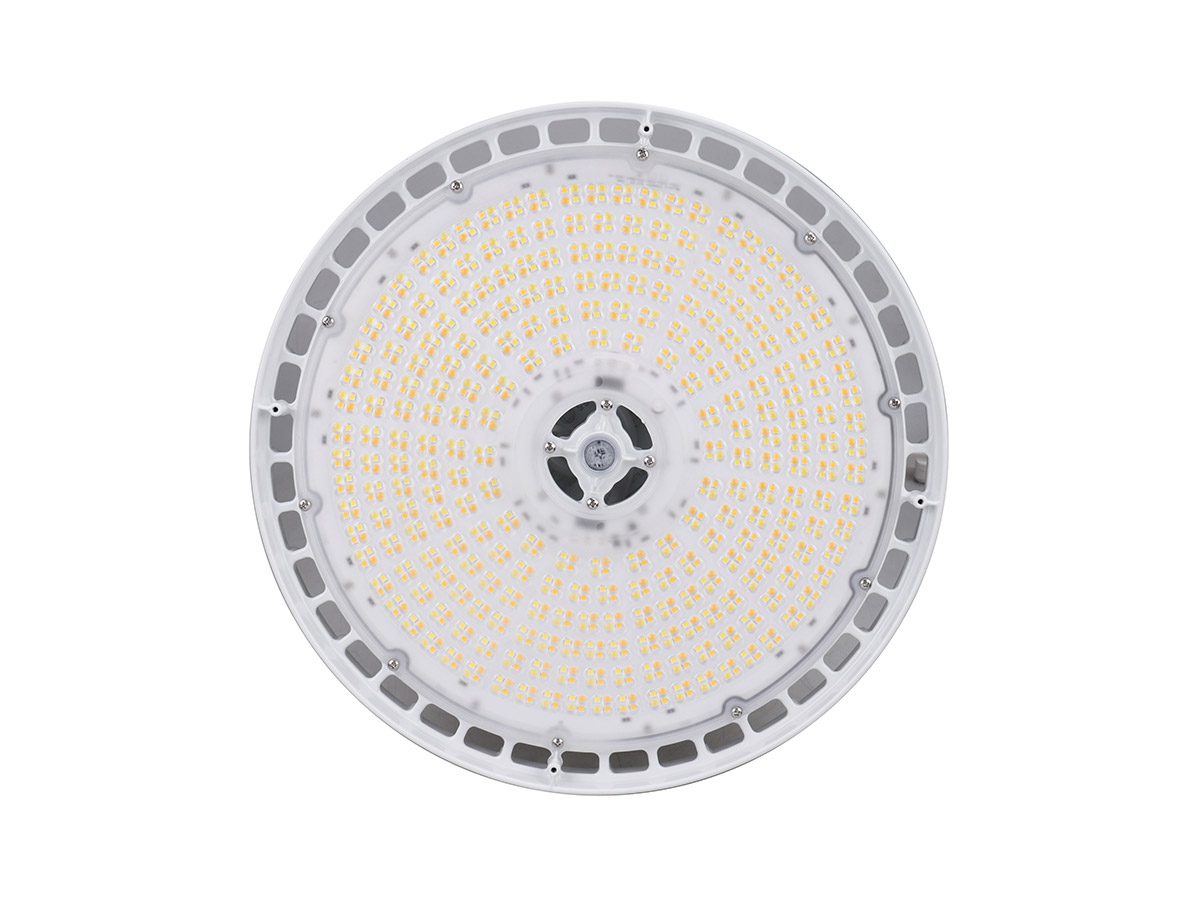

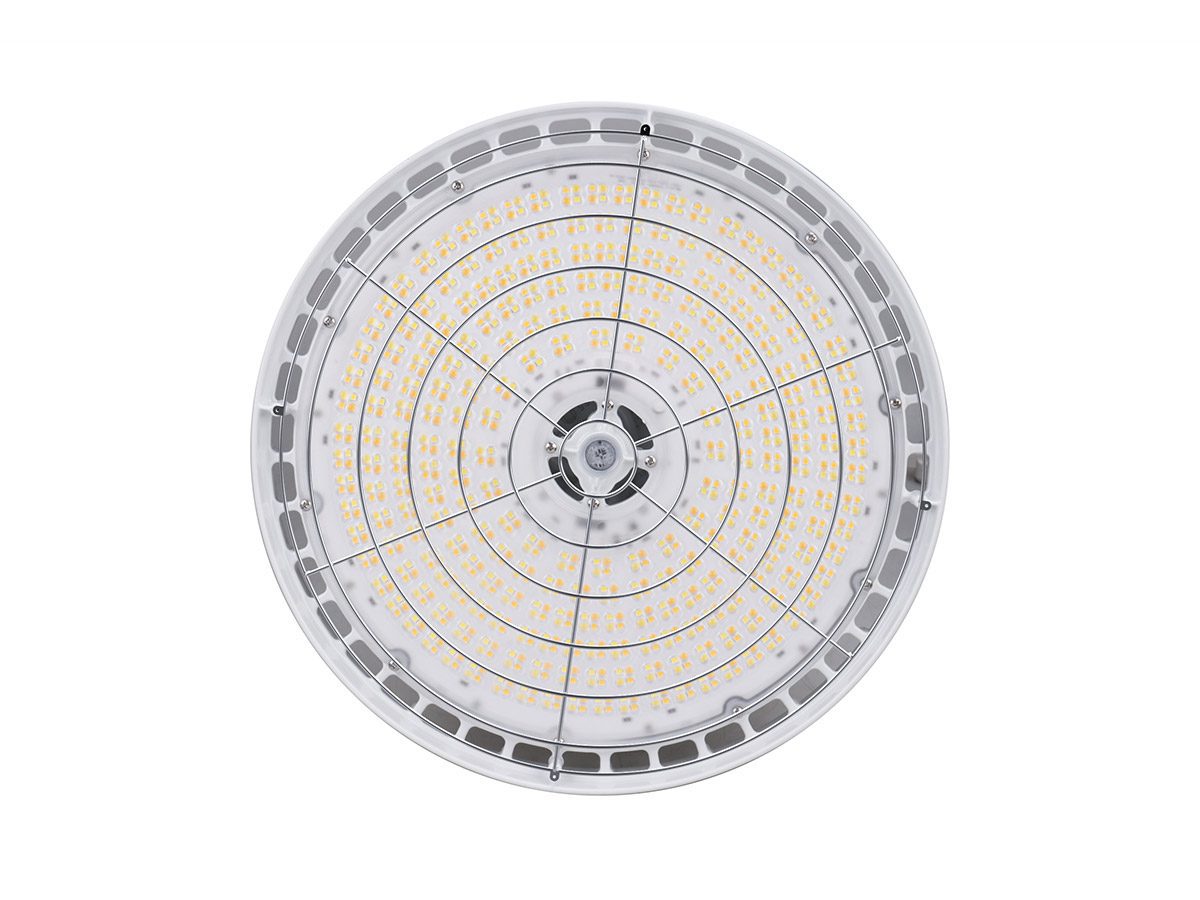

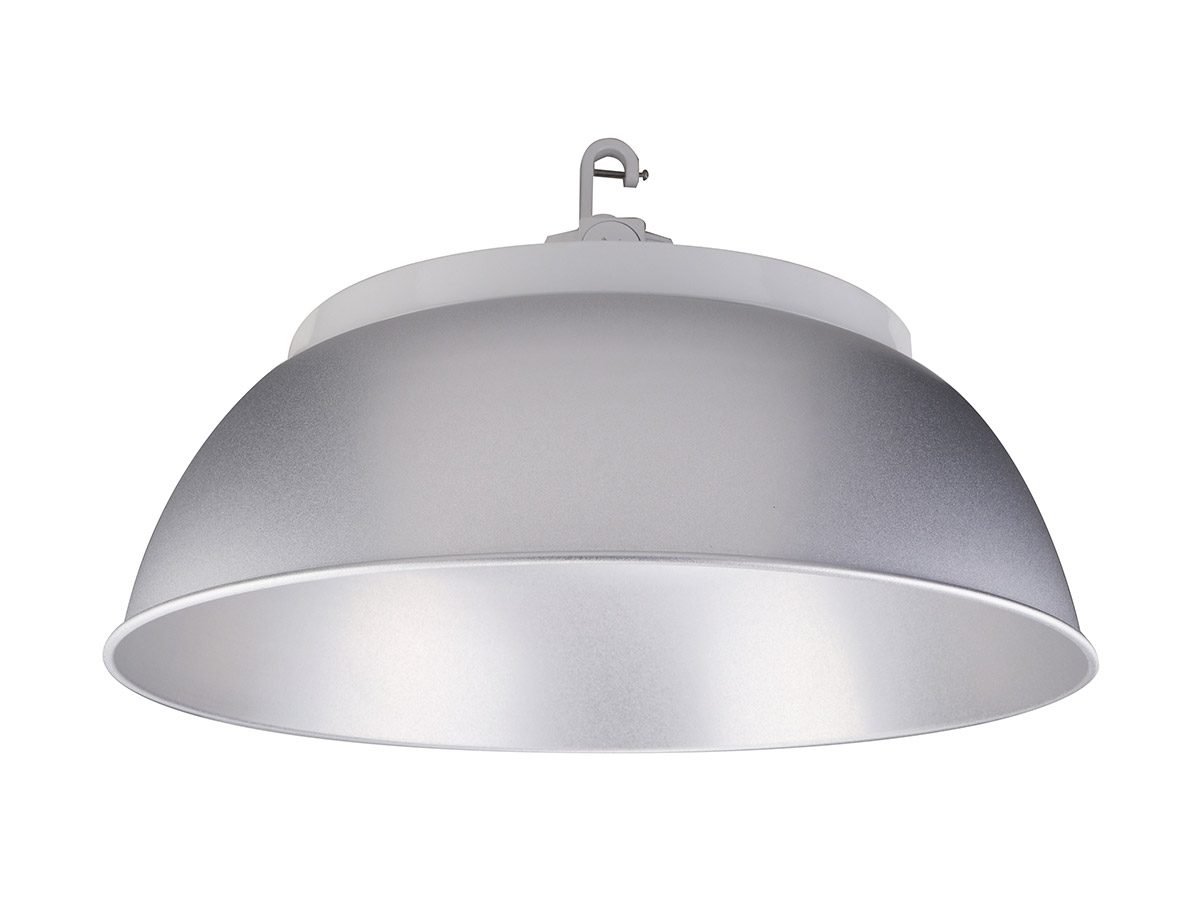

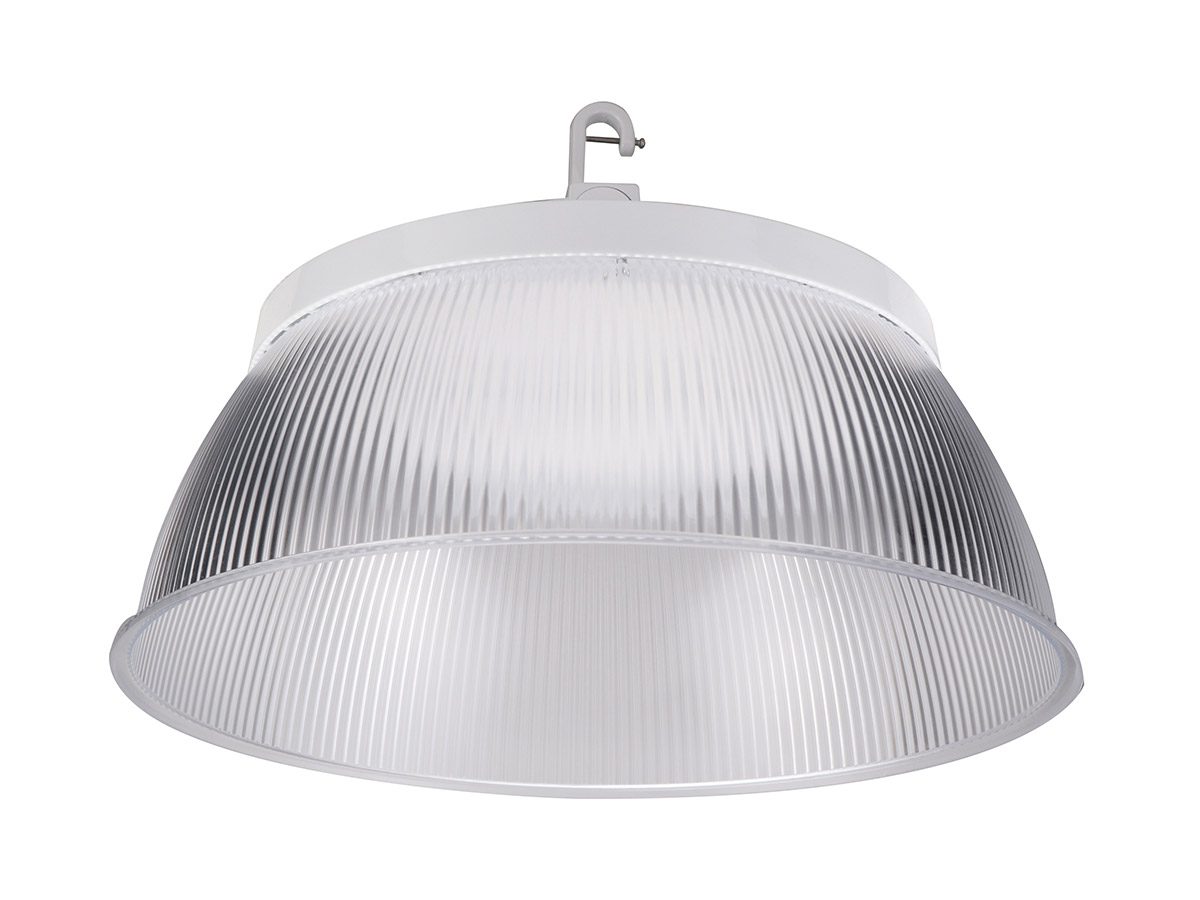

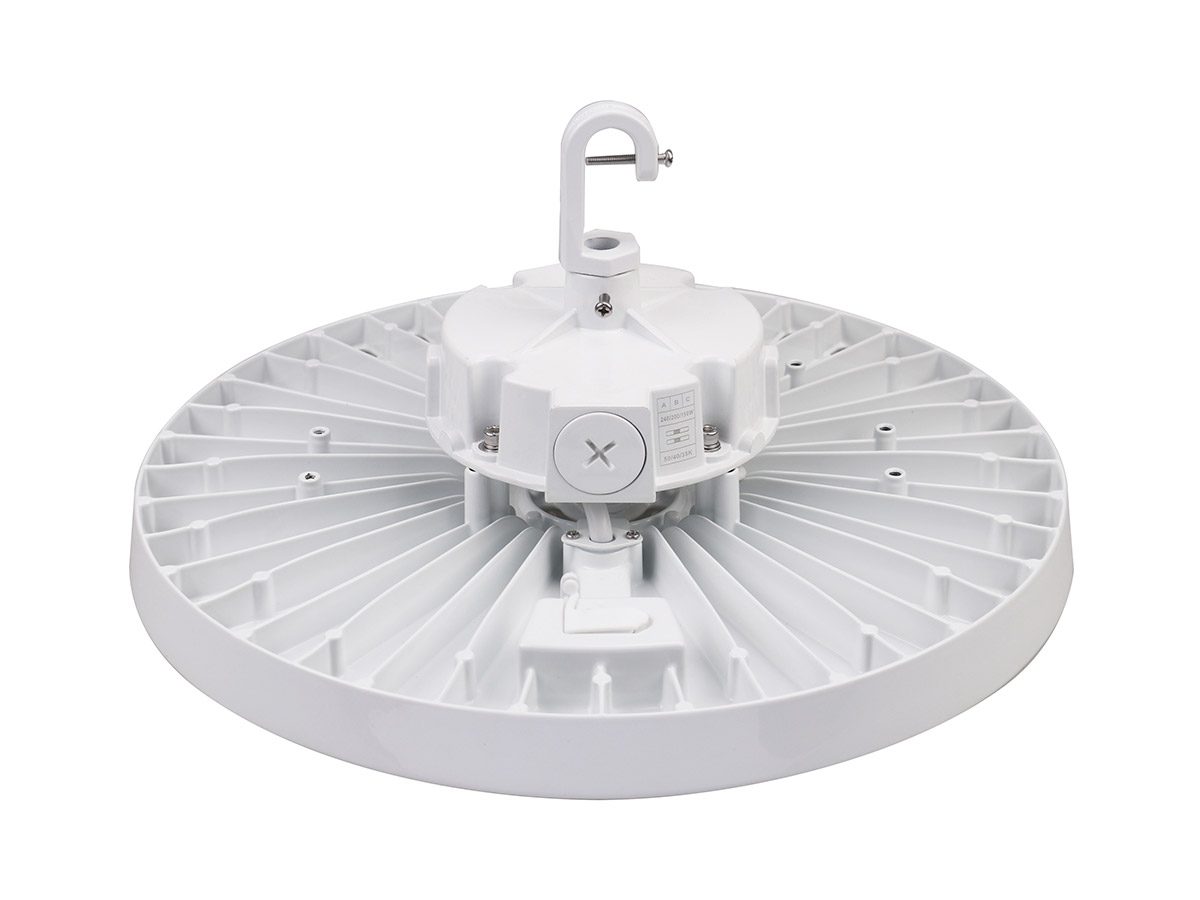

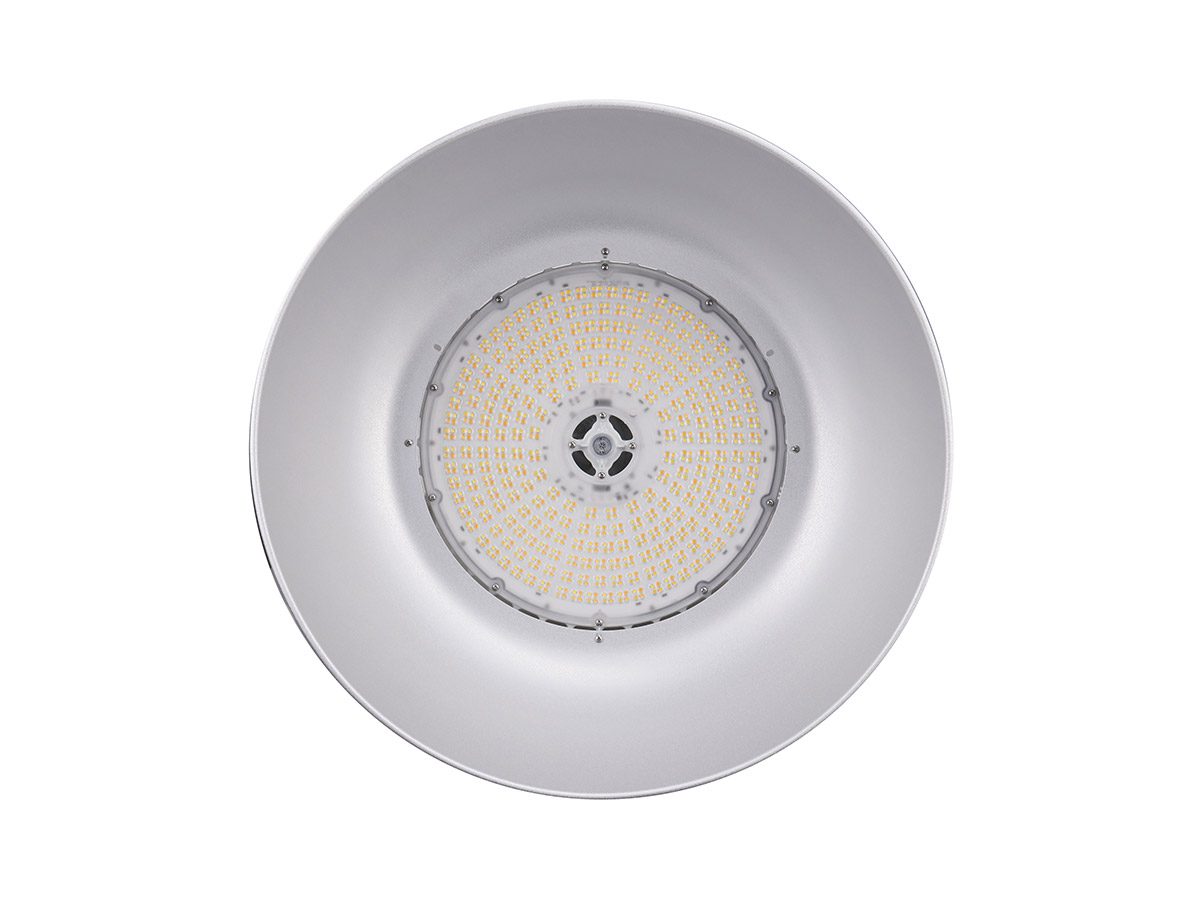

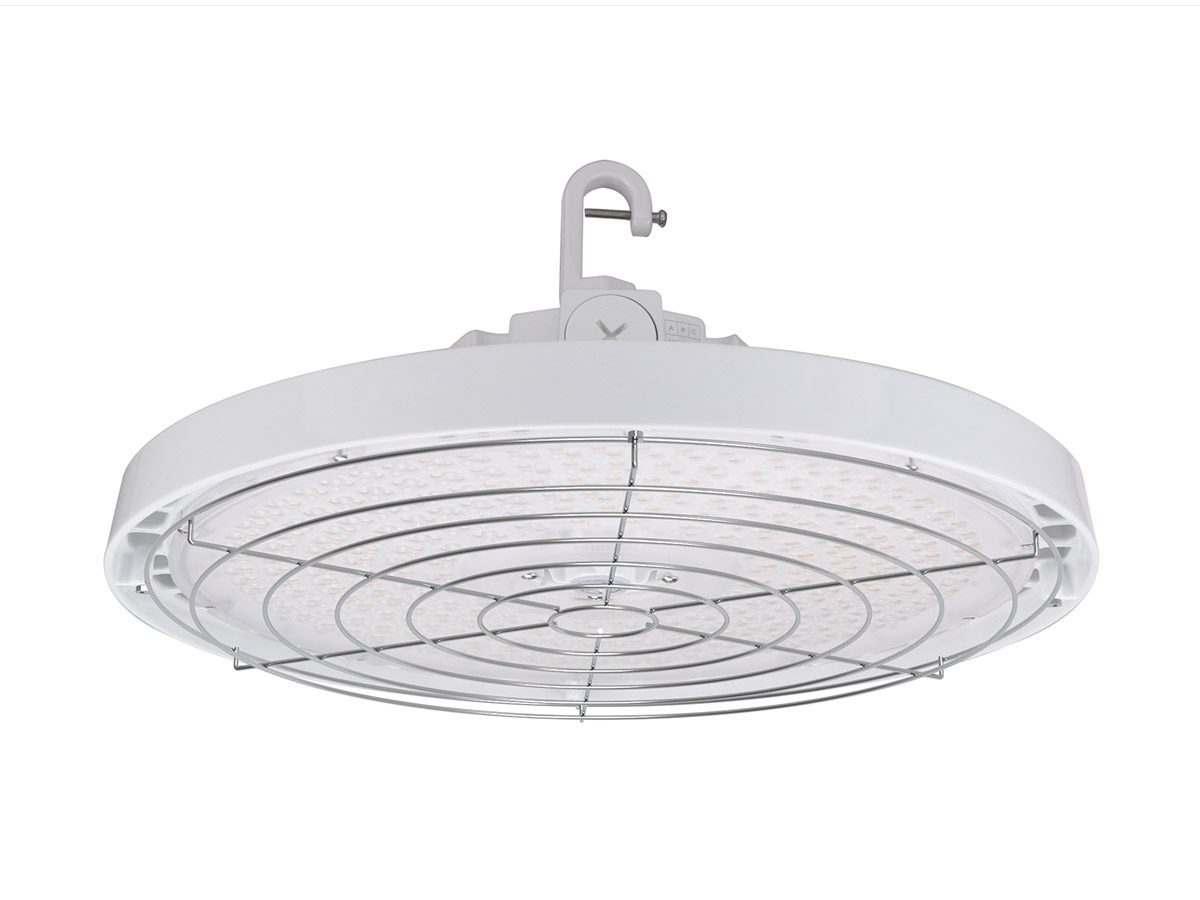

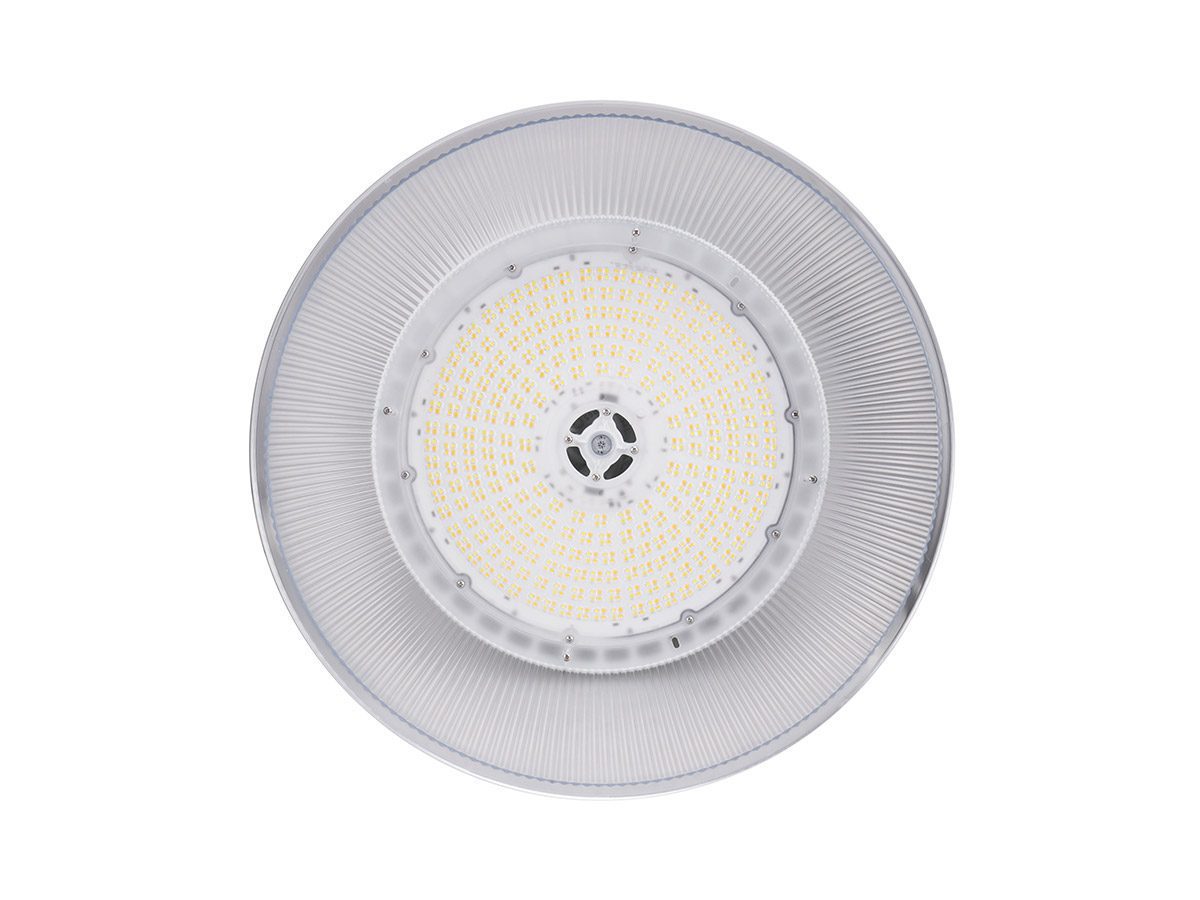

Ace LED Round High Bay (AR1)

Available July 2025

The Ace LED Round High Bay (AR1) is the next generation of high bay lighting designed to adapt to your needs.

Built for commercial and industrial settings, the AR1 features a rugged, IP65-rated housing and operates reliably in ambient temperatures up to 50°C (122°F). It delivers up to 158 lumens per watt, offering exceptional energy savings.

Selectable CCT allows to shift between 3000K, 4000K, and 5000K and selectable wattage allows to balance lumen output and energy savings. A switch allows instant beam angle adjustment with three options, 60°, 80°, and 100°, ensuring an optimized light distribution, whether you’re spotlighting key areas or covering wide open spaces.

The Ace LED Round High Bay combines cutting-edge design and lighting flexibility at an affordable price, making it the smart choice for modern high bay lighting.

Applications: Commercial Lighting, Convention Center Lighting, Hangar Lighting, Industrial Lighting, Warehouse Lighting.

IES Files

Coming Soon

Instructions

Coming Soon

Selectable Wattage

Each fixture has a switch with three output power options, allowing to select the desired lumen output and energy consumption.

Selectable Color Temperature

Simply use the switch directly on the fixture to select the desired color temperature for your space: 3500K, 4000K, or 5000K.

Selectable Beam Angle

A switch allows instant beam angle adjustment, providing three options, 60°, 80°, and 100°, for optimized light distribution and project flexibility.

Technical Specs

CONSTRUCTION
  • Extruded Aluminum Body: Aluminum die-cast.
  • Heavy-Duty Powder Coating: Bronze, white and black standard. Custom color options available.
  • Unified Design: Same modern design as Site Lighter Wall Pack (SLW2) for unified aesthetics.
  • Power Supply Access: Wireway cover allows easy access to driver and wiring for quick maintenance and fixture upgrades in the field.
  • EZ-Connect™ Receptacle: The simplest and fastest way to add sensors and wireless controls at any time on the field. Twist and Lock system, no tools or wiring needed.
ELECTRICAL
  • Power Input: 120-277VAC or 277-480VAC, depending on model.
  • Power Factor: 0.99 typical.
  • Total Harmonic Distortion: <20%.
  • Surge Protection: Standard is 6kV for drivers. Additional surge protection available as an option: SRG20 option is 20kV/20kA, SRGXT option passed ANSI C136.2-2018 surge test for extreme level surge conditions (40 strikes at 20kV/20kA for LV and 20kV/18kA for HV).
OPERATION
  • Environment: IP65 rated for exterior applications.
  • Ambient Range Operation: -40°C up to 55°C (-40°F up to 130°F), except XXL housing size which can withstand up to 50°C (122°F).
OPTICS
  • CCT: 4000K and 5000K standard. 3500K, DarkSky options (2200K, 2700K, 3000K) available upon request (extended lead time).
  • CRI: >70 standard, other CRI available (extended lead time).
  • Lenses: Polycarbonate lens with our proprietary HiOptiX™ technology, designed for superior uniformity and illumination efficiency by delivering the light precisely where it is needed. Optics available:
    – Type 2, Type 3, Type 4, Type 5.
    – Front Row: Automotive (AFR), Left (FRL), Right (FRR).
    – Flood: 35 degrees (F35), 60 degrees (F60).
    – Forward Throw Medium (TFTM).
CONTROLS
  • Dimming: 0-10V standard. Dimming range 100% to 10% and then Off.
  • Photocell Sensor: On/Off based on ambient light. EZ-Connect™ Twist Lock system for field installation.
  • Occupancy Sensors: PIR and Microwave occupancy sensors, On/Off/Dim. EZ-Connect™ Twist Lock system for field installation.
  • Networked Lighting Controls: UltraLink Wireless Controls with Bluetooth® NLC Mesh technology. EZ-Connect™ Twist Lock system for field installation.
WARRANTY
  • 10 Year Performance Warranty: Fixture is guaranteed for 10 years, including lumen maintenance (L70), color temperature, and LED driver. “Defective” is considered if ten percent (10%) or more of the LEDs, per product, are non‐operating LEDs, total lumen depreciation exceeds 30% (L70), or color temperature has shifted more than 500° Kelvin within the warranty period. See terms and conditions at https://linmoreled.com/warranty
LISTINGS & CERTIFICATIONS
  • Intertek UL 1598.
  • IP65.
  • RoHS Compliant.
  • BAA/TAA Compliant.
  • FCC CFR 47 Part 15.
  • ANSI C136.2-2018 Extreme Surge Exposure Level for Roadway and Area Lighting Equipment.
  • ANSI C136.31-2023 5G Vibration Rated for Roadway and Area Lighting Equipment.
  • DarkSky Compliant.
  • DesignLights™ Consortium Premium.
