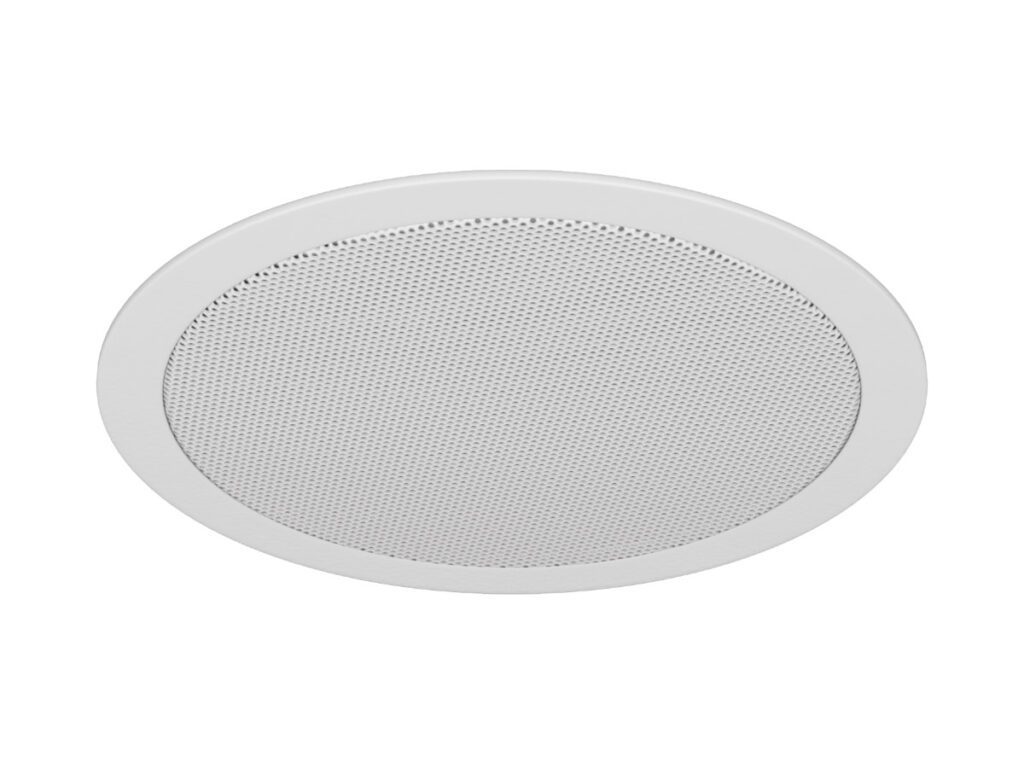

The ULPLUS-SPK is a Bluetooth NLC Wireless Speaker designed for sound masking, paging and background audio in office and commercial environments.
This 6.5” full-range ceiling speaker features a dedicated woofer and tweeter for clear, balanced sound. With a power rating of 40W RMS (80W max) and an extended frequency response from 45 to 20,000 Hz, it delivers rich and natural audio.
It connects via Bluetooth and can be accessed with the UltraLink+ web portal or mobile app for setup and configuration.
Product Information
TECHNICAL SPECS
FEATURES
APPLICATIONS
LISTINGS
TECHNICAL SPECS
- Color: White.
- Speaker Configuration: 2-way, one poly woofer with butyl rubber surrounds and one 3/4” pivoting dome tweeter. Driver Size: 6.5” diameter.
- Power: 40W RMS (80 Max). Nominal
- Impedance: 8 Ohm.
- Frequency Response: 45 – 20,000 Hz.
- Sound Pressure Level (SPL): 91 dB.
- Mounting: Recessed ceiling.
- Power Supply: Requires connection to an external amplifier or sound masking generator (sold separately).
- Audio Coverage Area: Up to 254 sq. ft. (standard 8’ ceiling).
- Speaker Cut Out Dimensions:
– Diameter cutout: 7-1/4”.
– Height: 2-7/8”.
– Overall diameter: 8-3/8” (including frame). - Max Bluetooth Range: 200ft (60m) line of sight.
Range is highly dependent on the integration of fixtures, environment, and conditions. It is recommended to conduct testing for range accuracy.
FEATURES
- Programmable settings can be set through the UltraLink+ mobile app.
- Advanced functionality available with the optional UltraLink+ Dashboard.
- Suitable for Indoor use.
- Mobile app available for iOS and Android devices.
APPLICATIONS
- Sound Masking.
- Background Music.
- Paging.
- Conference Call.
LISTINGS
- FCC
- RoHS
