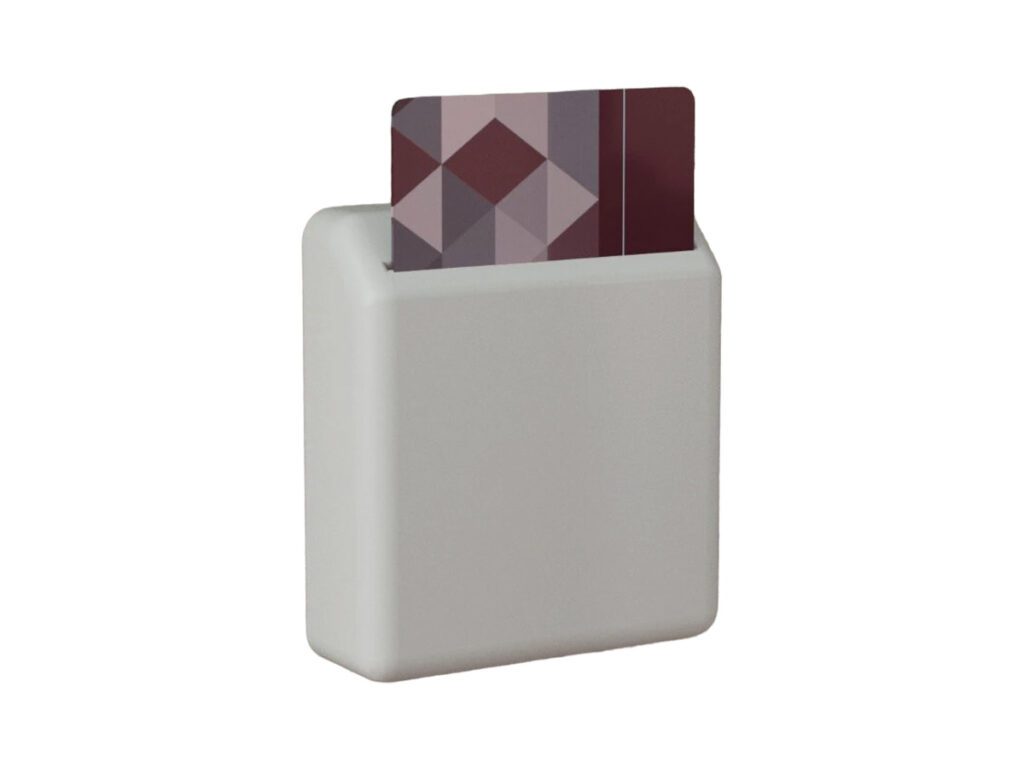

The ULPLUS-KEY is a Bluetooth NLC Wireless Keycard Access Control.
This battery-powered key card system automates room settings by activating lights, HVAC, curtains, and more when a guest inserts their card upon entry.
When the card is removed, the system deactivates these features, optionally with a delay, to optimize energy use. Its wireless design enables easy installation even in challenging environments like historical buildings or glass partitions.
It connects via Bluetooth and can be accessed with the UltraLink+ web portal or mobile app for setup and configuration.
Product Information
TECHNICAL SPECS
FEATURES
LISTINGS
WORKS WITH
TECHNICAL SPECS
- Color: White.
- Dimensions: 2.5” x 2.7” x 0.8” (63 x 69 x 20 mm).
- Recommended Card Size: 2.125” x 3.3” (55 x 85 mm). Cards not included.
- Mounting: Surface Mounted with Screws or Adhesive Tape.
- Battery Model: CR2477.
- Battery Life: 5 years.
- Max Bluetooth Range: 200ft (60m) line of sight.
Range is highly dependent on the integration of fixtures, environment, and conditions. It is recommended to conduct testing for range accuracy.
FEATURES
- When the guest enters his/her room, the insertion of the key into the slot activates whichever is the intended effect. From the simple powering of the entire room with a BT relay, to the most sophisticated welcome scene including the gradual turning ON of the lights, opening the motorized curtains, HVAC at a specific setting, subtle accents of music and more.
- When the guest leaves the room and takes the key with him/her, with or without a set delay, the vacant room settings become effective.
- Its wireless technology allows for installations that would be extremely difficult or impossible, such as historical buildings, glass walls, furniture and thin partitions.
- Provides convenient control of lighting and a wide variety of electric loads, activating them when a standard key card is inserted and deactivating with or without a delay when the card is removed.
- Suitable for Indoor use.
- Mobile app available for iOS and Android devices.
LISTINGS
- FCC
- UL
WORKS WITH
UltraLink+ Controls.
